Mac Plus – User and Installation Manual

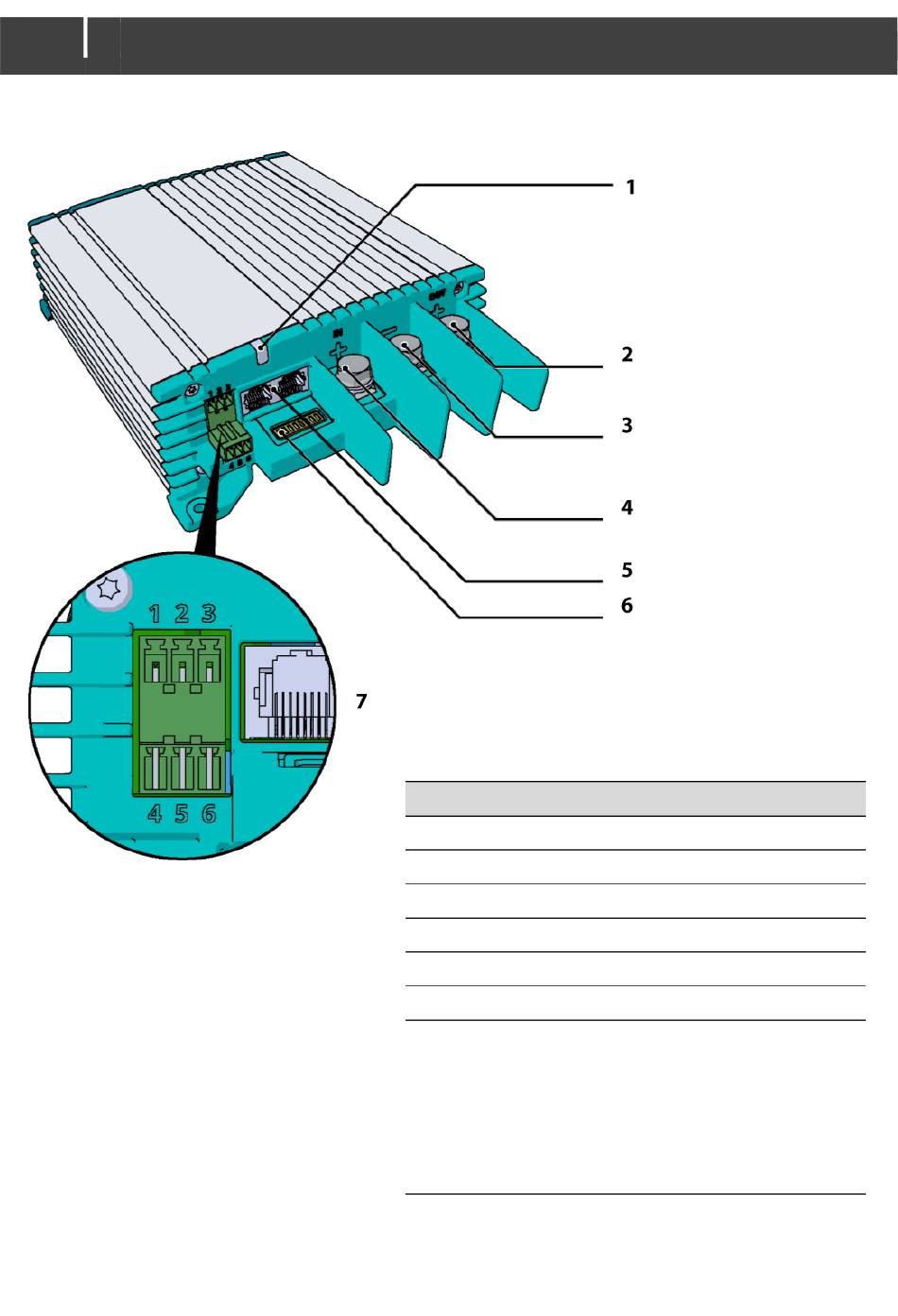

Front panel
Front panel
1
Status LED
2
+ Output
3
Ground
4
+ Input
5
MasterBus/CZone connection (2x)
6
DIP switches
7
Accessories connector
Pin 1: + battery voltage sense input
Pin 2: - battery voltage sense input
Pin 3: not used
Pin 4: remote switch input
Pin 5-6: battery temperature sensor input
