UltraFlo ® 2000 SERIES
Ultrasonic Flow Meter
Display & User Menu
Flowmeter is equipped with a display to visualize actual measurement values and to change parameters of the flow meter. Menu
navigation and parameter changes are controlled by the four keys on the keypad.
Press the [Set] key to display the main menu. Different menu options can be selected by using the two arrow keys.
To enter e.g. analog limits "Analog output - Upper limit" use the arrow
confirm. To switch back to the last menu level press the [Esc]
prompted to enter a password. Password protection is used to ensure changes to values or configurations are done by authorized
personnel.
The default password for Flowmeter is 41414. The password can be changed with Programmtool. The user level will remain active for 5
minutes after the last press on any button.
The Password should only be shared with personnel authorized to make changes to setting.
NOTE : Always the first parameter of the menu appears in the display. This need not be the adjusted enabled parameter. The enabled
parameter appears inverted and possibly visible by scrolling.
NOTE : Functions marked with asterisk (*) are only available for the Flowmeter 8-pin version. Flowmeter without user display supports
the same functions as the display-version. The display and programming unit Programmtool is needed to change configurations of
Flowmeter without user display.
0% 50%
Flow
[GPM]
400.0
Total [GAL]
5496

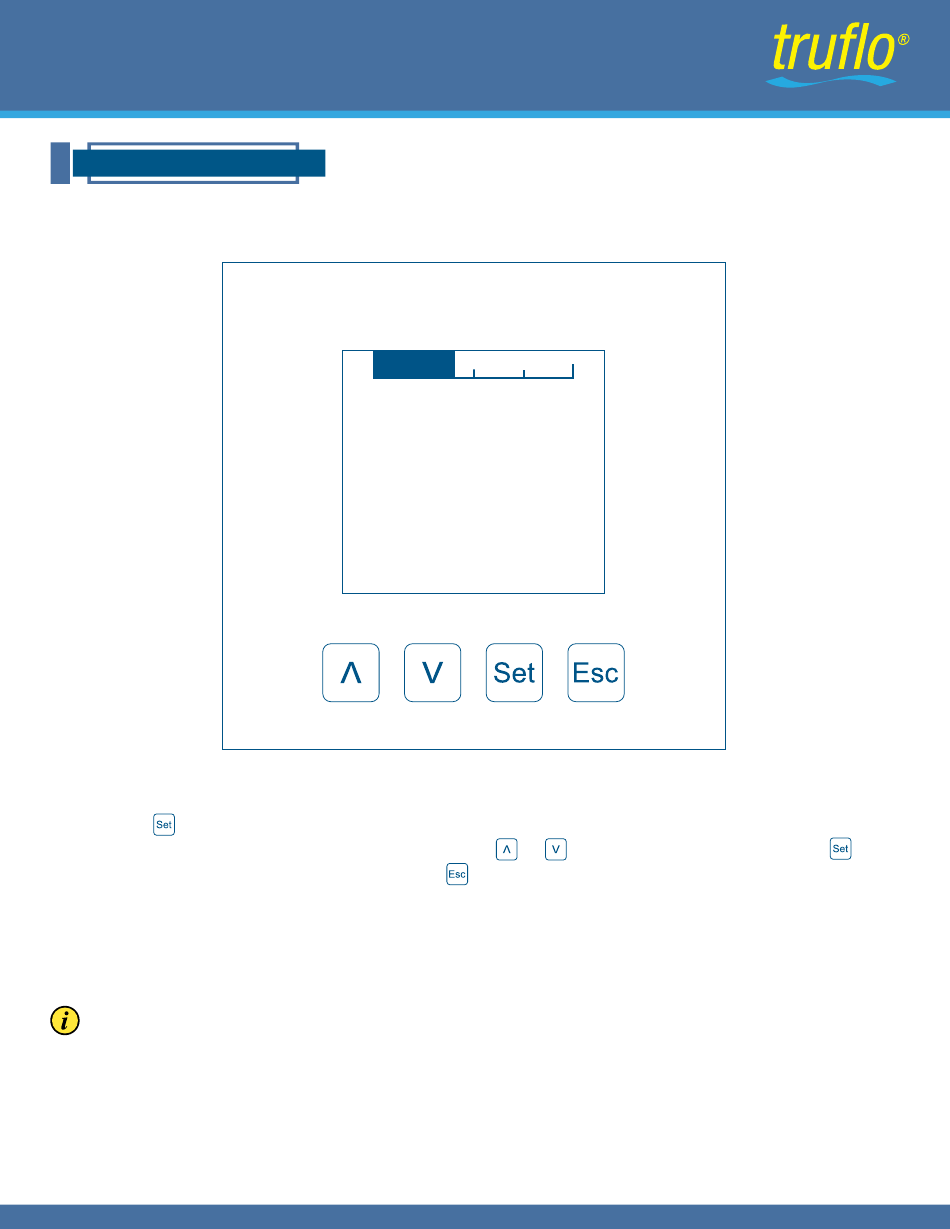

Fig. 9: Operating with the key pad
or
key. As soon as the operator tries to change values the user will be
www.iconprocon.com | sales@iconprocon.com | 905.469.9283
100%
keys to change values and press [Set] key to
