UltraFlo ® 2000 SERIES
Ultrasonic Flow Meter

Commissioning

NOTE : If Flowmeter is used for a fluid other than water the "basic trim" has to be carried out during commissioning. Therefor the device
has absolutely be filled with medium.
The basic trim can be done on the device display (alternatively Programmtool). During the adjustment the medium may not flow as it
affects the function
Operation
If Flowmeter is used as volume flowmeter for water or water-like liquids, it will not require on-site calibration. Parameters for water are
calibrated at the factory. Notwithstanding the Flowmeter may also be supplied with customized settings. The coordination must be done
at time of purchase order.
NOTE : If necessary, e.g. if viscosity and/or speed of sound deviate significantly from water, the pre-set parameters can be adjusted via
Programmtool. It is always necessary to adjust the manufacturer pre-set parameters when using the Flowmeter as a dosing device
according to section 3.2 (Dosing 1. Flowmeter as a dosing device). Adjusting the manufacturer pre-set parameters requires
Programmtool.
The following parameters may be changed
to settings suitable for the individual
conditions: for 5-pin version
Digital output Q1, function and behavior
Analog output QA, function and behavior
Flow range, for which shall apply 4...20 mA
Pulse value
Creeping suppression
Optimization of measurement curve with up to
8 interpolation values (medium matrix)
The following parameters may be changed
to settings suitable for the individual
conditions: for 8-pin version
Digital output Q1, function and behavior
Digital output Q2, function and behavior
Digital Input, function and behavior
Analog output QA, function and behavior
Flow range, for which shall apply 4-20 mA
Pulse value
Creeping suppression
Optimization of measurement curve with up to
8 interpolation values (medium matrix)
®
Also reference the UltraFlo operating instructions
®

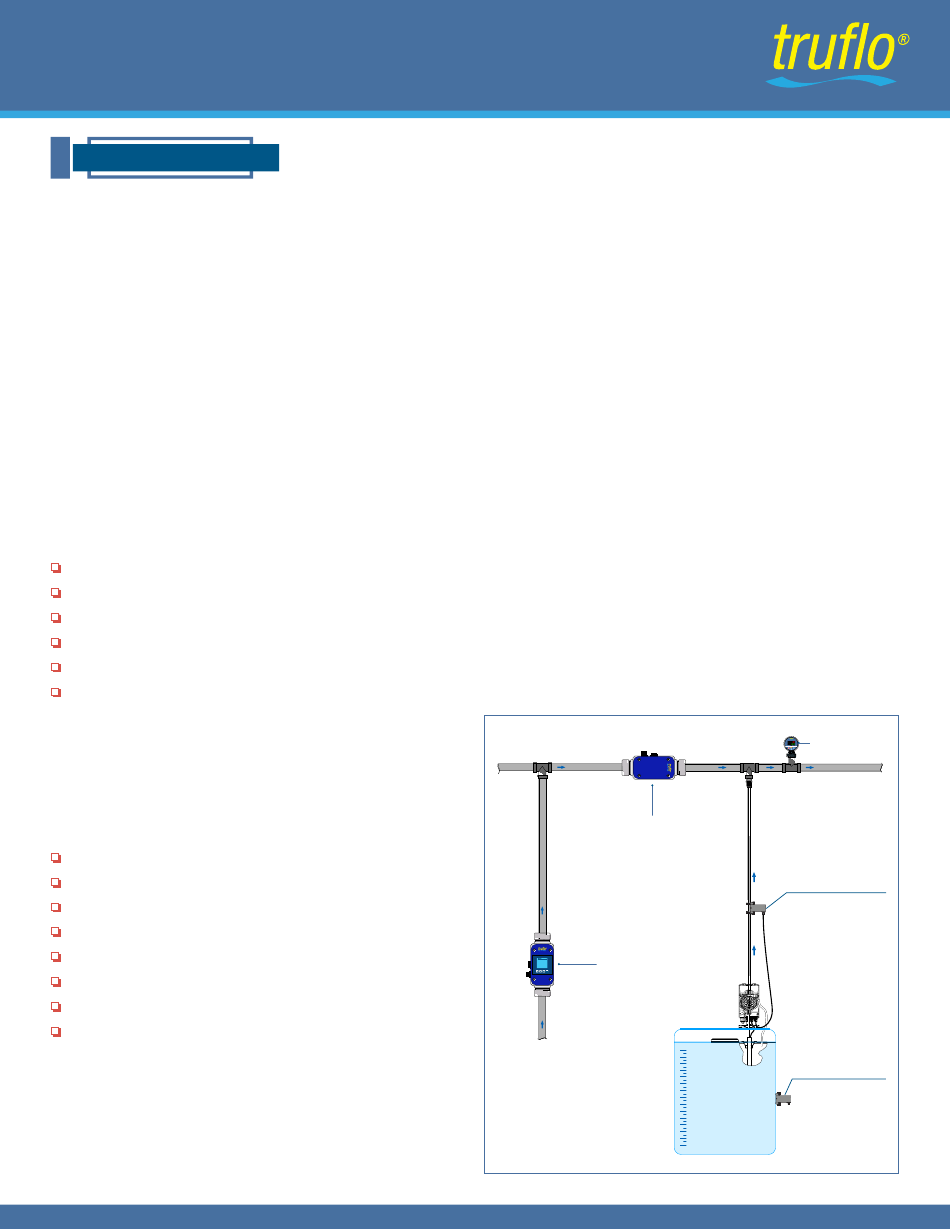

UltraFlo 2000
(Blind Display Option)
Ultrasonic
Flow Meter
®
UltraFlo 2000
Ultrasonic
0% 50% 100%
Flow [GPM]
400.0
Total [GAL]
5496
Flow Meter
Chemical Tank
www.iconprocon.com | sales@iconprocon.com | 905.469.9283
TI3B Series
TIP Series
OP1 FTM OP2 GPM
NC-25 Flow Sensor
Flow / No Flow
NC-30 Sensor
Liquid Level
Sensing through
Plastic Wall
