Description
The 4200-TRX-X Triaxial Cable Assembly consists of a standard triaxial cable terminated with a standard 3-slot
male triaxial connector on each end.
You can use this cable assembly for connections such as:
Connecting a 4200-PA Preamplifier in the 4200-SCS or 4200A-SCS Parameter Analyzer to the device under
test (DUT).
Connecting the 4200A-SCS Parameter Analyzer to the 4200A-CVIV Multi-Switch (4200-TRX-0.75).
Connecting to the FORCE or SENSE terminal on the 4200-SCS or 4200A-SCS ground unit.
One end connects to the FORCE connector on the 4200-PA installed in the system. The other end connects to
the test fixture or probe station holding the DUT.
The 4200-TRX-X is available in different lengths. The -X in the model number represents the cable length in
meters (see next table).
Cable lengths
Model number
Cable length (m)
4200-TRX-0.3
0.3
4200-TRX-0.75
0.75
4200-TRX-1
1.0
4200-TRX-2
2.0
4200-TRX-3
3.0
The item shipped may vary from the item in the picture
PA-702 Rev. C July 2023
Model 4200-TRX-X Triaxial Cable Assembly
Cable length (ft)
1
2.5
3.2
6.5
9.8

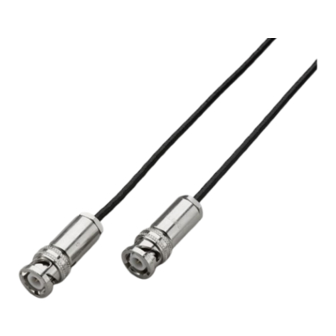

Figure 1: Model 4200-TRX-X cable
*PPA-702C*
Instruction Sheet
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix KEITHLEY 4200-TRX-X Series
Summary of Contents for Tektronix KEITHLEY 4200-TRX-X Series

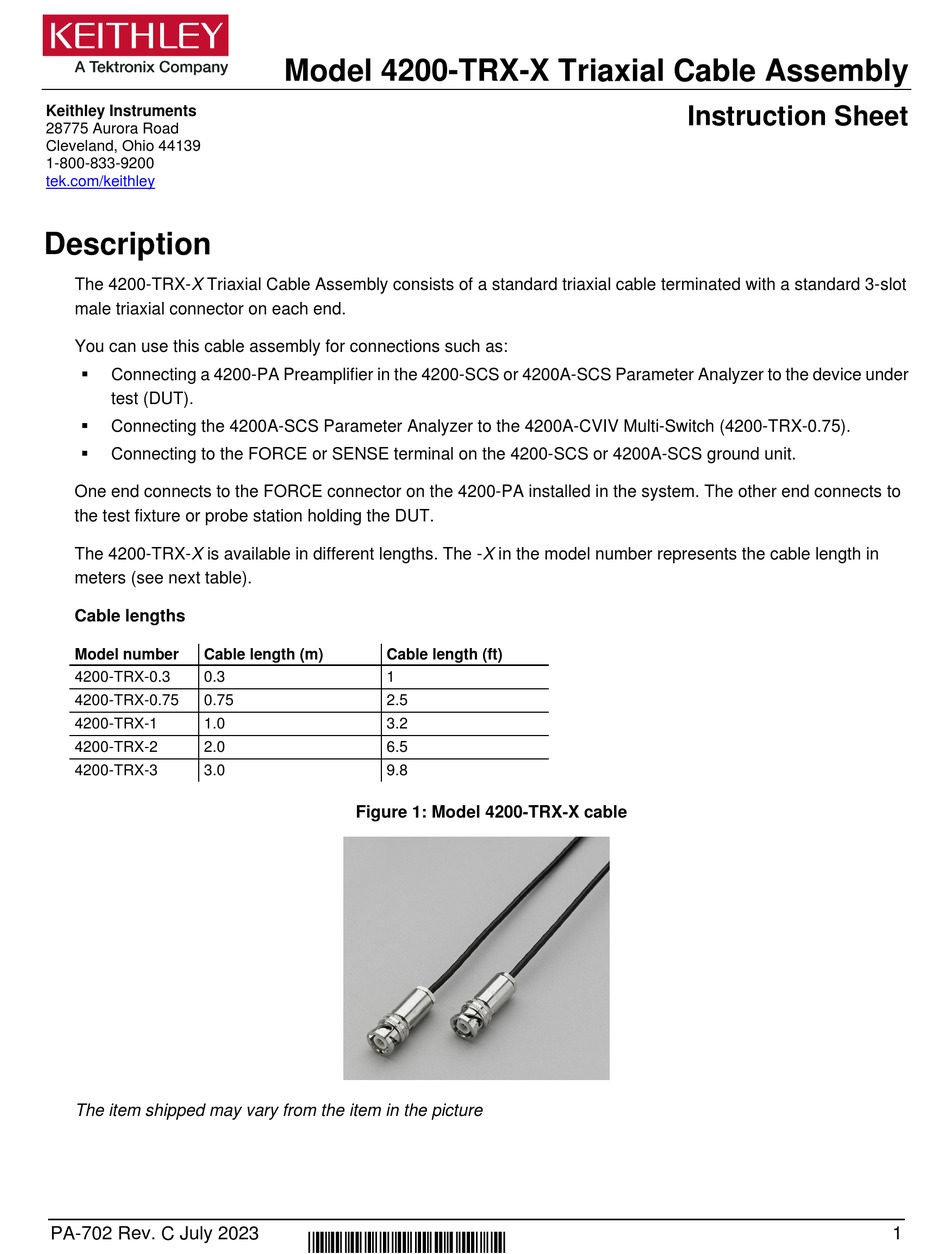

- Page 1 Model 4200-TRX-X Triaxial Cable Assembly Keithley Instruments Instruction Sheet 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The 4200-TRX-X Triaxial Cable Assembly consists of a standard triaxial cable terminated with a standard 3-slot male triaxial connector on each end. You can use this cable assembly for connections such as: ...
