Overview

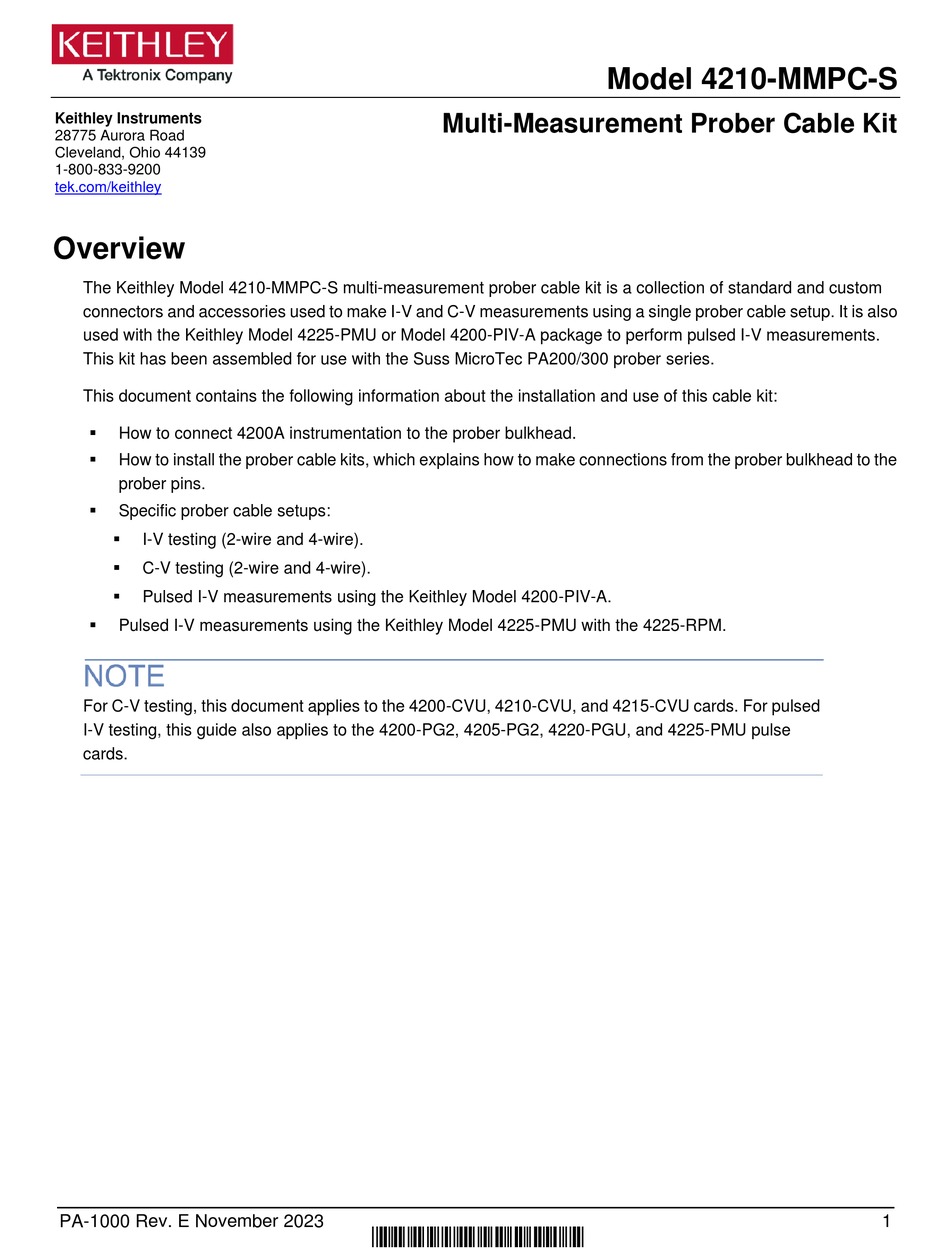

The Keithley Model 4210-MMPC-S multi-measurement prober cable kit is a collection of standard and custom
connectors and accessories used to make I-V and C-V measurements using a single prober cable setup. It is also
used with the Keithley Model 4225-PMU or Model 4200-PIV-A package to perform pulsed I-V measurements.
This kit has been assembled for use with the Suss MicroTec PA200/300 prober series.
This document contains the following information about the installation and use of this cable kit:
▪
How to connect 4200A instrumentation to the prober bulkhead.
▪
How to install the prober cable kits, which explains how to make connections from the prober bulkhead to the
prober pins.
▪
Specific prober cable setups:
▪
I-V testing (2-wire and 4-wire).
▪
C-V testing (2-wire and 4-wire).
▪
Pulsed I-V measurements using the Keithley Model 4200-PIV-A.
▪
Pulsed I-V measurements using the Keithley Model 4225-PMU with the 4225-RPM.
For C-V testing, this document applies to the 4200-CVU, 4210-CVU, and 4215-CVU cards. For pulsed
I-V testing, this guide also applies to the 4200-PG2, 4205-PG2, 4220-PGU, and 4225-PMU pulse
cards.
PA-1000 Rev. E November 2023
Multi-Measurement Prober Cable Kit
*PPA-1000E*
Model 4210-MMPC-S
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KEITHLEY 4210-MMPC-S and is the answer not in the manual?

Questions and answers

Related Manuals for Tektronix KEITHLEY 4210-MMPC-S

Summary of Contents for Tektronix KEITHLEY 4210-MMPC-S

  • Page 1 Model 4210-MMPC-S Keithley Instruments Multi-Measurement Prober Cable Kit 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Overview The Keithley Model 4210-MMPC-S multi-measurement prober cable kit is a collection of standard and custom connectors and accessories used to make I-V and C-V measurements using a single prober cable setup. It is also used with the Keithley Model 4225-PMU or Model 4200-PIV-A package to perform pulsed I-V measurements.
  • Page 2 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Prober cable kit contents The following figure shows the cables, adapters, and supplies that are included in the 4210-MMPC-S kit. Figure 1: Model 4210-MMPC-S multi-measurement prober cable kit Item Description Part number Quantity 24" full triaxial to full triaxial 100 Ω cable CA-534-24 Triaxial plug to BNC jack CS-712...
  • Page 3 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Connecting 4200A-SCS instrumentation to the prober bulkhead To prevent injury or death due to electric shock, remove all power from the 4200A-SCS and shut down the Suss prober before installing the prober cable kit. Connect the 4200A-SCS to the triaxial jacks on the prober bulkhead.
  • Page 4 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit I-V testing For I-V testing, connect the triaxial cables of the 4200A-SCS source-measure units (SMUs) to the standard triaxial jacks on the bulkhead of the prober. The following figure shows the prober connections for two SMUs. The 4200A-SCS to prober portion of the following figure shows SMUs that do not use preamplifiers.
  • Page 5 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit C-V testing You need two prober cable kits to connect the subminiature version A (SMA) cables of the CVU to the triaxial jacks on the bulkhead of the prober. The following figure shows how to make the connections. Use the torque wrench supplied with the 4200A-SCS to tighten the SMA connections to 8 in.
  • Page 6 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Use the supplied cables and connectors to connect the Model 4200 to the bulkhead of the prober. Use the torque wrench supplied with the 4200A-SCS to tighten the SMA connections to 8 in. lb. See the following figures for details of the connections, cables, and adapters.
  • Page 7 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Figure 7: SCP2 connection to Suss prober Notes Item Description Part number SMA jack to BNC plug CS-1247 Triaxial connectors. 2 m SMA cable (plug to plug) Not applicable Supplied with the 4200-PIV-A. BNC jack to triaxial plug CS-712 Figure 8: Trigger connection between SCP2 and PG2 Notes...
  • Page 8 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Basic cable kit setup The following figure shows the basic cable setup for the 2-pin I-V and 2-pin C-V testing scenarios described in this document. The 4-pin I-V and 4-pin C-V testing scenarios require minor setup changes. Pulsed I-V setup, which is more complex, is described in Usage scenarios (on page 10).
  • Page 9 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Installation guidelines The following figure shows the prober cable assemblies of two 4210-MMPC-S kits installed in a Suss MicroTec PA300 prober. To install the Suss prober kit: 1. Secure each prober cable assembly to the manipulator using a single mounting screw (2), as shown in the following figure.

  • Page 10: Usage Scenarios

    Model 4210-MMPC-S Multi-Measurement Prober Cable Kit 5. Connect the cable wires of the cable assemblies to the APT probe tips, as shown in the following figure. Figure 13: Front view of the installed prober cable assemblies Item Description APT probe tip Jumper When routing the wires, consider the possible movements of the manipulators.
  • Page 11 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit I-V testing: 2-pin I-V setup The setup for 2-pin I-V testing requires two 4210-MMPC-S prober cable kits. This setup assumes that two 4200A-SCS SMUs are connected to the prober bulkhead. Use the setup shown in the following figure to perform 2-pin I-V testing.
  • Page 12 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit I-V testing: 4-pin I-V setup The setup for 4-pin I-V testing requires four 4210-MMPC-S prober cable kits. With four SMUs connected to the prober bulkhead, use the setup shown in the following figure to perform 4-pin I-V testing.
  • Page 13 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit C-V testing: 2-pin C-V setup With a CVU connected to the prober bulkhead, use the fundamental setup shown in C-V testing (on page 5) to perform 2-pin C-V testing. The following figure shows the CVU connections to the outside of the bulkhead. The set up for 2-pin C-V testing requires two 4210-MMPC-S prober cable kits.
  • Page 14 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit C-V testing: 4-pin C-V setup The setup for 4-pin C-V testing requires four 4210-MMPC-S prober cable kits. A typical test for a field effect transistor (FET) is to connect the drain, bulk, and source together and make the measurement across the gate.
  • Page 15 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit The setup for 4-pin pulsed I-V testing requires four prober cable kits. The Model 4200-PIV-A is a factory-installed package that includes a scope card, pulse generator card, software, and other components to perform 4-pin pulsed I-V measurements. The test setup for using the Model 4200-PIV-A is shown in the following figures.
  • Page 16 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit The following figure shows the connections from the bulkhead to the drain and bulk. Figure 19: Connections to the drain and bulk Notes Item Description Part number Prober bulkhead Triaxial connectors. BNC jack to triaxial plug CS-712 SMA jack to BNC plug CS-1247...
  • Page 17 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Set up the Keithley Model 4225-PMU for pulsed I-V measurements The setup for four-pin pulsed I-V testing requires four 4210-MMPC-S prober cable kits. The Model 4225-PMU has two channels of voltage pulse source with integrated simultaneous voltage and current measurement.
  • Page 18 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit Setup using the Keithley Model 4225-RPM for I-V, C-V, or pulsed I-V measurements The setup for three-pin pulsed I-V testing requires three prober cable kits. The setups for four-pin testing require four prober cable kits. The Model 4225-RPM Remote Amplifier/Switch is an optional accessory for the Model 4225-PMU.
  • Page 19 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit The three-pin setup requires three 4210-MMPC-S kits. Figure 23: Test setup for a 3-pin device using 2-channel I-V and pulsed I-V Item Description Part number Notes Prober cable assembly CA-532 Triaxial jack to triaxial jack adapter CS-751 Triaxial shorting plug CS-1546 The shorting plug connects the center conductor...
  • Page 20 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit The four-pin setup requires four 4210-MMPC-S kits. Figure 24: Test setup for 4-pin device using 2-channel I-V and pulsed I-V Item Description Part number Notes Prober cable assembly CA-532 Triaxial jack to triaxial jack adapter CS-751 Triaxial shorting plug CS-1546 The shorting plug connects the center conductor...
  • Page 21 Model 4210-MMPC-S Multi-Measurement Prober Cable Kit For the C-V test setup shown in the following figure, all four source/measure channels are used. The four-pin setup requires four 4210-MMPC-S kits. Figure 25: Test setup for 4-terminal C-V testing Item Description Part number Notes Prober cable assembly CA-532...

  • Page 22: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 23 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
