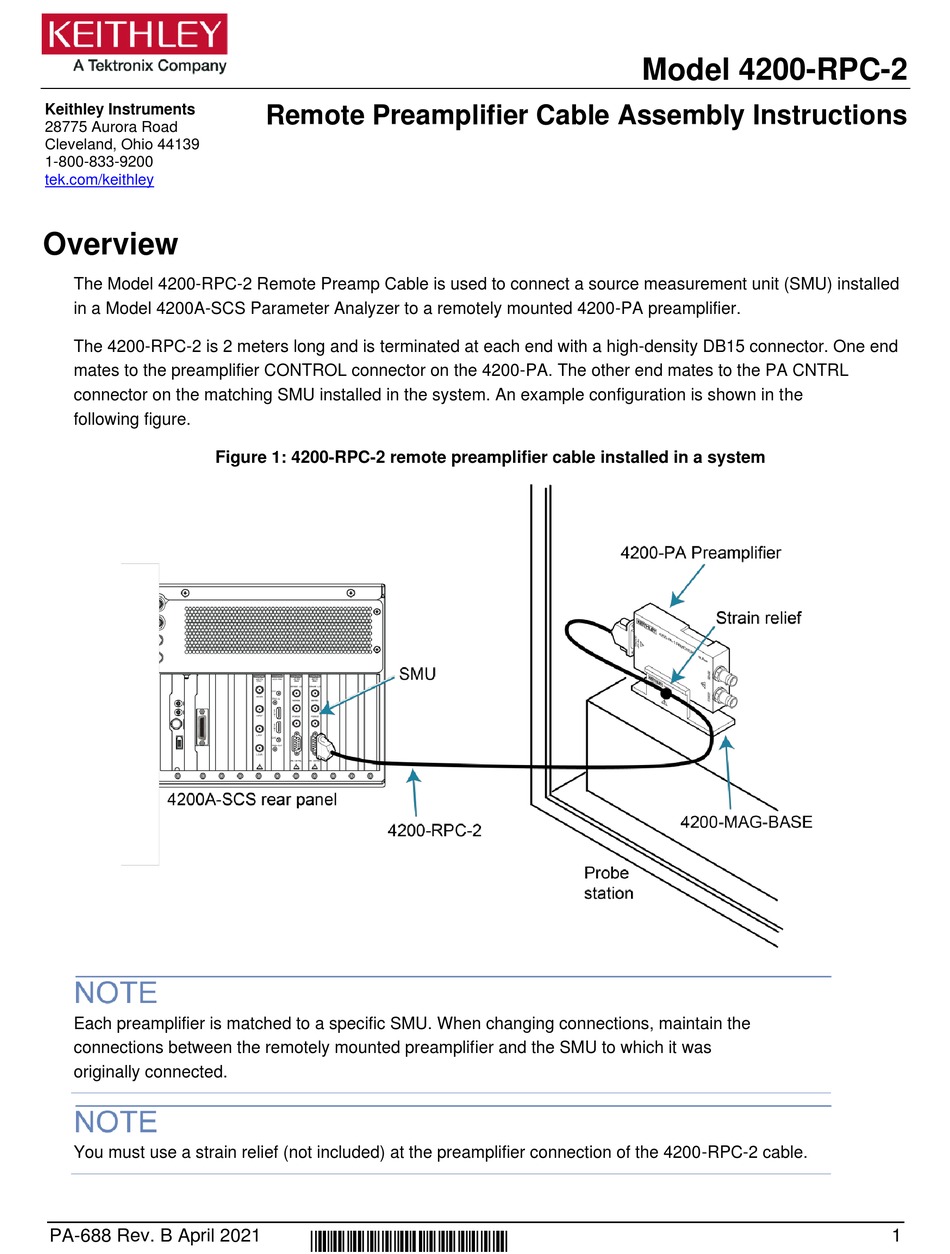

Tektronix Keithley 4200-RPC-2 Assembly Instructions

Remote preamplifier cable

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-833-9200

tek.com/keithley

Overview

The Model 4200-RPC-2 Remote Preamp Cable is used to connect a source measurement unit (SMU) installed

in a Model 4200A-SCS Parameter Analyzer to a remotely mounted 4200-PA preamplifier.

The 4200-RPC-2 is 2 meters long and is terminated at each end with a high-density DB15 connector. One end

mates to the preamplifier CONTROL connector on the 4200-PA. The other end mates to the PA CNTRL

connector on the matching SMU installed in the system. An example configuration is shown in the

following figure.

Figure 1: 4200-RPC-2 remote preamplifier cable installed in a system

Each preamplifier is matched to a specific SMU. When changing connections, maintain the

connections between the remotely mounted preamplifier and the SMU to which it was

originally connected.

You must use a strain relief (not included) at the preamplifier connection of the 4200-RPC-2 cable.

PA-688 Rev. B April 2021

Remote Preamplifier Cable Assembly Instructions

*PPA-688B*

Model 4200-RPC-2
