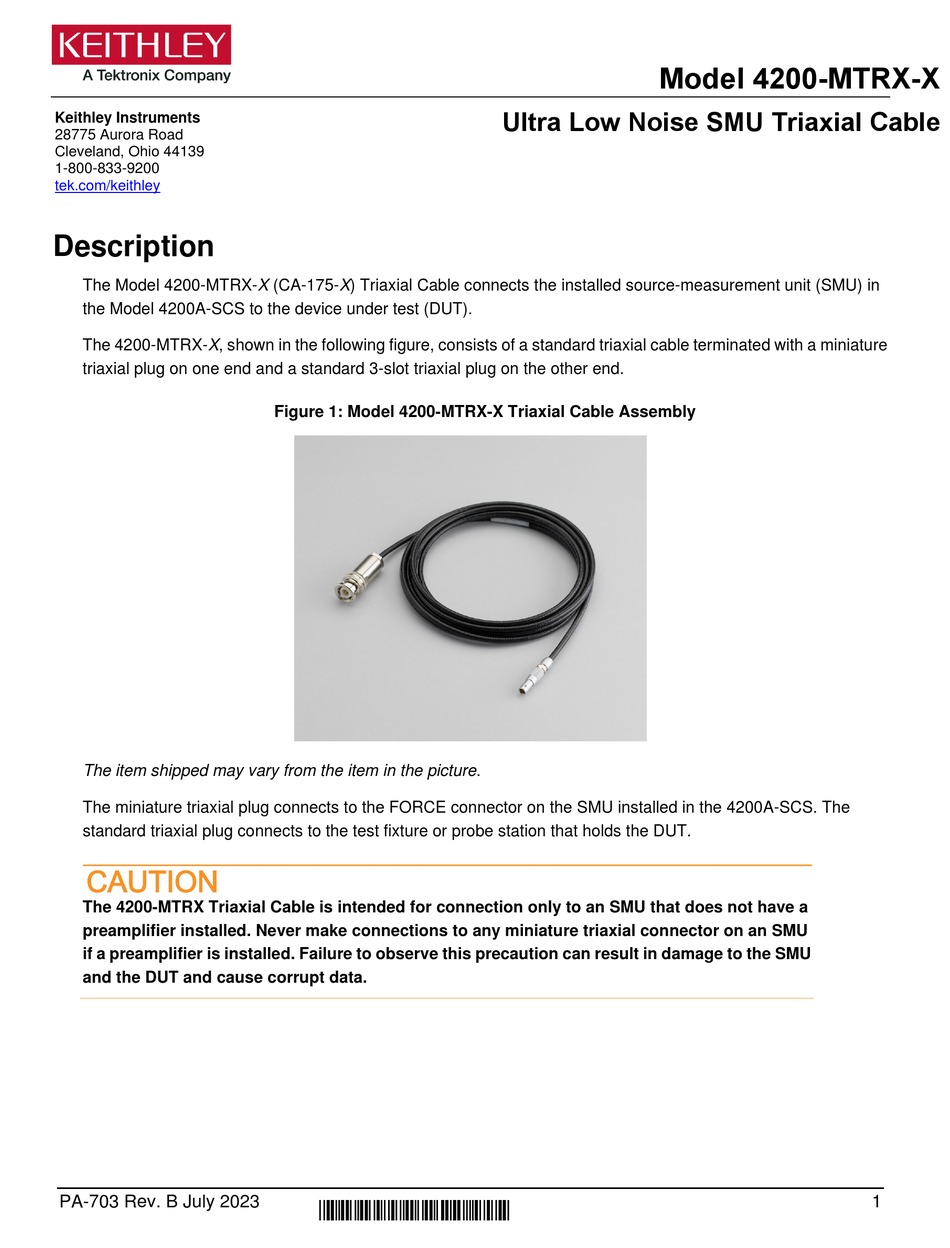

Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description
The Model 4200-MTRX-X (CA-175-X) Triaxial Cable connects the installed source-measurement unit (SMU) in
the Model 4200A-SCS to the device under test (DUT).
The 4200-MTRX-X, shown in the following figure, consists of a standard triaxial cable terminated with a miniature
triaxial plug on one end and a standard 3-slot triaxial plug on the other end.
The item shipped may vary from the item in the picture.
The miniature triaxial plug connects to the FORCE connector on the SMU installed in the 4200A-SCS. The
standard triaxial plug connects to the test fixture or probe station that holds the DUT.
The 4200-MTRX Triaxial Cable is intended for connection only to an SMU that does not have a
preamplifier installed. Never make connections to any miniature triaxial connector on an SMU
if a preamplifier is installed. Failure to observe this precaution can result in damage to the SMU
and the DUT and cause corrupt data.
PA-703 Rev. B July 2023

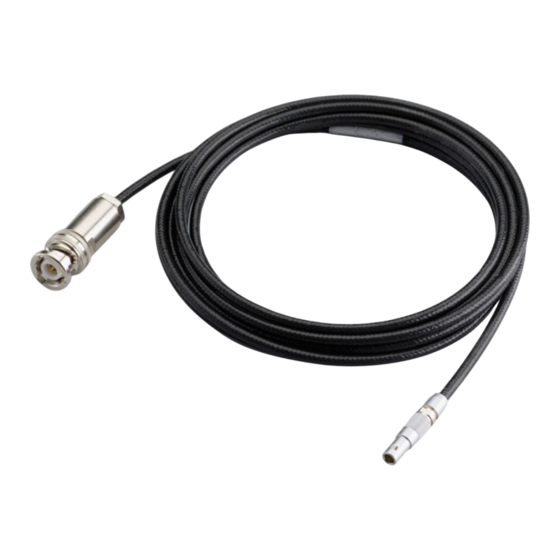

Figure 1: Model 4200-MTRX-X Triaxial Cable Assembly
*PPA-703B*
Model 4200-MTRX-X
Ultra Low Noise SMU Triaxial Cable
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix KEITHLEY 4200-MTRX-X
Summary of Contents for Tektronix KEITHLEY 4200-MTRX-X
- Page 1 Model 4200-MTRX-X Ultra Low Noise SMU Triaxial Cable Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Model 4200-MTRX-X (CA-175-X) Triaxial Cable connects the installed source-measurement unit (SMU) in the Model 4200A-SCS to the device under test (DUT). The 4200-MTRX-X, shown in the following figure, consists of a standard triaxial cable terminated with a miniature triaxial plug on one end and a standard 3-slot triaxial plug on the other end.
- Page 2 Model 4200-MTRX-X Ultra Low Noise SMU Triaxial Cable The 4200-MTRX-X is available in different lengths. The -X in the model number represents the cable length in meters, as listed in the following table. Cable lengths Cable length Cable length Model number (ft) 4200-MTRX-1 (CA-175-1) 4200-MTRX-2 (CA-175-2)
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure. Damage to the instrument may invalidate the warranty.
