Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Description
The Keithley Instruments TRX-1100V-CONN is a 3-slot male voltage triaxial cable connector rated for 1100 V.
This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage
®
SourceMeter
Instrument. It can be used for instrument testing that requires high voltage and high throughput
combined with DC measurement capability and broad testing flexibility.
This connector is commonly mated to the Keithley Instruments TRX-1100V-PCBCONN High-Voltage Female
PCB Connector. It is intended for use with the Keithley Instruments SC-22 Triaxial Cable, which is an
unterminated cable. Instructions for installing the TRX-1100V-CONN onto a SC-22 cable are provided in this
document. The connector and cable assembly is shown in the following figure.
071368600 / September 2019

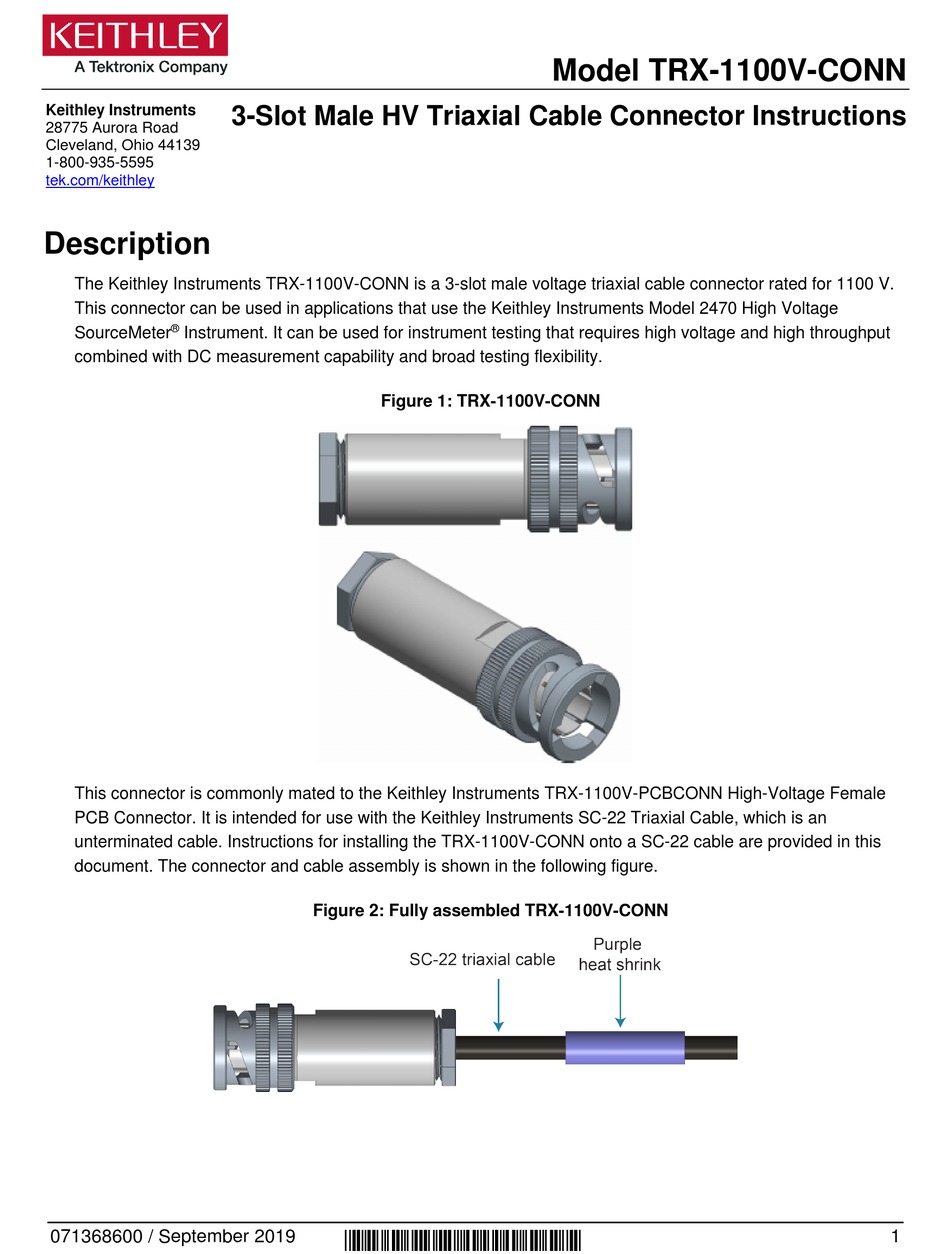

3-Slot Male HV Triaxial Cable Connector Instructions

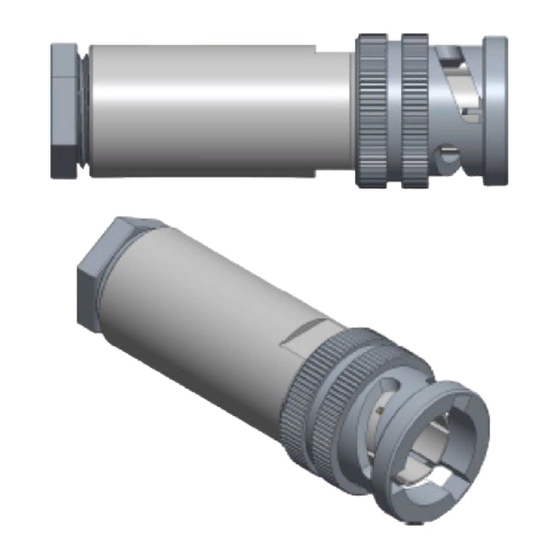

Figure 1: TRX-1100V-CONN
Figure 2: Fully assembled TRX-1100V-CONN
*P071368600*
Model TRX-1100V-CONN
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tektronix Keithley TRX-1100V-CONN
Summary of Contents for Tektronix Keithley TRX-1100V-CONN
- Page 1 Model TRX-1100V-CONN Keithley Instruments 3-Slot Male HV Triaxial Cable Connector Instructions 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The Keithley Instruments TRX-1100V-CONN is a 3-slot male voltage triaxial cable connector rated for 1100 V. This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage ®...
- Page 2 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions This triaxial connector is shipped with purple heat-shrink tubing. As shown in the previous figure, it should be installed on the SC-22 cable. The purple marking indicates that the cable and connector assembly is rated for up to 1500 V and conforms to IEC 61010-1 and IEC 61010-2-30 safety standards.
-
Page 3: Electrical Characteristics
Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions Triaxial cable connector electrical characteristics Characteristic impedance: Nonconstant Insulation resistance: 4 x 10 Ω minimum Voltage rating: Center contact to intermediate 500 V Intermediate contact to outer body 1000 V Dielectric withstanding voltage: ... - Page 4 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions TRX-1100V-CONN assembly instructions The TRX-1100V-CONN needs to be assembled before use. The following figures and instructions guide you through this process. See the following figure and use it to help guide you step-by-step with the assembly. Note that you will have to prepare the SC-22 triaxial cable in order to insert it in the TRX-1100V-CONN.
- Page 5 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions To prepare the SC-22 cable for assembly to the TRX-1100V-CONN: 1. Use the cable ringing tool or wire stripper to strip the cable to the proper dimensions. Figure 7: Strip SC-22 cable 2.
- Page 6 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions To assemble the triaxial male HV connector and SC-22 triaxial cable: 1. Slide the hex nut and V gasket onto the SC-22 triaxial cable as shown in the following figure. Figure 9: Add hex nut and V gasket to triax cable 2.
- Page 7 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions 4. Slide the front clamp against the braid as shown in the following figure. Make sure to fully seat the front clamp onto the V clamp. Figure 12: Add front clamp 5.
- Page 8 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions 7. Install the slotted clamp, support insulator, and center contact. Crimp the center contact to the center conductor cable as shown in the following figure. Figure 15: Add slotted clamp, support insulator, and center contact 8.
- Page 9 Model TRX-1100V-CONN 3-Slot Male HV Triaxial Cable Connector Instructions 9. Insert the terminated cable assembly into the rear of the connector body as shown in the following figure. 10. Tighten the cable nut with a wrench to 3.39 Newton meters (30 inch-pounds). Figure 17: Add connector body to terminated cable assembly 071368600 / September 2019...
-
Page 10: Safety Precautions
Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. - Page 11 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
