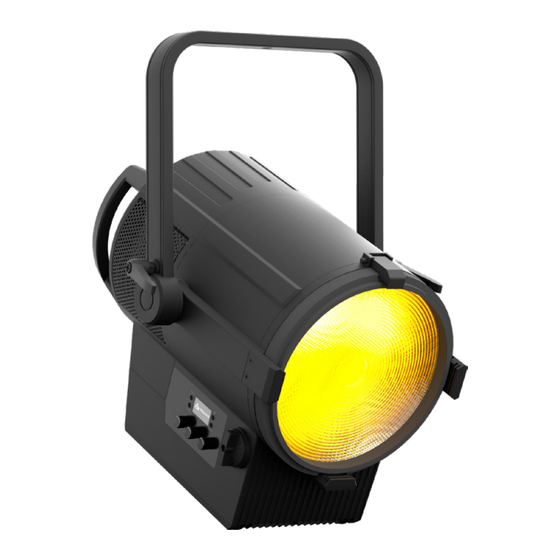

- Page 1 EclFresnel 2KTW EclFresnel 2KPTW LED Fresnel FC and Tunable White with colour correction, to replace 2.000W lamp USER MANUAL English version REV.06-03/23...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
FILTER FRAME (CODE ECLFR2KTPG - OPTIONAL) ............23 BARN DOOR (CODE ECLFR2KBD - OPTIONAL) ............24 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............25 REPLACING THE FUSE ....................25 VISUAL CHECK OF PRODUCT HOUSING ..............25 TROUBLESHOOTING ..................... 26 PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals PROLIGHTS - EclFresnel 2KTW / PTW...
-
Page 7: Packaging
• 1x ECLFR2KTW / PTW; • 1x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65); • 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series; • 1x ECLFR2KBD: barn door with directional flaps to adjust the light beam; • 1x ECLFR2KTPG: gel filter frame for ECLFR2K projectors;... -
Page 8: Technical Drawing
[17.9 in] [14.4 in] ECLFR2KTU-DY - Weight: 17.2 kg - 37.9 lbs 401 mm 456 mm 366 mm [15.8 in] [17.9 in] [14.4 in] Fig. 01 ECLFR2KPTW - Weight: 18 kg - 39.7 lbs PROLIGHTS - EclFresnel 2KTW / PTW... - Page 9 594 mm 366 mm [23.4 in] [14.4 in] ECLFR2KTW - Weight: 17.2 kg - 37.9 lbs 594 mm 366 mm [23.4 in] [14.4 in] ECLFR2KPTW - Weight: 18 kg - 39.7 lbs Fig. 02 PROLIGHTS - EclFresnel 2KTW / PTW...
-
Page 10: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B RSR0630A/B RSR0630A/B steel security cable steel security cable steel security cable C6002 C6040 C6040 clamp clamp clamp 323 mm [12.7 in] 38 mm [1.5 in] Ø13 mm [Ø0.5 in] Fig. 03 PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 11: Connection To The Mains Supply
• The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 12: Product Overview
12. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 13. POWER OUT: power output for connection of multiple units in series. 11 12 13 Fig. 04 PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 13: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 19 DMX channels configuration PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 14: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 15: Control Panel
• DOWN: browse downwards through the menu list and decreases the numeric value displayed; • ENTER: used to confirm the current menu or confirm the current function value or option within a menu; • ROTARY KNOB 1, 2, 3: used to control stand alone modes. PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 16: Menu Structure
: UP, DOWN, UP, DOWN To choose Full On mode. ADVANCED FULL ON MODE STUDIO To choose the dimmer DIMMER MODE curve. DIMMER 1 DIMMER 2 DIMMER 3 PROLIGHTS - EclFresnel 2KTW / PTW... - Page 17 3800K 7600K 4000K 7800K 4200K 8000K DIMMER 000 - 255 4400K 8200K 4600K 8400K HUE (-25 TO +25) 4800K 8600K 5000K 8800K 5200K 9000K 5400K 9200K 5600K 9400K 5800K 9600K 6000K 9800K 6200K 10000K PROLIGHTS - EclFresnel 2KTW / PTW...
- Page 18 G.RB O.B.L R.O.G.RB.L G.RB.B R.O.G.B.L G.RB.L R.O.RB.B.L RB.B G.B.L R.G.RB.B.L RB.L RB.B.L O.G.RB.B.L R.O.G.RB.B.L R.O.G.RB 3200K COLOR PICKER DIMMER 000 - 255 MANUAL COLOR Orange Green DIMMER 000 - 255 Royal Blue Blue Lime PROLIGHTS - EclFresnel 2KTW / PTW...
-
Page 19: Rdm Functions
0x00E1 Setup DMX_START_ADDRESS 0x00F0 CURVE 0x0340 CURVE_DESCRIPTION 0x0341 Dimmer Settings MODULATION_FREQUENCY 0x0342 MODULATION_FREQUENCY_ DESCRIPTION 0x0343 SENSOR_DEFINITION 0x0200 Sensors SENSOR_VALUE 0x0201 Display DISPLAY_INVERT 0x0500 Settings IDENTIFY_DEVICE 0x1000 Control FULL ON 0x8217 0:HB Mode 1:Studio Mode PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 20: Dmx Charts
ORANGE DIMMER FINE MODE GREEN ORANGE ROYAL COLOR COLOR GREEN ORANGE MACRO MACRO BLUE DIMMER DIMMER ROYAL SPEED SPEED BLUE GREEN BLUE MODE MODE ROYAL LIME BLUE BLUE DIMMER SPEED LIME BLUE MODE LIME PROLIGHTS - EclFresnel 2KTW / PTW... - Page 21 ROYAL BLUE MODE ROYAL BLUE LIME FINE LIME FINE FINE STROBE STROBE BLUE DIMMER SPEED BLUE FINE MODE LIME COLOR LIME FINE MACRO DIMMER COLOR SPEED MACRO MODE CTO ON COLORS DIMMER SPEED MODE PROLIGHTS - EclFresnel 2KTW / PTW...
- Page 22 8800K - 9000K 210 ÷ 217 9000K - 9200K 217 ÷ 224 9200K - 9400K 224 ÷ 231 9400K - 9600K 231 ÷ 238 9600K - 9800K 238 ÷ 245 9800K - 10000K 245 ÷ 255 PROLIGHTS - EclFresnel 2KTW / PTW...
- Page 23 128 ÷ 255 -25 to +25 001 ÷ 255 CROSSFADE 0~100% 000 ÷ 255 0~100% 000 ÷ 255 RED FINE 0~100% 000 ÷ 255 ORANGE 0~100% 000 ÷ 255 ORANGE FINE 0~100% 000 ÷ 255 PROLIGHTS - EclFresnel 2KTW / PTW...
- Page 24 052 ÷ 101 Mode1 (fast speed) 102 ÷ 152 Mode2 (middle speed) 153 ÷ 203 Mode3 (slow speed) 204 ÷ 255 STROBE No Function 000 ÷ 010 Strobe slow to fast 011 ÷ 255 PROLIGHTS - EclFresnel 2KTW / PTW...
- Page 25 208 - 211 212 - 215 216 - 219 220 - 223 224 - 227 228 - 231 232 - 235 236 - 239 240 - 243 244 - 247 248 - 251 252 - 255 PROLIGHTS - EclFresnel 2KTW / PTW...
-
Page 26: Accessories Installation
Press the pin (1) and the snap will automatically open upwards (2). Insert the gel filter frame (3) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 27: Barn Door (Code Eclfr2Kbd - Optional)
Press the pin (1) and the snap will automatically open upwards (2). Insert the barn door (3) into the gel frame lock (DETAIL-1) throught the holder assembly of the barn door (DETAIL-2). Then close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 10 PROLIGHTS - EclFresnel 2KTW / PTW... -
Page 28: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 29: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 30 Note...
- Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
