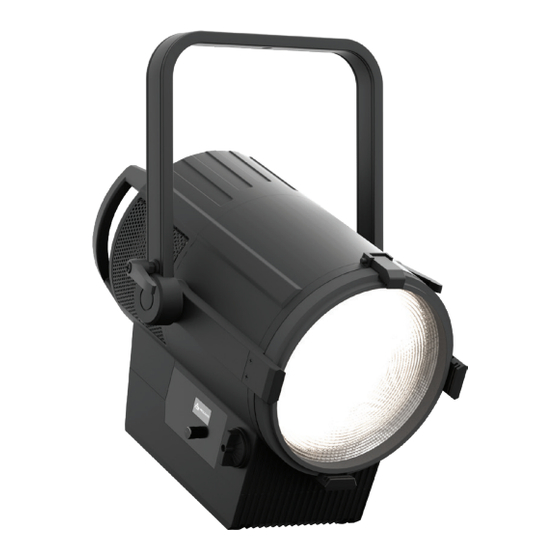

- Page 1 EclFresnel 2KTU-DY EclFresnel 2KPTU-PDY LED Fresnel with HB white source, to replace 2.000W lamp USER MANUAL English version REV.04-01/23...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
FILTER FRAME (CODE ECLFR2KTPG - OPTIONAL) ............17 BARN DOOR (CODE ECLFR2KBD - OPTIONAL) ............18 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............19 REPLACING THE FUSE ....................19 VISUAL CHECK OF PRODUCT HOUSING ..............19 TROUBLESHOOTING ..................... 20 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY...
-
Page 7: Packaging
• 1x ECLFR2KTU-DY; • 1x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65); • 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series; • 1x ECLFR2KBD: barn door with directional flaps to adjust the light beam; • 1x ECLFR2KTPG: gel filter frame for ECLFR2K projectors;... -
Page 8: Technical Drawing
[17.9 in] [14.4 in] ECLFR2KTU-DY - Weight: 17.2 kg - 37.9 lbs 401 mm 456 mm 366 mm [15.8 in] [17.9 in] [14.4 in] Fig. 01 ECLFR2KPTU-PDY - Weight: 18 kg - 39.7 lbs PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... - Page 9 594 mm 366 mm [23.4 in] [14.4 in] ECLFR2KTU-DY - Weight: 17.2 kg - 37.9 lbs 594 mm 366 mm [23.4 in] [14.4 in] ECLFR2KPTU-PDY - Weight: 18 kg - 39.7 lbs Fig. 02 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY...
-
Page 10: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B RSR0630A/B RSR0630A/B steel security cable steel security cable steel security cable C6002 C6040 C6040 clamp clamp clamp 323 mm [12.7 in] 38 mm [1.5 in] Ø13 mm [Ø0.5 in] Fig. 03 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 11: Connection To The Mains Supply
• The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 12: Product Overview
12. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 13. POWER OUT: power output for connection of multiple units in series. 11 12 13 Fig. 04 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 13: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 5 DMX channels configuration PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 14: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using KNOB ROTATORY by pressing it. 4. Press KNOB ROTATORY to exit and return to the Home screen. PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 15: Control Panel
The product has a display and buttons for access to the control panel functions. ROTARY KNOB Fig. 08 USER INTERFACE LAYOUT The product has a display and a rotatory knob for access to the control panel functions. PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 16: Menu Structure
EFFECT 2 1 ÷ 100 EFFECT 3 1 ÷ 100 EFFECT 4 1 ÷ 100 000 ÷ 255 To choose the desidered level of STATIC DIMMER each color in static mode. 000 ÷ 255 STROBE PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 17: Rdm Functions
0x0090 SOFTWARE_VERSION_LABEL 0x00C0 DMX512 DMX_PERSONALITY 0x00E0 Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 Dimmer CURVE 0x0343 Settings CURVE_DESCRIPTION 0x0344 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Display DISPLAY_INVERT 0x0500 Settings Control IDENTIFY_DEVICE 0x1000 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 18: Dmx Charts
000 ÷ 051 Dimmer speed mode off 052 ÷ 101 Dimmer speed mode1 (fast speed) 102 ÷ 152 Dimmer speed mode2 (middle speed) 153 ÷ 203 Dimmer speed mode3 (slow speed) 204 ÷ 255 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 19: Accessories Installation
Press the pin (1) and the snap will automatically open upwards (2). Insert the gel filter frame (3) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 20: Barn Door (Code Eclfr2Kbd - Optional)
Press the pin (1) and the snap will automatically open upwards (2). Insert the barn door (3) into the gel frame lock (DETAIL-1) throught the holder assembly of the barn door (DETAIL-2). Then close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig.10 PROLIGHTS - EclFresnel 2KTU-DY / PTU-PDY... -
Page 21: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 22: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 24 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
