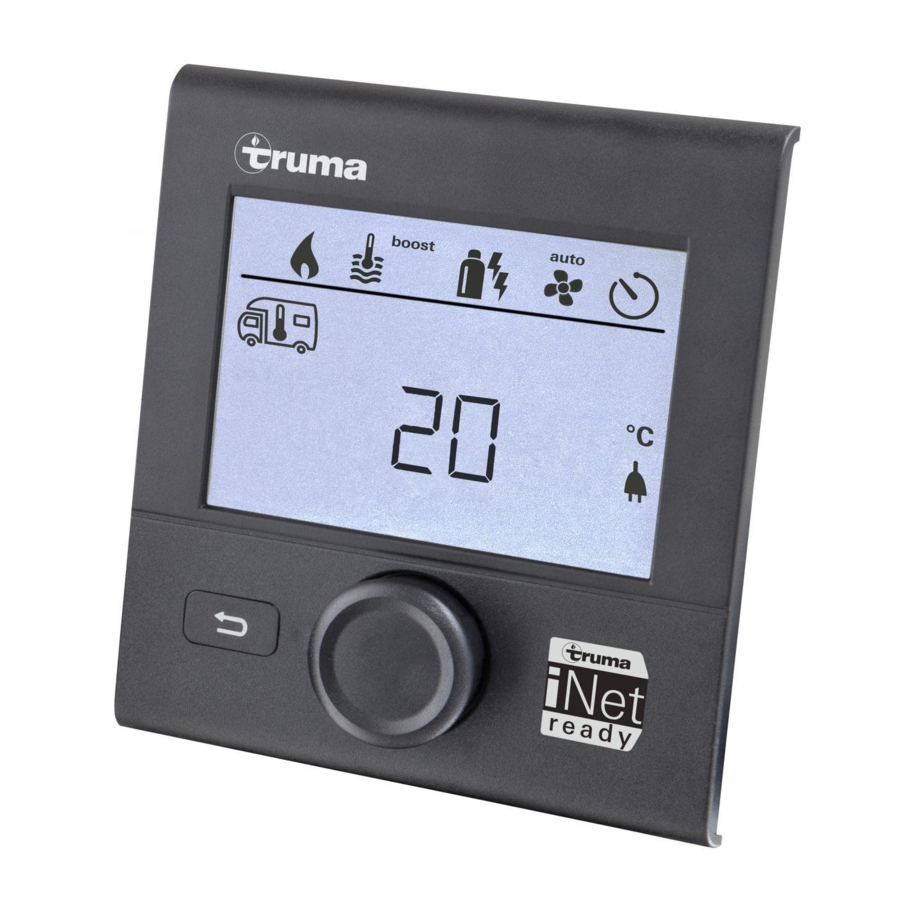

Truma Combi CP Plus - Control Panel Quick Reference Manual

CP Plus Functions

Adjust room temperature - Range: 40-86°F (5-30°C)

Select energy mode

1. LP gas
2. MIX 1* - Electricity 850W + Gas
3. MIX 2* - Electricity 1700W + Gas
4. EL* - Electricity 850W
5. EL* - Electricity 1700W

*Truma Combi eco plus and comfort plus

Adjust water temperature

1. boiler – Hot water generator is on. Icon flashes until desired temperature is reached.
2. eco – Water temperature is 104°F (40°C)
3. hot – Water temperature is 140°F (60°C)
4. boost – Boiler content is heated quickly (boiler priority) for up to 40 minutes. The water temperature is then kept at the higher level (about 144°F (62°C) for two subsequent heating cycles. When the water temperature is reached, the room is heated again.

Set clock to current time

Set time switch
Set a start time and end time for room temperature, water temperature, energy mode and fan speed set points.

Settings

Index - Show version number of connected device
Bright - Adjust backlighting
Lang - Adjust language
12-24h - 12/24 hour mode
Temp– °F or °C
Offset – Calibrate temp offset
Pr set – Factory reset

Select fan speed

OFF – Fan is switched off (If furnace mode OFF)

1. VENT - Circulating air (If furnace mode OFF)
2. ECO - Low fan speed
3. HIGH – High fan speed
4. BOOST – Fast room heating. Available if the difference between the selected and current room temperature is >18°F (10°C)
