Universal

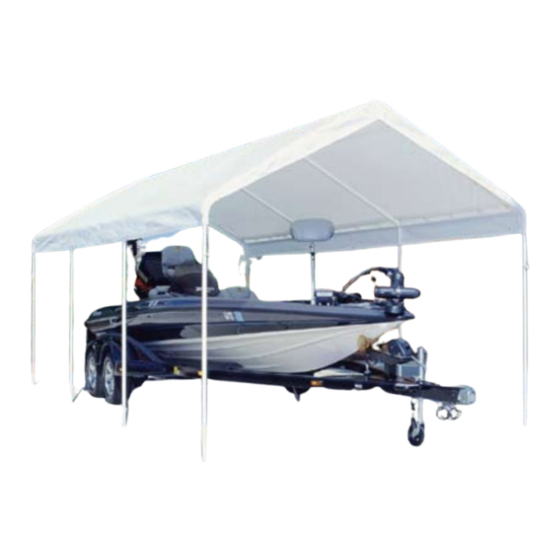

12ft3in Wide x 20ft Deep x 6ft8in Side Height /
Distributed by:
PIC America, LTD.
1730 Five Points Lane • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
™
9ft9in Center Height
King Canopy Item #: C81220PC
With 8 Legs, White Drawstring Cover,
Elastic Ball Straps & Foot Pads.
12ft X 20ft
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84. It is not fire proof. The fabric
will burn if left in continuous contact
with any flame source.
Advertisement
Table of Contents
Related Manuals for KING CANOPY Universal 12ft X 20ft
Summary of Contents for KING CANOPY Universal 12ft X 20ft
- Page 1 12ft X 20ft ™ 12ft3in Wide x 20ft Deep x 6ft8in Side Height / 9ft9in Center Height King Canopy Item #: C81220PC With 8 Legs, White Drawstring Cover, Elastic Ball Straps & Foot Pads. WARNING: Keep all flame and heat sources away from this tent fabric.
- Page 2 PARTS LIST 6X6PC 25 pc 78” Powder Coated Pipe 3WPC 6 pc 3-way connectors 4WPC 6 pc 4-way connectors BALL50W 50 pc Elastic ball straps PFOOT 8 pc Foot pads TDS12206 1 pc White Drawstring Cover CCLIP 4 pc Curtain Clips...
- Page 3 FRAME ASSEMBLY Step 1 Separate all pieces according to size and shape and arrange per the illustration shown below. Please note: • 17 - 78” pipes are used to form the roof rafters and perimeter. • 8 - 78” pipes are used for the legs. 78’’...
- Page 4 COVER ASSEMBLY Step 1 Unfold the cover with the grommets toward the cover’s bottom and place over the frame. The flared edges should be located at each of the 4 corners of the frame. Step 2 Begin attaching the cover with the elastic ball straps by inserting the elastic cord of the ball strap underneath the cover and through the grommet.
- Page 5 LEGS ASSEMBLY NOW, CONNECT THE LEG POLES TO THE ROOF ASSEMBLY WITH THE COVER ALREADY POSITIONED ON TOP OF THE UNIT. Insert Second Insert First Step A: First insert the pipes for the middle poles into the 3- and 4-way connectors, and then connect the end leg pipes in the same way.
- Page 6 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 7 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
- Page 8 Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
Need help?
Do you have a question about the Universal 12ft X 20ft and is the answer not in the manual?
Questions and answers
Can't figure getting the roof assembled
To assemble the roof for the KING CANOPY Universal 12ft X 20ft:
1. Use 17 of the 78” pipes to form the roof rafters and perimeter frame.
2. Begin with the center frame and complete it first.
3. Then assemble each side of the roof frame.
4. Do not attach the leg poles at this stage.
5. Unfold the cover with grommets at the bottom and place it over the frame.
6. Ensure the flared edges are at each of the four corners.
7. Use elastic ball straps to attach the cover: insert the cord through the grommet from underneath, pull taut until the ball stops, then wrap the cord around the pole and under the ball.
Attach the cover before inserting the legs.
