KING CANOPY Universal 10ft X 13ft Quick Start Manual
  1. Manuals
  2. Brands
  3. KING CANOPY Manuals
  4. Tent
  5. Universal 10ft X 13ft
  6. Quick start manual

KING CANOPY Universal 10ft X 13ft Quick Start Manual

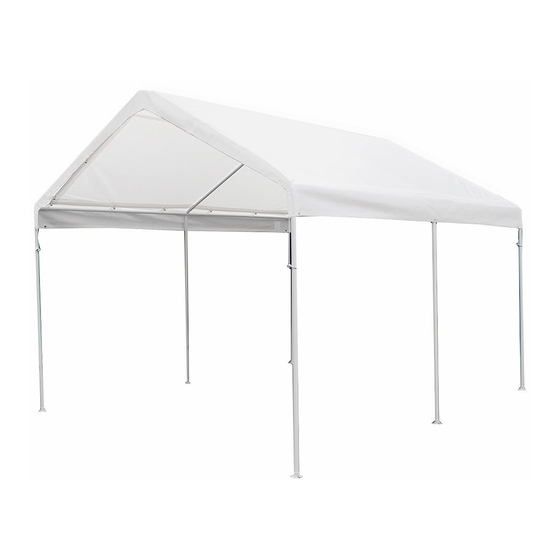

10ft8in wide x 13ft deep x 6ft8in side height / 9ft9in center height with 6 legs, white drawstring cover, elastic ball straps & foot pads
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Universal
10ft X 13ft
™
10ft8in Wide x 13ft Deep x 6ft8in Side Height /
9ft9in Center Height
King Canopy Item #: C81013PC
With 6 Legs, White Drawstring Cover,
Elastic Ball Straps & Foot Pads.
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Sec 6 and NFPA 701 It is not
Distributed by:
fire proof. The fabric will burn if left in
PIC America, LTD.
continuous contact with any flame source.
8009 Purfoy Road • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal 10ft X 13ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KING CANOPY Universal 10ft X 13ft

Summary of Contents for KING CANOPY Universal 10ft X 13ft

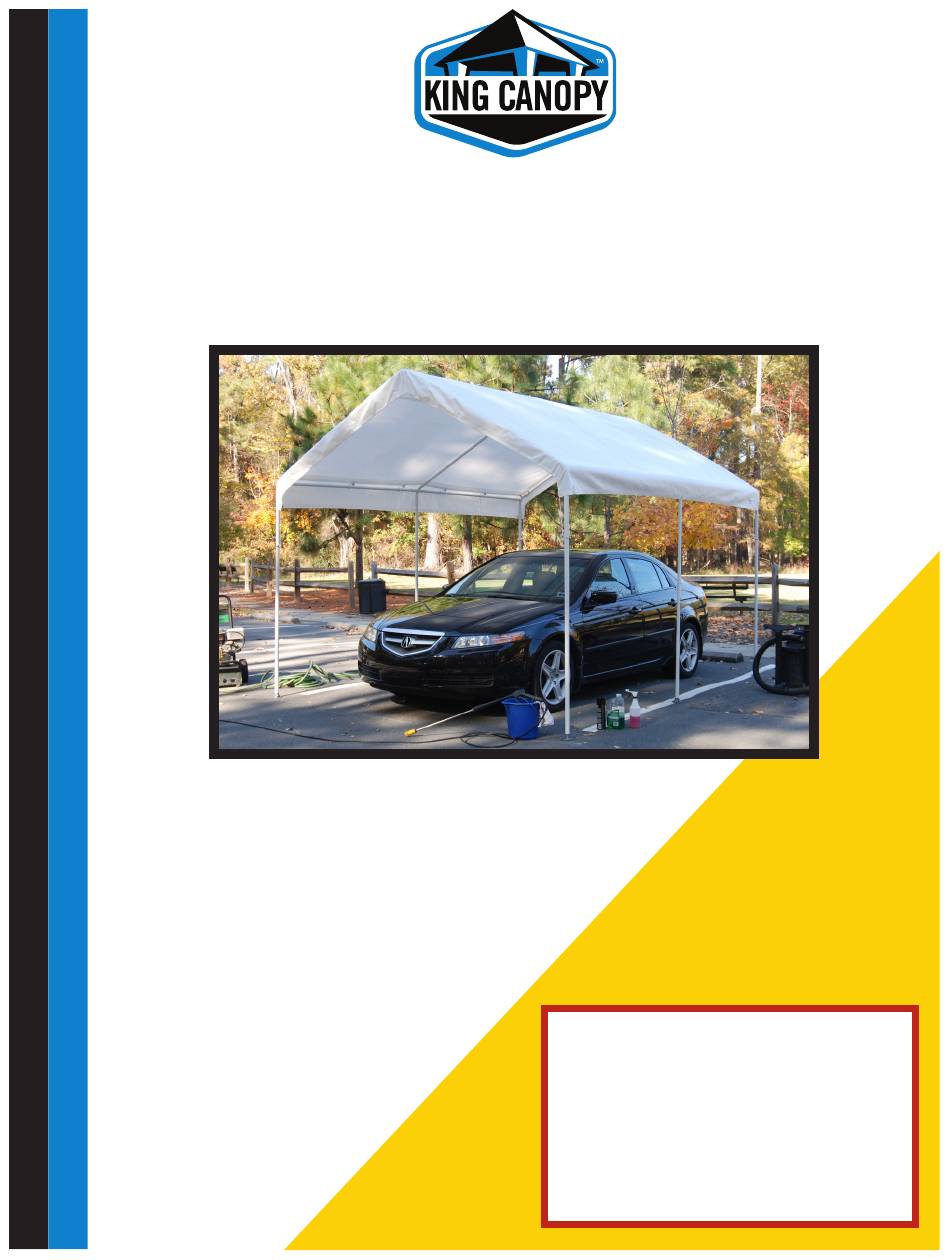

  • Page 1 10ft X 13ft ™ 10ft8in Wide x 13ft Deep x 6ft8in Side Height / 9ft9in Center Height King Canopy Item #: C81013PC With 6 Legs, White Drawstring Cover, Elastic Ball Straps & Foot Pads. WARNING: Keep all flame and heat sources away from this tent fabric.

  • Page 2: Parts List

    PARTS LIST 6X6PC 12 pc 78” Powder Coated Pipe 5X8PC 6 pc 68” Powder Coated Pipe 3WPC 6 pc 3-way Connectors 4WPC 3 pc 4-way Connectors BALLW 34 pc Elastic Ball Straps PFOOT 6 pc Plastic Foot Pads TDS1013 1 pc White Drawstring Cover CCLIP 4 pc...

  • Page 3: Frame Assembly

    FRAME ASSEMBLY Step 1 Separate all pieces according to size and shape and arrange per the illustration shown below. Please note: • The 68” (6) and 78” (6) pipes are used to form the roof rafters • The 78” (6) pipes are for the legs 78’’...

  • Page 4: Cover Assembly

    COVER ASSEMBLY Step 1 Unfold the cover with the grommets toward the cover’s bottom and place over the frame. The flared edges should be located at each of the 4 corners of the frame. Step 2 Begin attaching the cover with the elastic ball straps by inserting the elastic cord of the ball strap underneath the cover and through the grommet.
  • Page 5 LEGS ASSEMBLY NOW, CONNECT THE LEG POLES TO THE ROOF ASSEMBLY WITH THE COVER ALREADY POSITIONED ON TOP OF THE UNIT. Insert second Insert first Step A: First insert the pipes for the middle poles into the 3- and 4-way connectors, and then connect the end leg pipes in the same way.
  • Page 6 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
  • Page 7 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.

  • Page 8: Product Information

    Improper Anchoring, Strong Winds, Rain, Snow, Ice NOT put away your Instant Canopy while wet or damp. This King Canopy/ PIC America, LTD. does not guarantee these promotes mildew. Store DRY. For best results in keeping your canopies under strong weather conditions (including snow top clean and avoiding small tears, it is recommended that &...

This manual is also suitable for:

C81013pc

Table of Contents
