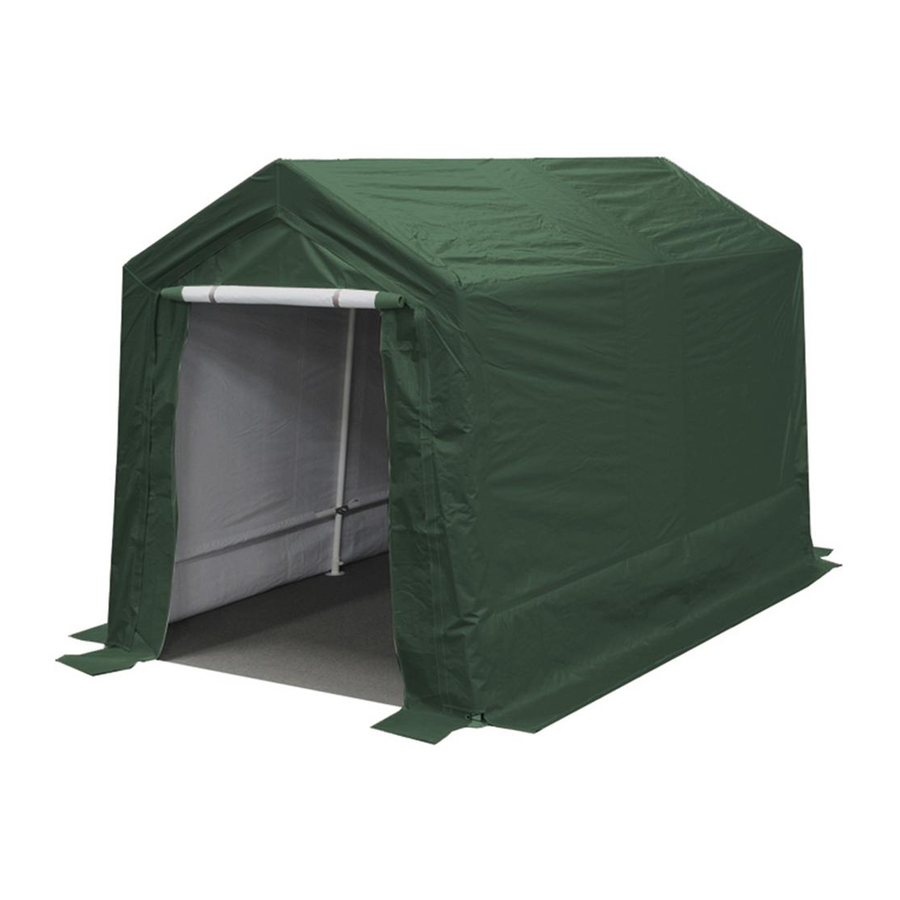

Storage Garage 7.5 ft x 12 ft
7 ft 7 in Wide x 12 ft Deep x 6 ft 1 in Side Height /
7 ft 8 in Center Height
King Canopy Item # G0712
With 6 Legs, 1 Pc. Cover, 1 Zippered Front Wall,
Elastic Ball Straps, Foot Pads and Stakes.
These Tools Are
Recommended:
WARNING:
Keep all flame and heat sources
away from this tent fabric. It is not
fire proof. The fabric will burn if
left in continuous contact with
any flame source.
www.northlineexpress.com
1-877-734-2458
Advertisement
Table of Contents
Related Manuals for KING CANOPY G0712
Summary of Contents for KING CANOPY G0712
- Page 1 7 ft 7 in Wide x 12 ft Deep x 6 ft 1 in Side Height / 7 ft 8 in Center Height King Canopy Item # G0712 With 6 Legs, 1 Pc. Cover, 1 Zippered Front Wall, Elastic Ball Straps, Foot Pads and Stakes.
- Page 2 PARTS LIST 5X9-15PC (16) 69 Inch Pipe 3X0-15PC (6) 36 Inch Pipe 3W16PC (6) 3-Way Fittings 4W16PC (3) 4-Way Fittings FOOT16PC-SL (6) Metal Foot Pads STAKE-GAR (12) Foot Pad Stakes T0712SF-GAR (1) Cover with Rear Wall & Side Walls T07SEWZF-GAR (1) Zippered Front Wall BALL (35) Elastic Ball Straps...
- Page 3 ROOF FRAME ASSEMBLY 1- Start assembly with top frame as shown Diagram A in Diagram A. The 36 inch pipes are used for the roof rafters and 69 inch pipes form the length of frame. Start assembly with center peak as circled in Diagram A.
- Page 4 COVER ASSEMBLY With frame assembled and cover on, you can now attach cover to frame using the ball straps. The grommet holes on the cover for attaching straps are located along the back and front frame line. Picture # 1 indicates where to find grommet holes. Attach the cover by running the strap through the grommet hole, around the pipe, then loop the strap over the ball.
- Page 5 ANCHORING YOUR UNIT ANCHORS ARE NOT INCLUDED This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 6 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
- Page 7 Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
