CSR1020BK - CANOPY SCREEN ROOM ASSEMBLY

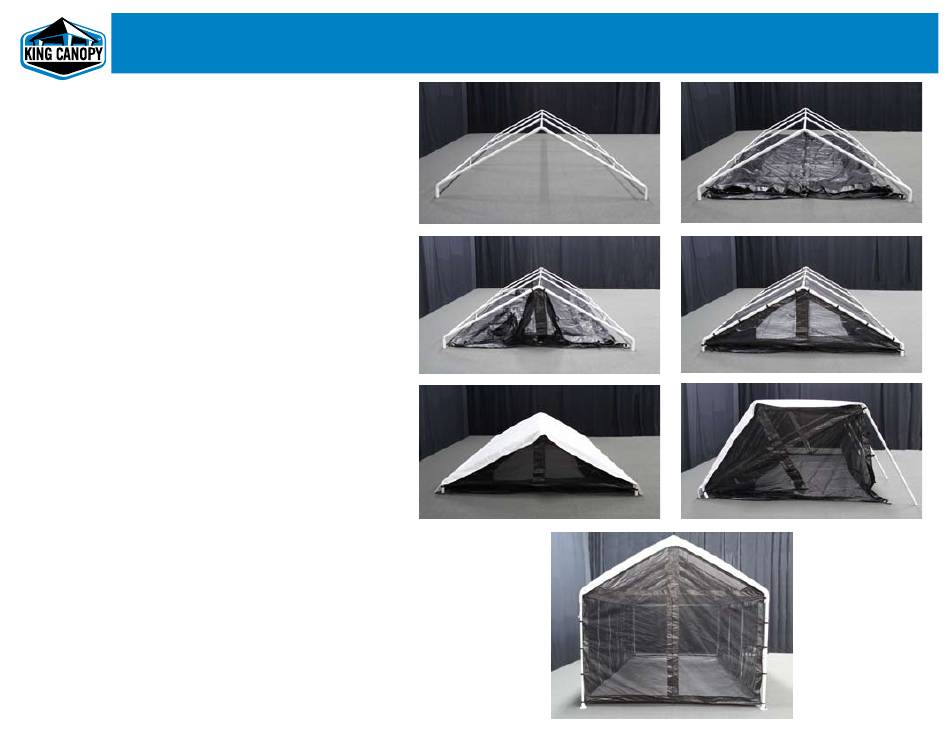

Step 1
Begin by assembling your canopy roof frame
(following the instructions that were included with
your canopy).
Step 2
Place the screen room under the roof frame in
preparation for attaching it.
Step 3
Attach the hook and loop straps to the frame. Start
with the center peak and then proceed to the ends
and sides.
Step 4
Drape your cover over your canopy roof frame and
attach it with ball bungee straps to the frame.
Step 5
Insert the legs on your canopy, starting on one side
with the center legs first, then repeat on the other
side till your canopy is completely standing.
Step 6
Put foot pads on the leg poles and attach the hook
and loop straps to the canopy legs. Stake out the
screen room through the stake loops using ground
stakes (not included) or attach them to the hooks on
the foot pads.
