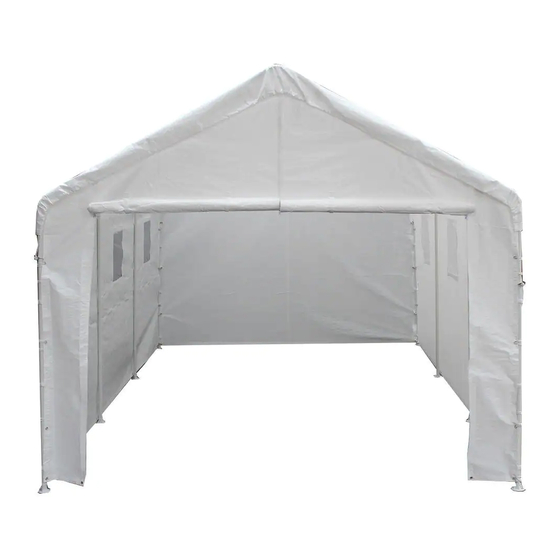

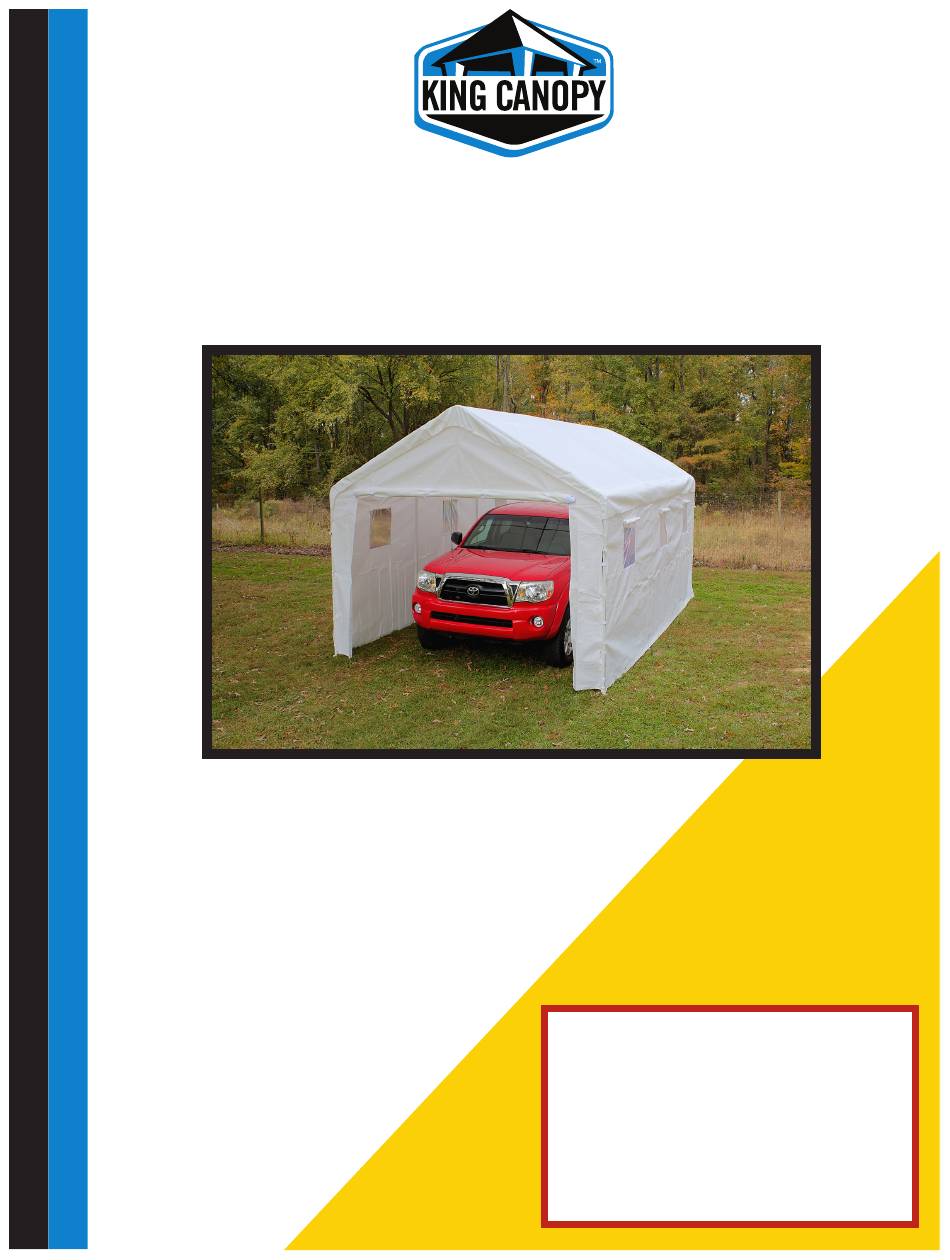

Enclosed Universal
10ft8in Wide x 20ft Deep x 6ft8in Side Height /
With 8 Legs, Cover, Side Wall kit with Windows, Elastic Ball Straps &
Foot Pads
Distributed By:
PIC America, LTD.
8009 Purfoy Road • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
9ft9in Center Height
King Canopy Item #: BJ2PC
10ft X 20ft
™
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Sec 6 and NFPA 701. It is not
fire proof. The fabric will burn if left in
continuous contact with any flame source.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KING CANOPY Enclosed Universal BJ2PC
Summary of Contents for KING CANOPY Enclosed Universal BJ2PC
- Page 1 10ft X 20ft ™ 10ft8in Wide x 20ft Deep x 6ft8in Side Height / 9ft9in Center Height King Canopy Item #: BJ2PC With 8 Legs, Cover, Side Wall kit with Windows, Elastic Ball Straps & Foot Pads WARNING: Keep all flame and heat sources away from this tent fabric.
-
Page 2: Parts List
PARTS LIST 6X6PC 17 pc 78” Pipe 5X8PC 8 pc 68” Pipe 3WPC 6 pc 3-way connectors 4WPC 6 pc 4-way connectors BALL104W 104 pc Elastic ball straps PFOOT 8 pc Foot pads T81020SWW-W 2 pc Sidewalls with Windows T81020EWZFR6 2 pc End walls (Front with Zipper, Rear Solid) T81020EWFR6... -
Page 3: Frame Assembly
FRAME ASSEMBLY Step 1 Separate all pieces according to size and shape and arrange per the illustration shown below. Please note: • The 68in pipes are used to form the roof rafters • The 78in pipes are used to form the roof perimeter and for the legs 78’’... -
Page 4: Cover Assembly
COVER ASSEMBLY Step 1 should be located at each of the 4 corners of the frame. Step 2 Begin attaching the cover with the elastic ball straps by inserting the elastic cord of the ball strap under- neath the cover and through the grommet. Then pull cord taut until ball stops. Wrap the cord around the Inside View Outside View •... - Page 5 WALLS AND LEGS ASSEMBLY Step 1 Unfold each of the walls. • The back wall (solid) and front wall (with zippers) • The 2 side walls Step 2 to be placed on the top pipe of your canopy structure by wrapping the fastening strips over the perimeter poles.
- Page 6 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 7 King Canopy/PIC AMERICA, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
- Page 8 Improper Anchoring, Strong Winds, Rain, Snow, Ice NOT put away your Instant Canopy while wet or damp. This King Canopy/ PIC America, LTD. does not guarantee these promotes mildew. Store DRY. For best results in keeping your canopies under strong weather conditions (including snow top clean and avoiding small tears, it is recommended that &...
