Garden Party
13ft X 13ft
™
12ft 9in Wide x 12ft 9in Deep x 6ft3in Side Height /
10ft4in Center Height

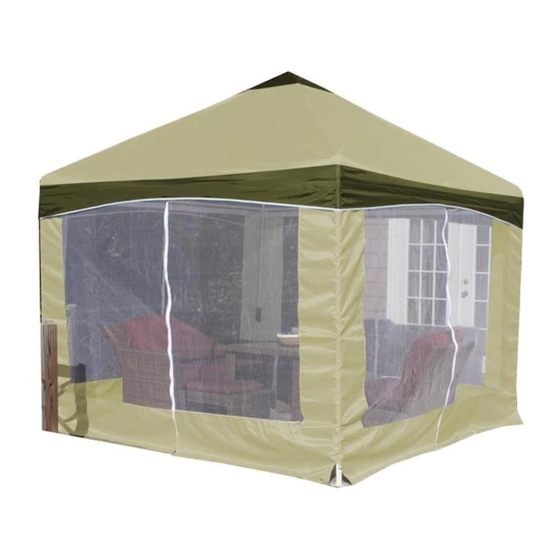

King Canopy Item #: GP1313
With 4 Legs, Foot Pads, Cover & Screens.
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Sec 6 and NFPA 701. It is not
Distributed by:
fire proof. The fabric will burn if left in
PIC America, LTD.
continuous contact with any flame source.
8009 Purfoy Road • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
Advertisement
Related Manuals for KING CANOPY Garden Party 13ft X 13ft
Summary of Contents for KING CANOPY Garden Party 13ft X 13ft
- Page 1 13ft X 13ft ™ 12ft 9in Wide x 12ft 9in Deep x 6ft3in Side Height / 10ft4in Center Height King Canopy Item #: GP1313 With 4 Legs, Foot Pads, Cover & Screens. WARNING: Keep all flame and heat sources away from this tent fabric. Meets the flammability requirements of CPAI-84 Sec 6 and NFPA 701.
-
Page 2: Parts List
PARTS LIST TOP4WPC GPT13SCREENS STAKE 4WCPC 6X6PC-SW GPT13 6X6PC 2X9PC FOOTPC 6X6PC 12 pc 78” Pipe 1 3/8” 6X6PC-SW 4 pc 78” Swedge Pipe 1 3/8” 2X9PC 4 pc 33” Swedge Pipe 1 3/8” 4WCPC 4 pc 4-Way Fittings 1 3/8” FOOTPC 4 pc Metal Foot Pads 1 3/8”... -
Page 3: Frame Assembly
FRAME ASSEMBLY 1. Arrange all pipes and fittings on the ground as in Figure #1 below. 2. Starting with the center peak 4-way fitting (TOP4WPC) connect all 4 pipe sections (6X6PC & 2X9PC) that form the center peak into the center peak 4-way fitting (TOP4WPC). Figure #2 below. 3. - Page 4 LEG & SCREEN ASSEMBLY 5. Attach the 4 foot pads (FOOTPC) to each of the 4 leg pipes (6X6PC) and tighten the eye bolts to secure them. Lift one side of the canopy and insert the legs into the corner 4-way fittings (see figure #6). Repeat the step for the opposite side.
-
Page 5: Screen Assembly
SCREEN ASSEMBLY 8. Your enclosed canopy should now look like the one in figure #12 below. To set up your canopy with the screens open you can “scallop” the screens and tie them at the corners for a more decorative look. Begin by unzipping and detaching the hook and loop strip of one side of the screen (figure #13) and proceed to “scallop”... - Page 6 SCREEN ASSEMBLY Figure #15 Figure #14 Scallop the Screen. Figure #17 Figure #16 Wrap Band Around Pole and Screens and Attach. Figure #19 Figure #18...
- Page 7 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 8 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
- Page 9 Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
