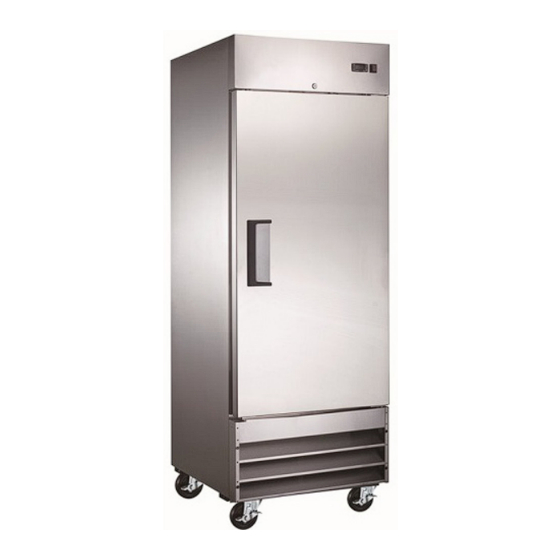

- Page 1 Aurora Refrigeration Models FR-CN-0737E-HC, 1372E-HC, RE-CN-0021E-HC Items 59023, 59025, 59024 Instruction Manual Revised - 02/09/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FR-CN-0737E-HC / Model FR-CN-1372E-HC / Model RE-CN-0021E-HC Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Maintenance ----------------------------------------------------------------------------------- 9 - 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11 Parts Breakdown... -
Page 3: Disclaimer
Disclaimer Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 5. Handle with caution during transportation, the unit can only be leaned a maximum of 45°. 6. When encountering problems, please refer to the Troubleshooting section or call Omcan. Danger: Flammable refrigerant used. Do not use mechanical devices to defrost the unit. Do not puncture the refrigerant tubing.
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule Omcan authorized service technician to repair the equipment locally.
-
Page 8: Technical Specifications
Technical Specifications Model FR-CN-0737E-HC FR-CN-1372E-HC RE-CN-0021E-HC Temperature Range -22.2 to -17.8°C / -8 to 0°F 0.5 to 4.4°C / 33 to 40°F Max Ambient Temp 24°C / 75°F Rating Power 456 W 780 W 348 W Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated... -
Page 9: Installation
Installation • Please read through the manual in its entirety. CABINET LOCATION GUIDELINES INSTALL THE UNIT ON A STRONG AND LEVELED SURFACE • Unit may make unpleasant noises if surface is uneven. • Unit may malfunction if surface is uneven. INSTALL THE UNIT IN INDOOR, WELL VENTILATED AREA •... -
Page 10: Troubleshooting
Maintenance the fan motor to prevent moisture damage. CLEANING THE INTERIOR OF THE UNIT • When cleaning the cabinet interior, us a solvent of warm water and mild soap. • Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel surface. - Page 11 Troubleshooting Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to a lower temperature. Blocking air flow. Re-arrange product to allow for proper air flow. Make sure there is at least 4” of clearance from evaporator. Excessive amount of warm product Allow adequate time for product to placed in cabinet.
-
Page 12: Parts Breakdown
Parts Breakdown Model FR-CN-0737E-HC 59023... - Page 13 Parts Breakdown Model FR-CN-0737E-HC 59023 Item No. Description Position Item No. Description Position Item No. Description Position AF024 Cabinet for 59023 AF035 Inner Drain Pan Fixer for 59023 AI321 Condenser Fan Motor for 59023 AI316 Control Panel for 59023 AA969 Drain Hose for 59023 AB959 Outer Drain Pan for 59023...
- Page 14 Parts Breakdown Model FR-CN-1372E-HC 59025...
- Page 15 Parts Breakdown Model FR-CN-1372E-HC 59025 Item No. Description Position Item No. Description Position Item No. Description Position AJ133 Cabinet for 59025 AG553 Evaporator Cover for 59025 AM511 Compressor for 59025 AJ134 Control Panel for 59025 27186 Carel Controller IR33 for 59025 AG558 Cabinet Supporter for 59025 Evaporator Temperature Sensor for...
- Page 16 Parts Breakdown Model RE-CN-0021E-HC 59024...
- Page 17 Parts Breakdown Model RE-CN-0021E-HC 59024 Item No. Description Position Item No. Description Position Item No. Description Position AJ129 Cabinet for 59024 AG448 Evaporator Fan Motor for 59024 20, 36 AB595 Filter Fixer for 59024 AJ130 Control Panel for 59024 AB109 Thermostat for 59024 AB594 Filter D25x160-B for 59024...
-
Page 18: Electrical Schematics
Electrical Schematics Model FR-CN-0737E-HC 59023 Model RE-CN-0021E-HC 59024... - Page 19 Electrical Schematics Model FR-CN-1372E-HC 59025...
-
Page 20: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 21 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
You can also register online by visiting: Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la carte au niveau de la perforation, puis l’envoyer à l’adresse spécifié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant: Gracias por comprar un producto Omcan usted. - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
