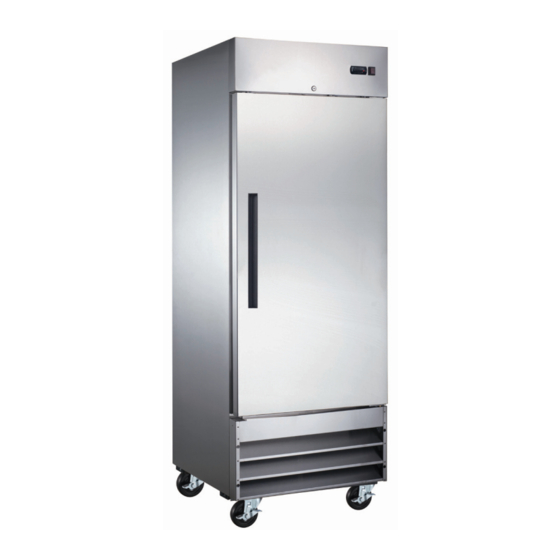

- Page 1 Aurora Freezer Model FR-CN-0737E-HC Item 59023 Instruction Manual Revised - 11/17/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FR-CN-0737E-HC Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Maintenance ----------------------------------------------------------------------------------- 9 - 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11 Parts Breakdown ---------------------------------------------------------------------------- 12 - 13 Electrical Schematics... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR... -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 5. Handle with caution during transportation, the unit can only be leaned a maximum of 45°. 6. When encountering problems, please refer to the Troubleshooting section or call Omcan. Danger: Flammable refrigerant used. Do not use mechanical devices to defrost the unit. Do not puncture the refrigerant tubing.
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 8: Technical Specifications
Technical Specifications Model FR-CN-0737E-HC Temperature Range -22 to -18°C / -7.6 to -0.4°F Max Ambient Temp 32°C / 90°F Rating Power 1/2 HP Electrical 115V / 60Hz / 1 Current 7.1A Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Number Of Shelves Shelf Capacity 88.2 lbs. -
Page 9: Installation
Installation INSTALL THE UNIT IN AN INDOOR, WELL VENTILATED AREA • Unit performs more efficiently in a well ventilated area. • For best performance, please maintain a clearance of 4” from the back of the unit. • Not to be used outdoors. AVOID INSTALLATION IN A HIGH HUMIDITY AND/OR DUSTY AREA •... -
Page 10: Troubleshooting
Maintenance door, soak in warm water and soap for thirty (30) minutes, dry with a soft cloth and replace. • Check door gaskets for proper seal after they are replaced. • Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water. To remove the pilasters, first remove the shelves and shelf brackets. - Page 11 Troubleshooting Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to a lower temperature. Blocking air flow. Re-arrange product to allow for proper air flow. Make sure there is at least 4” of clearance from evaporator. Excessive amount of warm product Allow adequate time for product to placed in cabinet.
-
Page 12: Parts Breakdown
Parts Breakdown Model FR-CN-0737E-HC 59023... - Page 13 Parts Breakdown Model FR-CN-0737E-HC 59023 Item No. Description Position Item No. Description Position Item No. Description Position AF024 Cabinet for 59023 AF035 Inner Drain Pan Fixer for 59023 AI321 Condenser Fan Motor for 59023 AI316 Control Panel for 59023 AA969 Drain Hose for 59023 AB959 Outer Drain Pan for 59023...
-
Page 14: Electrical Schematics
Electrical Schematics Model FR-CN-0737E-HC 59023... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
