Summary of Contents for Omcan RS-CN-0078-S

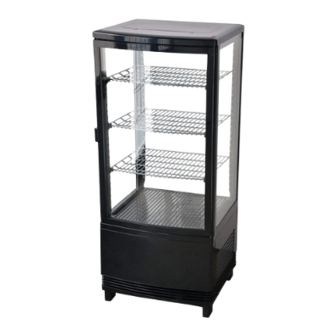

- Page 1 Desktop Refrigeration Displays Models RS-CN-0078-S, 0078-D Items 25826, 25827 Instruction Manual Revised - 11/30/2016 Locally QPS Approved Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RS-CN-0078-S / Model RS-CN-0078-D Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Handling and Assembly ----------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Now check the box content and make sure it corresponds to what shown on the external label. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model RS-CN-0078-S RS-CN-0078-D Coolant and Injection Quantity R134a (83g) General Rated input power... -
Page 7: Operation
Handling and Assembly Sufficient space Well ventilated The distance from both sides and back of refrigerator Always locate the refrigerator in an area with good to wall or other substance must be no less than ventilation. When using for the first time, wait for 24 10cm. -
Page 8: Maintenance
Operation may decrease. The range of the controller is shown, which is divided into settings of “LOW, MID, HIGH and FREEZE”. The temperature inside the refrigerator decrease if the knob is turned clockwise while the temperature goes up the knob is turned anti-clockwise. Maintenance Keep the refrigerator clean and periodic maintenance is necessary. - Page 9 The refrigerator is not level. The refrigerator touches the wall or other objects. There is a loose part in the refrigerator. Contact an Omcan service agent for help if simple troubleshooting does not solve the problems. The following situations are not problems: •...
-
Page 10: Parts Breakdown
Parts Breakdown Model RS-CN-0078-S 25826... - Page 11 Parts Breakdown Model RS-CN-0078-S 25826 Item No. Description Position Item No. Description Position Item No. Description Position 30563 Base Foot for RT78L-1R 30601 Pole for RT78L-1R 30593 Light Tube for RT78L-1R 30621 Power Cord for RT78L-1R 30584 Door Glass for RT78L-1R...
- Page 12 Parts Breakdown Model RS-CN-0078-D 25827...
- Page 13 Parts Breakdown Model RS-CN-0078-D 25827 Item No. Description Position Item No. Description Position Item No. Description Position 30626 Base Foot for RT78L-2R 30585 Front Pole for RT78L-2R 30656 Ballast for RT78L-2R 30621 Power Cord for RT78L-2R 30661 Pole for RT78L-2R 30667 Fan Blade for RT78L-2R 30628...
-
Page 14: Electrical Schematics
Electrical Schematics Model RS-CN-0078-S 25826 Model RS-CN-0078-D 25827... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
