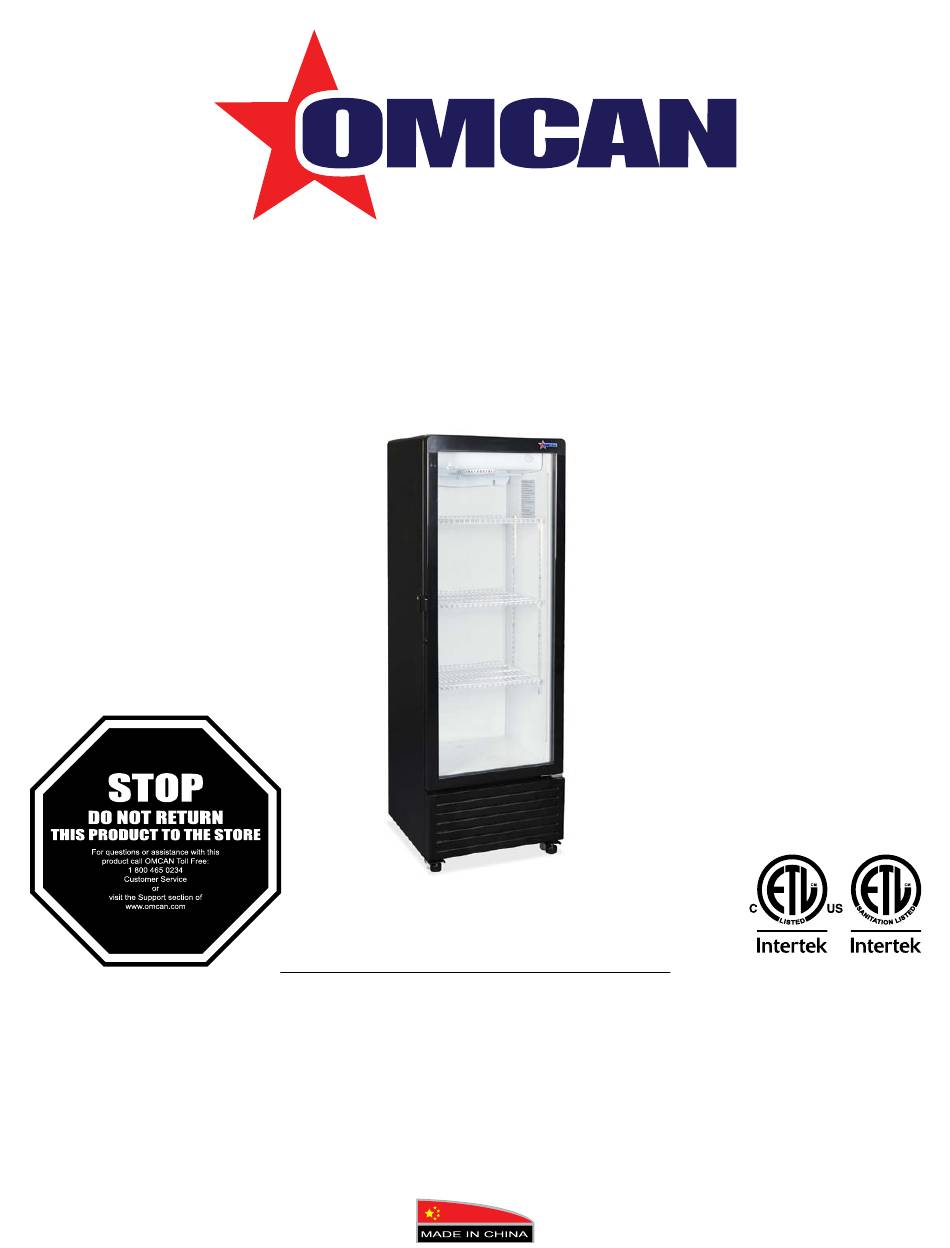

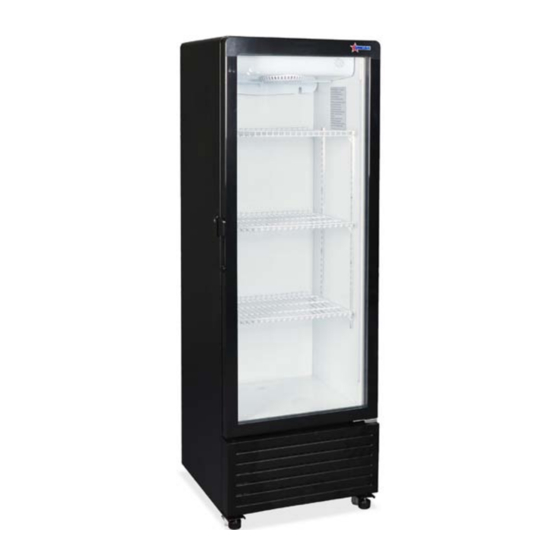

- Page 1 Glass Door Refrigeration Models RE-CN-305, 215, 145 Items 47460, 47586, 47563 Instruction Manual Revised - 08/10/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RE-CN-305 / Model RE-CN-215 / Model RE-CN-145 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 9 Technical Specifications ------------------------------------------------------------------------- 10 Installation ------------------------------------------------------------------------------------ 10 - 11 Operation -------------------------------------------------------------------------------------------- 11... -
Page 3: Disclaimer
Disclaimer OMCan Is nOT RespOnsIble fOR any DaMaGes Due TO waTeR leaks. waRRanTy fOR waTeR leaks Is vOID If The aMbIenT ROOM TeMpeRaTuRe exCeeDs 75°f anD 55% RelaTIve huMIDITy, anD The applIanCe DRaIn Is nOT COnneCTeD DIReCTly TO a flOOR DRaIn. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 safety and warranty 3. Strong base, strong acid, organic solvent and corrosive goods or those are easy to pollute to food are prohibited storing in the cooler; otherwise, it can cause corrosiveness or accident. 4. Don’t raise the cooler or the shell of the electric parts, or it will cause the decline in insulation and cause corrosion.
- Page 7 safety and warranty means of a person responsible for their safety, with suitable monitoring or instructions about the use of the equipment. Children must be monitored to ensure they do not play with the equipment. • Warning! Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
- Page 8 safety and warranty • The appliance is to be installed in accordance with the Safety Standard for Refrigeration Systems, ANS\/ ASHRAE 15. • Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other adverse environmental effects.
- Page 9 2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 10: Technical Specifications
Technical Specifications Model RE-CN-305 RE-CN-215 RE-CN-145 Volume 285 L / 10.1 cu.ft. 217 L / 7.7 cu.ft. 140 L / 4.9 cu.ft. Door Frame Refrigerant R600a / 1.69g R600a / 1.48g R600a / 1.27g Temperature Range 0 - 10°C / 32 - 50°F Max Ambient Temp Rat- 24°C / 75°F... -
Page 11: Installation
Installation following are recommended: • The unit is not to be placed near any kind of heat source. • The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/ or windows. •... -
Page 12: Maintenance
Maintenance Caution: to ensure safety, the power plug must be pulled out before cleaning. CLEANING OF THE UNIT For cleaning the unit’s internal plastic parts, use a light solution of soap and water. Do not apply hard chemical detergents on the plastics as they may lose their brightness or even get deformed. The same applies to the external metallic surfaces. - Page 13 Troubleshooting Condenser fan is working, but the The plug of starter or heat relay is Install the starter or heat relay. compressor doesn’t operate. loose. Compressor defective. Change new compressor. Voltage is lower than 97V or higher Use a voltage stabilizer. than 130V.
-
Page 14: Parts Breakdown
Model Re-Cn-305 47460 Model Re-Cn-215 47586 Model Re-Cn-145 47563... - Page 15 Model Re-Cn-305 47460 Item No. Description Position Item No. Description Position Item No. Description Position AN229 Evaporator for 47460 AN239 Knob for 47460 AN249 Switch Cover for 47460 AN230 Thermostat for 47460 AN272 Shelf for 47460 AN276 Castor for 47460...
- Page 16 parts breakdown Model Re-Cn-145 47563 Item No. Description Position Item No. Description Position Item No. Description Position AN229 Evaporator for 47563 AN239 Knob for 47563 AN249 Switch Cover for 47563 AN230 Thermostat for 47563 AN240 Shelf for 47563 AN250 Castor for 47563 AN231 Rack for 47563 AN241...
-
Page 17: Electrical Schematics
Model Re-Cn-305 47460 Model Re-Cn-215 47586 Model Re-Cn-145 47563... -
Page 18: Notes
notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 19: Warranty Registration
Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
