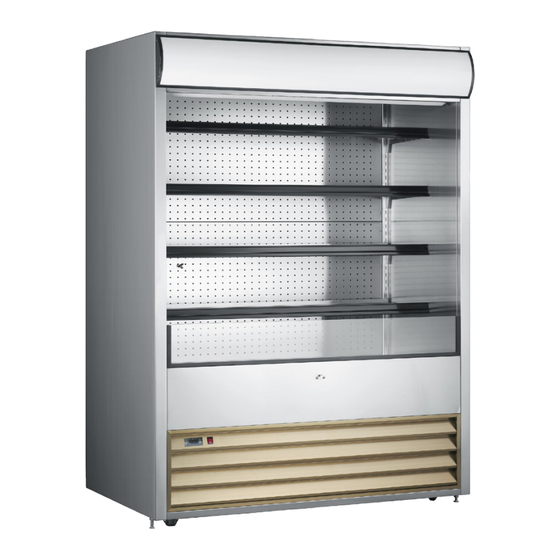

Omcan RS-CN-0530 Instruction Manual
Refrigerated showcases
Hide thumbs
Also See for RS-CN-0530:
- Instruction manual (20 pages) ,
- Instruction manual (16 pages) ,
- Instruction manual (24 pages)
Related Manuals for Omcan RS-CN-0530
Summary of Contents for Omcan RS-CN-0530
- Page 1 Refrigerated Showcases Models RS-CN-0530, 0700, 1050 Items 43459, 41469, 43460 Instruction Manual Revised - 10/04/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RS-CN-0530 / Model RS-CN-0700 / Model RS-CN-1050 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 6 - 7 Maintenance ----------------------------------------------------------------------------------------- 8 Troubleshooting -------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not improper use.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model RS-CN-0530 RS-CN-0700 RS-CN-1050 Rated Input Power 1340W 2650W... -
Page 7: Operation
Operation DIGITAL TEMPERATURE CONTROLLER FEATURES OF FUNCTION • Small, integrated digital controller, which is applicable to the compressor of 1 Hp. Located behind the front grill. • Main functions are: Temperature Display/Temperature Control/Manual-Automatic /Light Control/Value Storing/Self-Testing/Parameter Locking. FRONT PANEL OPERATION 1. -
Page 8: Maintenance
Power on. normal operation. Melting process. Stop melting. Refrigerant leaking. Patch the leak and refill refrigerant. Unit failure. Call Omcan. Weak air from air curtain, Evaporator blocked by frost. Increase melting frequency. and higher cabinet Inside fan damaged. Replace the fan. - Page 9 Simply use cloth to wipe it off. REFERENCE Item Number Model Number Description Manufacturer Model Number Refrigerated Showcase 530 L / 18.7 cu ft 43459 RS-CN-0530 RTS-530L 120V/60/1 Refrigerated Showcase 700 L / 24.7 cu ft 41469 RS-CN-0700 RTS-700L 220V/60/1 Refrigerated Showcase 1050 L / 37.1 cu ft...
-
Page 10: Parts Breakdown
Parts Breakdown Model RS-CN-0530 43459... - Page 11 Parts Breakdown Model RS-CN-0530 43459 Item No. Description Position Item No. Description Position Item No. Description Position 67641 Compressor for RTS-530L 60612 Lower Back Plate for RTS-530L 67644 Glass Deflector for RTS-530L Decoration Strip of Glass Deflector for 60587 Water Receiver for RTS-530L...
- Page 12 Parts Breakdown Model RS-CN-0700 41469...
- Page 13 Parts Breakdown Model RS-CN-0700 41469 Item No. Description Position Item No. Description Position Item No. Description Position 70137 Compressor for RTS-700L 67658 Upper Back Plate for RTS-700L 67666 Glass Deflector for RTS-700L Upper or Lower Ventilated Board for 67651 Water Receiver for RTS-700L 70100 70151 Strip of Glass Deflector for RTS-700L...
- Page 14 Parts Breakdown Model RS-CN-1050 43460...
- Page 15 Parts Breakdown Model RS-CN-1050 43460 Item No. Description Position Item No. Description Position Item No. Description Position 70137 Compressor for RTS-1050L 60613 Dead Plate of Rear Foam for RTS-1050L 60709 Price Tag Holder for RTS-1050L Decorating Strip of Glass Deflector for 60678 Mesh Guard in Base for RTS-1050L 60614...
-
Page 16: Electrical Schematics
Electrical Schematics Model RS-CN-0530 43459... - Page 17 Electrical Schematics Model RS-CN-0700 41469...
-
Page 18: Electrical Schematics
Electrical Schematics Model RS-CN-1050 43460... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
