AVProEdge AC-MX42-AUHD Quick Start Manual

AC-MX42-AUHD
18 Gbps True 4K60 4:4:4 8 x8 HDMI Matrixng
Quick Start Guide

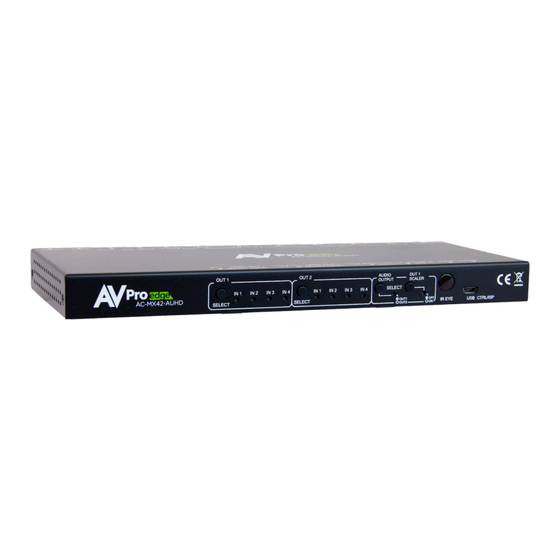

The AC-MX42-AUHD is a true 4x2 HDMI matrix switch. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K
video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray,
satellite receiver, game consoles, PCs, etc ... ) to be shown on any of the connected displays. This
matrix equalizes and amplifies the output to ensure the HDMI signal can be transmitted through long
HDMI cables without loss of quality.The AC-MX42-AUHD is ideal for bypassing AVR's that do not support
full 18Gbps. You can bypass uncompressed HDMI to the display while running down-scaled video into
a legacy AVR. Only video is reduced and audio remains untouched, making it an ideal component for
systems where high bit rate audio is critical. Conference room all-star. The auto-switching feature
makes this unit an ideal, affordable, component for any conference room system. Ideal for feeding a
video signal into a video conferencing codec with very little setup.This is an ideal solution for digital
entertainment centers, HDTV retail, show sites, data centers, schools, conference and training
centers and more!
This quick start guide will be going through:
•

Installation

• Front/rear Panel Control
• Edid Management
• IR & RS-232 Control
• LAN Control
• Troubleshooting
Quick Installation:
1.Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX42-AUHD.
2.Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the
AC-MX42-AUHD.
3.Power on the sources.
4.Connect the power supply into the AC-MX42-AUHD.
5.Turn on output devices/displays.
6.Use the front panel controls, supplied IR remote or free LAN (IP: 192.168.001.239) to
control the matrix.
