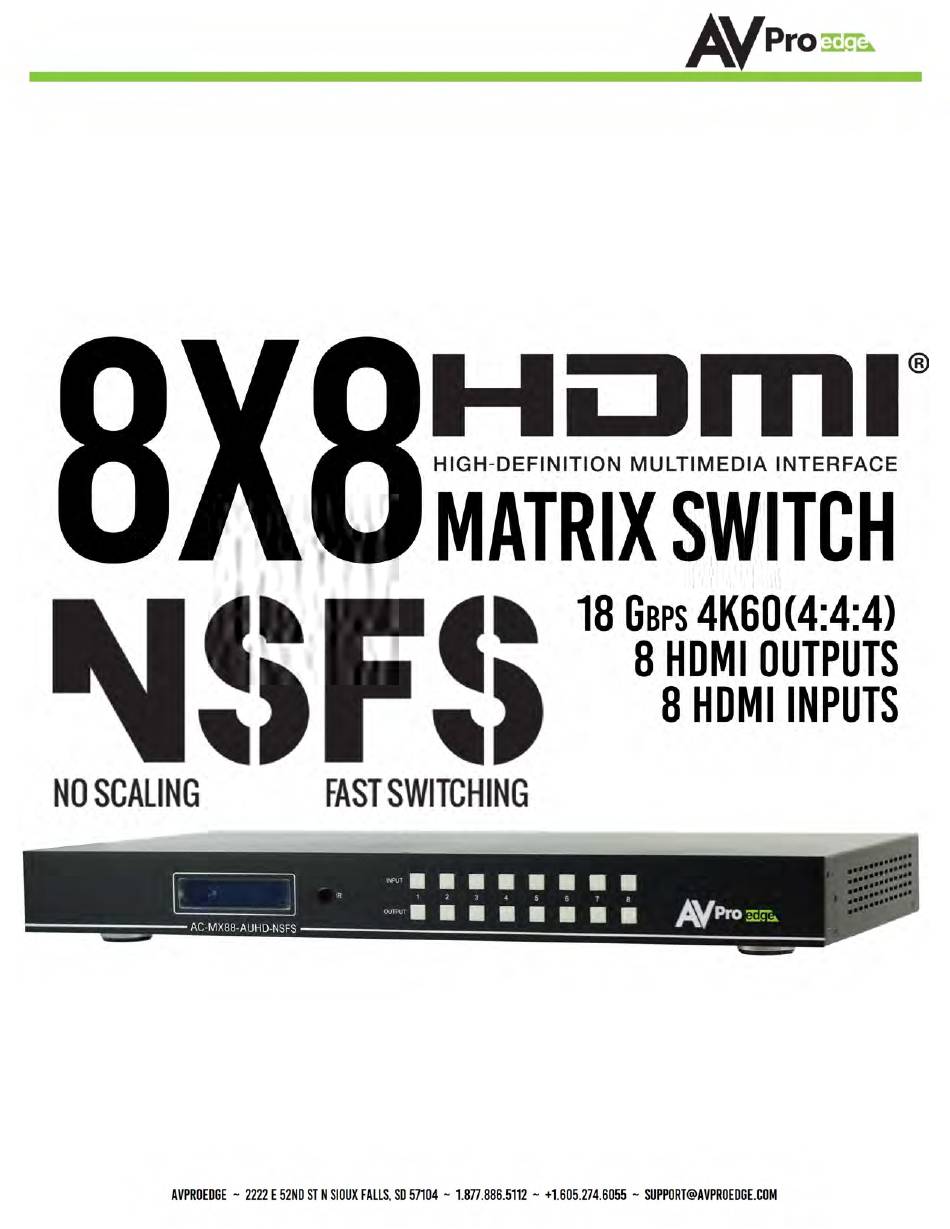

- Page 1 AC-MX88-AUHD-NSFS USER MANUAL AC-MX88-AUHD-NSFS Page 1...
-
Page 2: Quick Installation

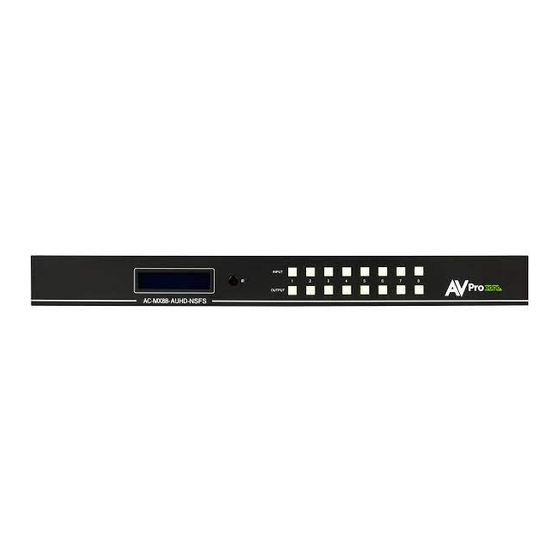

AC-MX88-AUHD-NSFS Introduction: The AC-MX88-AUHD-NSFS is a true 18Gbps 4K60 (4:4:4) 8x8 HDMI matrix switch. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ... ) to be shown on any of the connected displays. - Page 3 AC-MX88-AUHD-NSFS Contents Page 3...
-
Page 4: Device Overview
AC-MX88-AUHD-NSFS Device Overview: • Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time. Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner. Additionally, since most venues have both, audio zones and video zones, the requirement to breakout or strip off the audio is often necessary and has become almost a standard feature on most matrix switches. - Page 5 AC-MX88-AUHD-NSFS Page 5...
-
Page 6: Front Panel Control
Front Panel Control Switching: The AC-MX88-AUHD-NSFS can be switched from the front panel by selecting the OUTPUT button first and then selecting the INPUT button: Press the button (1 through 8) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send to a source. -
Page 7: Edid Management
AC-MX88-AUHD-NSFS EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232. - Page 8 AC-MX88-AUHD-NSFS EDID Management Cont: The first 29 EDID settings cannot be altered. The three USER EDID settings are programmed using RS-232, web interface, or the free PC Software. However, you can read an EDID from any output and it will automatically store in USER EDID 1.
- Page 9 AC-MX88-AUHD-NSFS Web Interface: Switching Use this page to switch between inputs and outputs from the web interface. Page 9...
- Page 10 AC-MX88-AUHD-NSFS Web Interface: Audio Settings Audio Status: This allows the user to turn ON and OFF the extracted audio output. When this is set to OFF the audio is muted from the extracted port. Audio Matrix: This allows the user to route the audio in a matrix fashion for the extracted audio ports.
- Page 11 AC-MX88-AUHD-NSFS Web Interface: EDID Management Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize sources or to manage infrastructure.
-
Page 12: Web Interface: System Settings
AC-MX88-AUHD-NSFS Web Interface: System Settings IP Settings: Port Alias Settings: Set network settings such Rename inputs and outputs for easy management. Each custom name is limited to eight (8) characters. Page 12... -
Page 13: Ir Remote Control
IR remote supplied with the product. The left arrow button decrements to the Figure 2 ~ AC-MX88-AUHD-NSFS IR Remote next lower input port, and the right arrow increments to the next input port. Additionally, the supplied IR Extension Cable can provide a different receiver position. -
Page 14: Rs-232 And Tcp/Ip Commands
AC-MX88-AUHD-NSFS RS-232 and TCP/IP Commands: The AC-MX88-AUHD-NSFS can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. - Page 15 "SET DHCP 0" 9. You can verify the settings by getting the status of the matrix a. "GET STA" AVPROEDGE - 2222 E 52ND ST N SIOUX FALLS. SD 57104 - 1.877.886.5112 - + 1.605.274.6055 - SUPPORT@AVPROEDGE.COM Page 15...
- Page 16 AC-MX88-AUHD-NSFS RS-232 and TCP/IP Commands: Page 16...
-
Page 17: Specifications
AC-MX88-AUHD-NSFS Specifications: NOTE: HDR (High Dynamic Range) is supported on these matrix switchers. you mus read EDID from and HDR capable display and store it to to the input where the HDR source resides. Page 17... -
Page 18: Safety Instructions
• Damage to the product due to incorrect usage or storage • Damage caused by unauthorised repairs • Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting AVProEdge Page 18... -
Page 19: Application Diagram
AC-MX88-AUHD-NSFS Application Diagram: Audio De-Embedding Diagram Page 19... -
Page 20: Troubleshooting
AC-MX88-AUHD-NSFS Troubleshooting • Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied. Check that both power supplies are connected to the matrix and powered • Verify Connections - Check that all cables are properly connected •... -
Page 21: Maintenance
AC-MX88-AUHD-NSFS Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 22: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with... - Page 23 AC-MX88-AUHD-NSFS _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 23...
- Page 24 AC-MX88-AUHD-NSFS _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 24...
- Page 25 AC-MX88-AUHD-NSFS Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 25...
