Summary of Contents for AVProEdge AC-MX88-AUHD-HDBT-GEN2

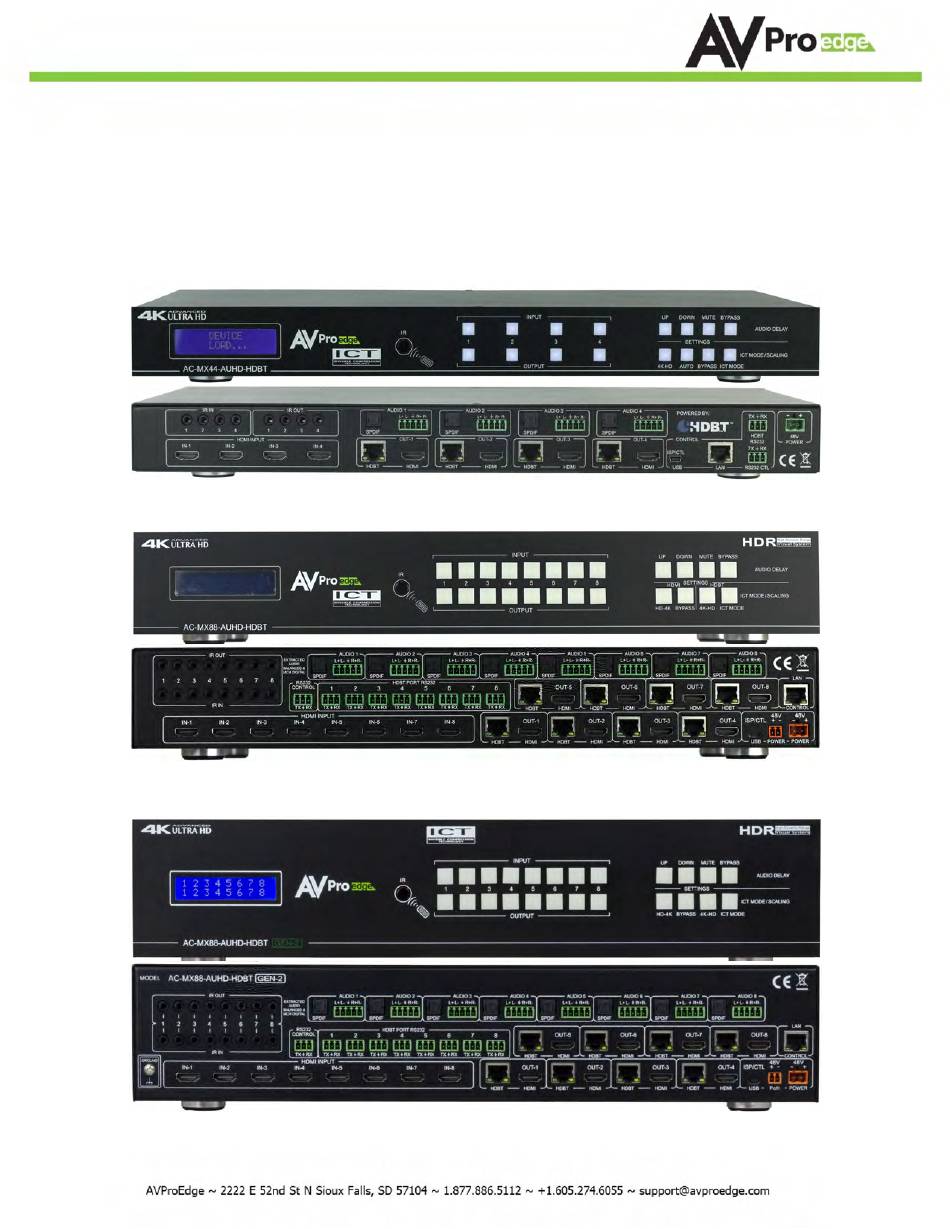

- Page 1 User Manual 18 Gbps True 4K60 4:4:4 4x4 HDMI Matrix w/ Mirrored 18Gbps (Using ICT) HDBaseT Outputs. 70 Meters 4K 60 4:4:4 & HDR / 100 Meters 1080P. Dual Audio De- Embedding, Scaling & Audio Delay. AC-MX44-AUHD-HDBT AC-MX88-AUHD-HDBT AC-MX88-AUHD-HDBT-GEN2 Page 1...
-
Page 2: Easy To Use
The AC-MX44/88-AUHD-HDBT is a true HDMI/HDBaseT matrix switch. This unit includes 4/8 HDMI inputs, and 4/8 HDMI/ HDBaseT output blocks. These output blocks include a HDBaseT and HDMI port, these ports are mirrored, and both are active. This Matrix supports HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth. We are able to pass 18Gbps through category cable by using the new HDBaseT technology we have developed called "ICT", learn more about ICT below. -
Page 3: Specifications
Specifications Page 3... -
Page 4: Device Overview
Device Overview: • Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time. Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner. Additionally, since most venues have both, audio zones and video zones, the requirement to breakout or strip off the audio is often necessary and has become almost a standard feature on most matrix switches. - Page 5 AC-EX70-444-RNE: (W/ICT) AC-EX70-UHD-R: • 70M 4K 60 4:4:4 & HDR 40M 4K 60 4:2:0 • • 100M 1080P 70M 1080P • NOTE: You MUST use this receiver to get 18Gbps ICT Video Indicator Troubleshooting Lights on the HDBaseT Port on Matrix and Receiver: LINK - Above RJ45 (HDBT) Port &...
- Page 6 Common Application Diagram & What Is ICT: Page 6...
- Page 7 Full List of Quick Commands From Front Panel: NOTE: A factory reset may be performed by pressing and holding 4 buttons together for 10 seconds. Press and hold: • HD-->4K (Scaler Settings) • 4K-->HD (Scaler Settings) • MUTE (Audio Delay Settings) •...
-
Page 8: Front Panel Control
Front Panel Control Switching: The AC-MX44-AUHD-HDBT can be switched from the front panel by selecting the OUTPUT button first and then selecting the INPUT button: Press the button (1 through 4) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send to a source. - Page 9 Audio Binding Setup: The AC-MX44-AUHD-HDBT can be configured to extract audio in 3 ways • Bind to OUTPUT(Default) • Bind to INPUT • Matrix To Set: Press and hold (3 sec) BYPASS from the audio settings (top right of machine). Toggle selection by pressing the "UP"...
-
Page 10: Audio Delay Control
Audio Delay Control: The AC-MX88/44-AUHD has an Audio Delay feature built-in. Audio Delay is set on the extracted audio OUTPUT (Digital and Analog) of the switch and each can have separate settings. The Audio Delay has 4 controls: • UP (Increase Delay) •... -
Page 11: Audio Wiring Diagram
Audio Wiring Diagram: Page 11... -
Page 12: Edid Management
EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232. - Page 13 Display IP Data: In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simultaneously. This screen will change every 3 seconds showing additional settings (host, net mask, router IP). NOTE: This screen always starts with the current IP address of the matrix: In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons simultaneously.
- Page 14 Web Interface: Switching Use this page to switch between inputs and outputs from the web interface. Page 14...
-
Page 15: Image Enhancement
Web Interface: Video Setting HDMI Video Scaler Modes: With the video scaler mode, you can scale each HDMI output independently • BYPASS = Bypass - Scaler is disabled (Default) • HD-4K = 2K --> 4K - If the incoming signal is 1080P it will be upscaled to 4K. HDBT Video Scaler Modes: With the video scaler mode, you can scale each HDBaseT output independently •... - Page 16 Web Interface: Audio Settings EX-Audio Delay: This setting allows the user to change the audio delay to overcome lip-sync issues when using audio separate from HDMI. The user can choose from the above options in milliseconds. Bp = Bypass or No Delay. Delay can be different per audio output port.
- Page 17 Web Interface: EDID Manage EDID Manage: Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize or to manage infrastructure. The EDID options are: 1.
-
Page 18: Web Interface: System Settings
Web Interface: System Settings IP Settings: Set network settings such as: • Static IP • Subnet Mask • Router IP • TCP Port • Enable DHCP Port Alias Settings: Rename inputs and outputs for easy management. Each custom name is limited to eight (8) characters. Page 18... - Page 19 Web Interface: IR Routing IP Switch: This allows you to route the IR Signals on the IR outputs manually if you want to fix a specific route Page 19...
-
Page 20: Ir Remote Control
IR Control: For IR Control there is an IR Window on the front face of the device. IR Receiver Eye IR Remote Control: When routing HDMI, the matrix can be controlled by using the IR remote supplied with the product. The labels on the left are the OUTPUT numbers. - Page 21 IR HDBaseT Routing: IR NOTES (On the Matrix): 1. By default the IR IN is routed to the corresponding HDBaseT Output number (ie. IR IN #1 --> HDBaseT Output 1, IR IN #2 --> HDBaseT Output 2, etc...) 2. By default the IR OUT is automatically routed with the active source (ie. If you are watching INPUT 3 on HDBaseT OUTPUT 1, when you point a remote at an IR Receiver on the HDBaseT Rx connected the signal will be routed to IR OUT 3) 3.
-
Page 22: Rs-232 And Tcp/Ip Commands
RS-232 and TCP/IP Commands: The AC-MX88/44-AUHD-HDBT can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. TFor TCP/IP control commands use Telnet Port 23. - Page 23 RS-232 Commands cont.: Page 23...
- Page 24 RS-232 to HDBaseT Output Receivers: RS232 Broadcast Mode: RS232 Broadcast Mode is a very simply way to implement things like "ALL ON" and "ALL OFF" for displays in a system. Broadcast Mode allows you simply pass RS232 signals through without having to use advanced routing details like baud rate.
- Page 25 Device Addresses When Using Serial Communication: NOTE: Only set device address when cascading multiple units together and using RS232 as your control method! You also have to send the device address when doing advanced routing while sending commands by serial (next page) even if it is default "A00".
- Page 26 How to route RS232 Commands when using serial: The routing command is very straight forward but you have to take care to make sure you format it correctly. The main thing to consider before you begin: 1. You are actually sending 2 commands (route & device command) so depending on what you are using to send the command the format varies slightly - We show some examples below.
-
Page 27: Command Examples
Command Examples: Using A Terminal Program (RS232): In the following example we are using a program called MYUART Assist. We make this program freely available form www.avproconnect.com. You will notice in the example that it is on 2 lines. This is because you have to separate the commands with a return. The command below was sent through the HDBaseT Rx on Output 5 to successfully "Power On"... - Page 28 Using TELNET (IP): On Controls Examples Green = Route Command Red = Command to be sent to device This first example is when sending an ASCII Command \x0DA01SET RS PTH OUT1 LEN17 BR4\x0D\x0A\x0DSET OUT4 VS IN5\x0A\x0D\x0D You can also convert to pure HEX and send a command this way: \x0A\x41\x30\x31\x53\x45\x54\x20\x52\x53\x20\x50\x54\x48\x20\x4F\x55\x54\x31\x20\x4C\x45\x4E \x31\x37\x20\x42\x52\x34\x0D\x0A\x53\x45\x54\x20\x4F\x55\x54\x32\x20\x56\x53\x20\x49\x4E\x32 \x0D\x0A...
-
Page 29: Maintenance
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 30: Safety Instructions
Safety Instructions: To ensure reliable operation of this product and to protect the safety of any person(s) handling this device while powered, please observe the following instructions: 1. Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device that it's connected to. -
Page 31: Troubleshooting
Troubleshooting • Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied. Check that both power supplies are connected to the matrix and powered • Verify Connections - Check that all cables are properly connected •... - Page 32 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 32...
- Page 33 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 33...
- Page 34 Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
