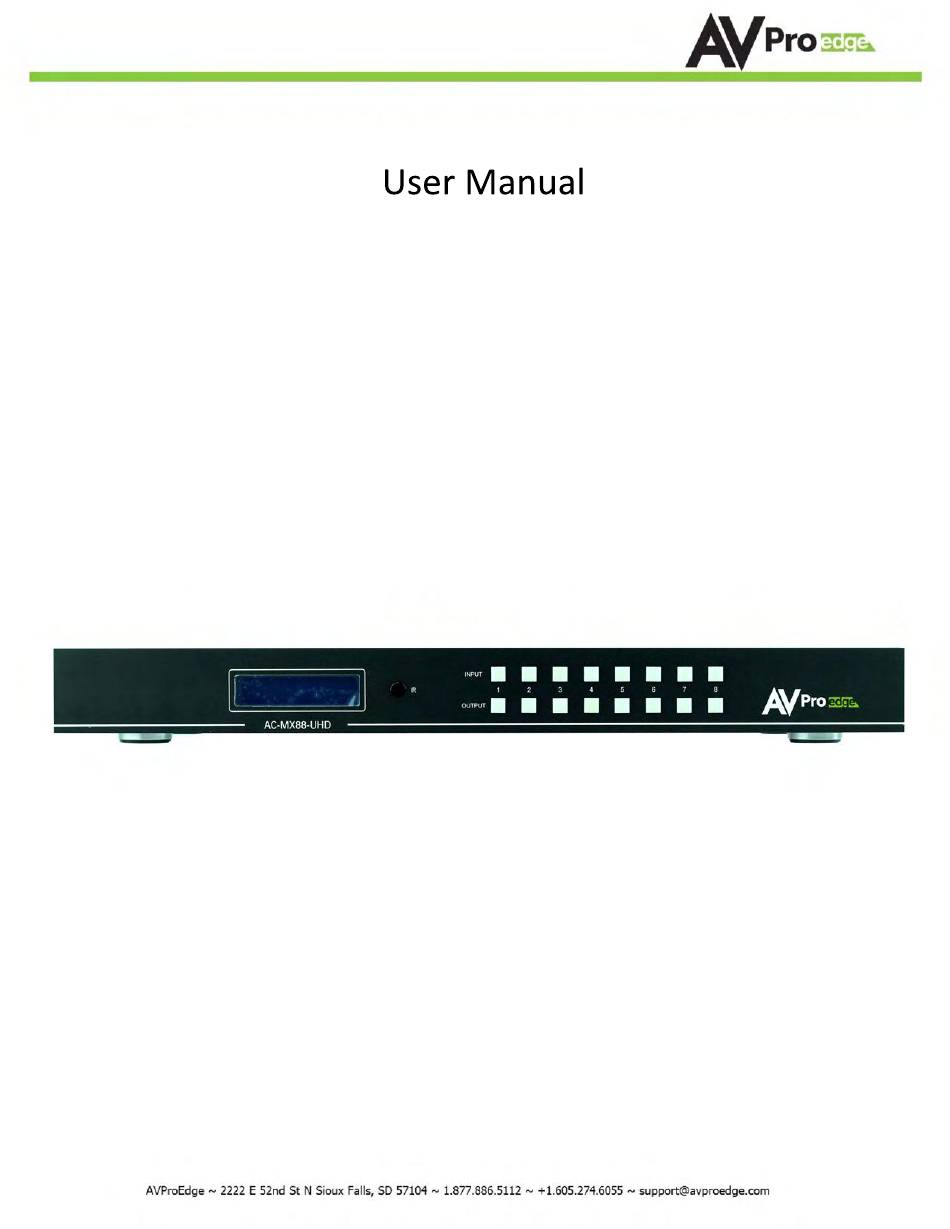

  • Page 1 AC-MX88-UHD AC-MX88-UHD 8x8 HDMI Matrix w/ Audio De-Embedding 4K 60Hz, HDMI 2.0 and HDCP 2.2 Compatible Page 1...

  • Page 2: Device Overview

    AC-MX88-UHD The AC-MX88-UHD is a true 8x8 HDMI matrix switch. Supporting HDMI 2.0, HDCP 2.2, up to 4K video resolution, and up to 10.2 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc...) to be shown on any of the connected displays.

  • Page 3: Quick Installation

    • 12V/3A Locking Power Supply • Instruction Manual Quick Installation: 1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-UHD 2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX88-UHD 3. Power on the sources 4.

  • Page 4: Ir Remote Control

    Figure 2 ~ AC-MX88-UHD IR Remote Additionally, the supplied IR Extension Cable can provide a different receiver position. Just plug into the IR Extension Socket on the back of the matrix and place the receiver in a more convenient location.

  • Page 5: Edid Management

    AC-MX88-UHD EDID Management: This matrix has 12 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232.
  • Page 6 AC-MX88-UHD EDID Management Cont: The first 12 EDID settings cannot be altered. The three USER EDID settings are programmed using RS-232 or the free PC Software. However, you can read an EDID from any output and it will automatically store in USER EDID 1.
  • Page 7 AC-MX88-UHD RS-232 Commands: The AC-MX88-UHD can also be controlled using RS232 commands, and some configuration settings can only be performed using RS232 commands. The same commands can be sent to the matrix using Ethernet as IP commands The serial port settings should be set to: 57600,n,8,1 (baud:57600, no parity, 8 data bits and 1 stop bit) with no handshaking.

  • Page 8: Other Commands

    AC-MX88-UHD IP Set-Up Commands: Get Status Commands: Other Commands: Page 8...

  • Page 9: Specifications

    AC-MX88-UHD Specifications: AC-MX88-UHD SPDIF audio Outputs 5.3lbs HDCP 2.2 and earlier HDCP Versions 10.2 Gbps NOTE: HDR (High Dynamic Range) is supported on these matrix switchers. you mus read EDID from and HDR capable display and store it to to the input where the HDR source resides.

  • Page 10: Safety Instructions

    • Damage to the product due to incorrect usage or storage • Damage caused by unauthorised repairs • Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting AVProEdge Page 10...

  • Page 11: Application Diagram

    AC-MX88-UHD Application Diagram: Page 11...
  • Page 12 AC-MX88-UHD Audio De-Embedding Diagram Page 12...
  • Page 13 AC-MX88-UHD Using the Free PC Software: General Matrix Control Page 13...
  • Page 14 AC-MX88-UHD Using the Free PC Software: EDID Management Page 14...
  • Page 15 AC-MX88-UHD Using the Free PC Software: IP Settings Page 15...
  • Page 16 AC-MX88-UHD Web Interface: Switching Use this page to switch between inputs and outputs from the web interface. Page 16...
  • Page 17 AC-MX88-UHD Web Interface: Audio Settings Audio Status: This allows the user to turn ON and OFF the extracted audio output. When this is set to OFF the audio is muted from the extracted port. Audio Matrix: This allows the user to route the audio in a matrix fashion for the extracted audio ports.
  • Page 18 AC-MX88-UHD Web Interface: EDID Manage EDID Manage: Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize sources or to manage infrastructure.

  • Page 19: Web Interface: System Settings

    AC-MX88-UHD Web Interface: System Settings IP Settings: Port Alias Settings: Rename inputs and outputs for easy management. Set network settings such as: Each custom name is limited to eight (8) characters. • Static IP • Subnet Mask • Router IP •...

  • Page 20: Troubleshooting

    AC-MX88-UHD Troubleshooting  • Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied. Check that both power supplies are connected to the matrix and powered • Verify Connections - Check that all cables are properly connected •...
  • Page 21 AC-MX88-UHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 21...
  • Page 22 AC-MX88-UHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 22...
  • Page 23 AC-MX88-UHD Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 23...
