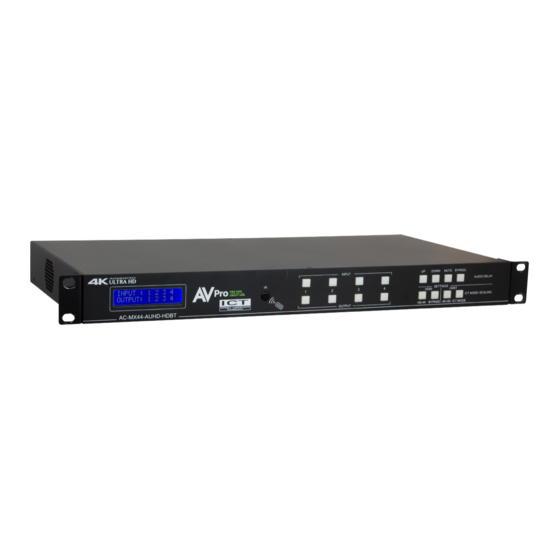

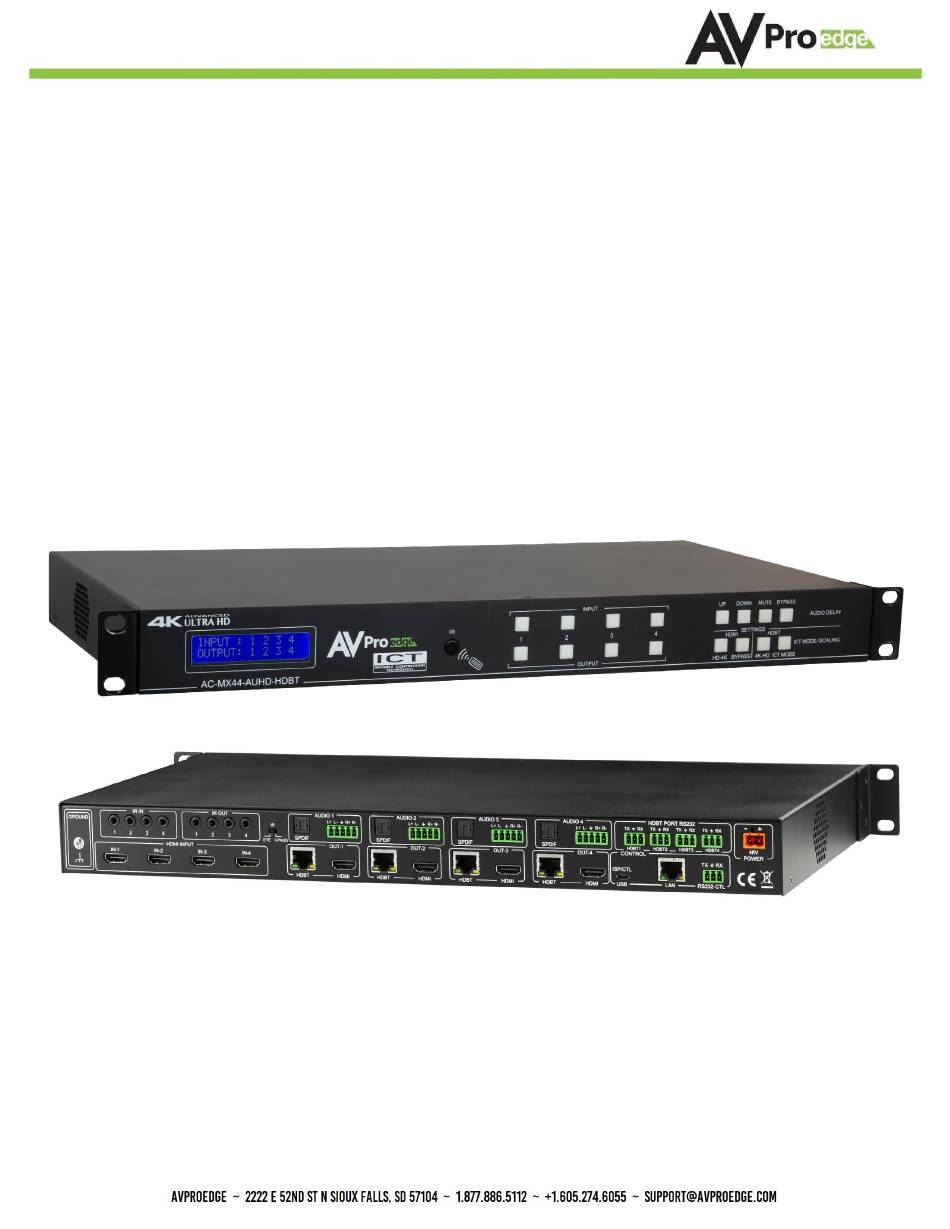

- Page 1 User Manual 18 Gbps True 4K60 4:4:4 HDBaseT 4x4 Matrix w/ Mirrored 18Gbps HDMI Outputs. 70 Meters 4K 60 4:4:4 & HDR / 100 Meters 1080P. Dual Audio De-Embedding, Scaling & Audio Delay. AC-MX44-AUHD-HDBT...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 F E AT U R E S �... - Page 3 T R O U B L E S H O O T I N G � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 0 B A N D W I T H C H A R T �...
-
Page 4: Introduction
Introduction The AC-MX44-AUHD-HDBT is a true HDMI/HDBaseT matrix switch� This unit includes 4/8 HDMI in- puts, and 4/8 HDMI/HDBaseT output blocks� These output blocks include a HDBaseT and HDMI port, these ports are mirrored, and both are active� This Matrix supports HDMI 2�0(a/b), HDCP 2�2, up to 4K video resolution, and up to 18 Gbps bandwidth�... -
Page 5: Specifications
Specifications... -
Page 6: Device Overview
Device Overview · Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time� Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner�... - Page 7 Front & Rear Panel...
-
Page 8: Front Panel Button Combinations
Front Panel Button Combinations... -
Page 9: Front Panel Control - Switching
Front Panel Control - Switching The AC-MX44-AUHD-HDBT can be switched from the front panel by selecting the desired OUTPUT button first, and then selecting the desired INPUT button� 1� Press the OUTPUT button (1 through 4) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send to a source�... -
Page 10: F R O N T P A N E L C O N T R O L - S C A L I N
Front Panel Control - Scaling The AC-MX44-AUHD-HDBT has scalers built into every output� The HDbaseT Ports can be DOWN- SCALED and the HDMI Ports can be UPSCALED� The scalers are set on the OUTPUT side of the switch and each can have separate settings�... -
Page 11: F R O N T P A N E L C O N T R O L - A U D I O B I N D I N
Front Panel Control - Audio Binding The AC-MX44-AUHD-HDBT can be configured to extract audio in 3 ways · Bind to OUTPUT(Default) · Bind to INPUT · Matrix To change from the default: 1� Press and hold (3 sec) BYPASS from the audio settings (top right of machine)�... -
Page 12: A U D I O M At R I X C O N T R O
Audio Matrix Control: Once in “Matrix” mode for audio, the extracted audio routing on the AC-MX44-AUHD-HDBT can be controlled from the front panel: To Control: 1� Press and hold (3 sec) BYPASS button from the audio settings (top right of machine)�... - Page 13 EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232� In addition, you can choose to read the EDID from the desired output and the captured EDID will automatically store and overwrite the EDID in “USER EDID 1”...
-
Page 14: D I S P L A Y I P I N F O R M At I O
Display IP Information: In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simultaneously� This screen will change every 3 seconds showing additional settings (host, net mask, router IP)� NOTE: This screen always starts with the current IP address of the matrix: In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons simultaneously�... -
Page 15: W E B I N T E R Fa C E : S W I T C H I N
Web Interface: Switching Use this page to switch between inputs and outputs from the web interface�... -
Page 16: W E B I N T E R Fa C E : L I N K I N F
Web Interface: Link Info Use this page to view the Video Info (Resolution, Timing, Color Space) of each of the 4 HDMI INPUTS�... -
Page 17: W E B I N T E R Fa C E : V I D E O S E Tt I N G
Web Interface: Video Settings HDMI Video Scaler Mode: With the video scaler mode, you can scale each HDMI output independently • BYPASS = Bypass - Scaler is disabled (Default)� • HD-4K = 2K --> 4K - If the incoming signal is 1080P it will be upscaled to 4K� HDBT Video Scaler Mode: With the video scaler mode, you can scale each HDBaseT output independently •... -
Page 18: W E B I N T E R Fa C E : A U D I O S E Tt I N G
Web Interface: Audio Settings EX-Audio Delay: This setting allows the user to change the audio delay to overcome lip-sync issues when using audio separate from HDMI� The user can choose from the above options in milliseconds� Bp = Bypass or No Delay. -
Page 19: W E B I N T E R Fa C E : I N P U T S E Tt I N G
Web Interface: Input Settings Input Port Status: The HDMI Input ports can be turned ON and OFF independently • ON = The Corresponding port will be powered on (DEFAULT)� • OFF = The corresponding port will be powered off. -
Page 20: W E B I N T E R Fa C E : E D I D M A N A G E M E N
Web Interface: EDID Management EDID Manage: Using the built-in EDID manager, a multitude of EDID’s can be set for each input, and each input can be assigned a different EDID. This should be used to optimize or to manage infrastructure. 1�... -
Page 21: W E B I N T E R Fa C E : S Y S T E M S E Tt I N G
Web Interface: System Settings IP Settings: · Static IP Here you can change network settings for the following: · Subnet Mask · Router IP · TCP Port · Enable DHCP Port Alias Settings: Here you can rename the inputs and outputs for easy management� Each custom name is limited to eight (8) characters�... -
Page 22: I R C O N T R O
IR Control: IR Remote Control: When routing HDMI, the matrix can be controlled by using the IR remote supplied with the product (battery not included, requires CR2025)� The labels on the left are the OUTPUT numbers� The left arrow button decrements to the next input port, and the right arrow increments to the next input port�... -
Page 23: I R C O N T I N U E
IR Continued: IR NOTES (On the Matrix): 1� By default the IR IN is routed to the corresponding HDBaseT Output number (ie� IR IN #1 --> HDBaseT Output 1, IR IN #2 --> HDBaseT Output 2, etc���) 2� By default the IR OUT is automatically routed with the active source (ie� If you are watching INPUT 3 on HDBaseT OUTPUT 1, when you point a remote at an IR Receiver on the HDBaseT Rx connected the signal will be routed to IR OUT 3) 3�... -
Page 24: R S - 2 3 2 A N D T C P / I P C O N T R O
The AC-MX1616-AUHD-HDBT can be controlled with either RS-232 or TCP/IP commands. Certain switching or format The AC-MX44-AUHD-HDBT can be controlled with either RS-232 or TCP/IP commands. Certain switching or format config- configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or urations can only be done using these commands�... -
Page 25: C O M M A N D L I S
Command List: · Baudrate: 57600 · Checksum: None · Bit Num: 8 · Stop Bit: 1... -
Page 26: C O M M A N D L I S T C O N T I N U E
Command List Continued:... -
Page 27: E X T R A C T E D A U D I
Extracted Audio: The extracted audio ports have three distinct operating modes� Your desired mode can be set to suite your particular installation� The 3 modes are: From Input ~ This is the default configuration. In this mode the audio port number corresponds to the INPUT signal. This is ideal for systems where audio is matrixed separately in a zoned amplifier. -
Page 28: A U D I O O U T P U T L O G I C A N D C A B L E P R E
2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems� No Down-mixing on this version, see AC-MX44-AUHD-HDBT-AVDM� Toslink Audio Port - Supports PCM, LPCM (up to 7CH), Dolby Digital, Dolby Digital Plus, DTS, DTS-HD, DTS Master Audio, which is ideal for multi-channel audio systems and older AVRs that do not support 18Gbps�... -
Page 29: T R O U B L E S H O O T I N
Troubleshooting · Verify Power - Check that the power supply is properly connected and on an active circuit� · Verify Connections - Check that all cables are properly connected� · TX/RX Indicator Troubleshooting Lights - Pg� 5-6 · IR Issues - Verify correct connections - P� 8-9 Note: Visibly flashing Emitters may not function properly, if you are experiencing issue try the IR Cables that come in the box�... -
Page 30: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions� · Use the power supplies provided� If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 31: S U P P O R
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it... - Page 34 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
