AVProEdge AC-MX-42X Quick Start Manual

FRL5 40G
Quick Start Guide
The AC-MX-42X is a Four Input, Two Output HDMI Matrix Switcher supporting the newest HDMI 2.1
features, including HDCP 2.3, High Frame Rate, and 8K Video Resolutions up to 40Gbps (FRL5). Perfect
for expanding upon the amount of HDMI 2.1 Inputs for a sink device and bypassing the limited
capabilities of a legacy AVR, ensuring the highest quality experience with the latest gaming consoles,
streaming devices, and satellite receivers in conjunction with newer 4K120/8K Displays and AVRs.
AVPro Edge has been hard at work bringing integrators an updated Web User Interface allowing for
configuration, troubleshooting, and control of the 42X unit. Additionally, the 42X comes equipped
with an OLED Diagnostics Screen. Primarily used to display the incoming signal type for each output,
the Diagnostic screen may also display the enabled scaling type and device IPv4 Address.
From Built-in scaling to complex EDID management, the AC-MX-42X can work perfectly in any system.
This quick start guide will go through:
•

Installation

• Front Panel Control
• Connecting to the LAN
• Rs232 Control
• Edid Management
• Troubleshooting
Quick Installation:
1. Connect the HDMI Input Sources to the desired input of the AC-MX-42X
2. Connect the HDMI Output Devices
3. Connect the Power Supply to the AC-MX-42X
4. Turn on Input Devices
5. Turn on Output Devices
6. Control using Front Panel or using the AVPro EdgeUI Interface

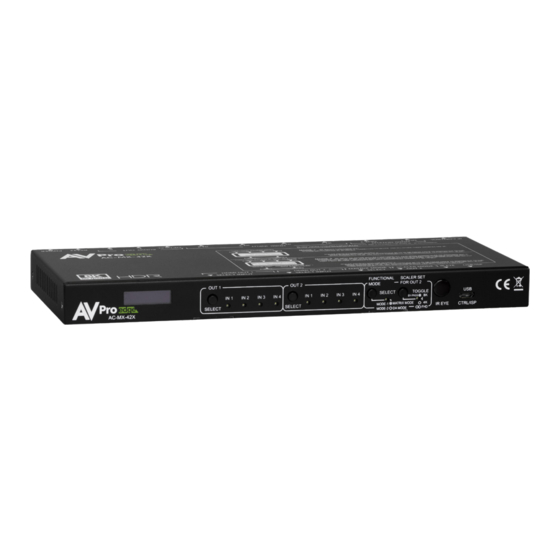

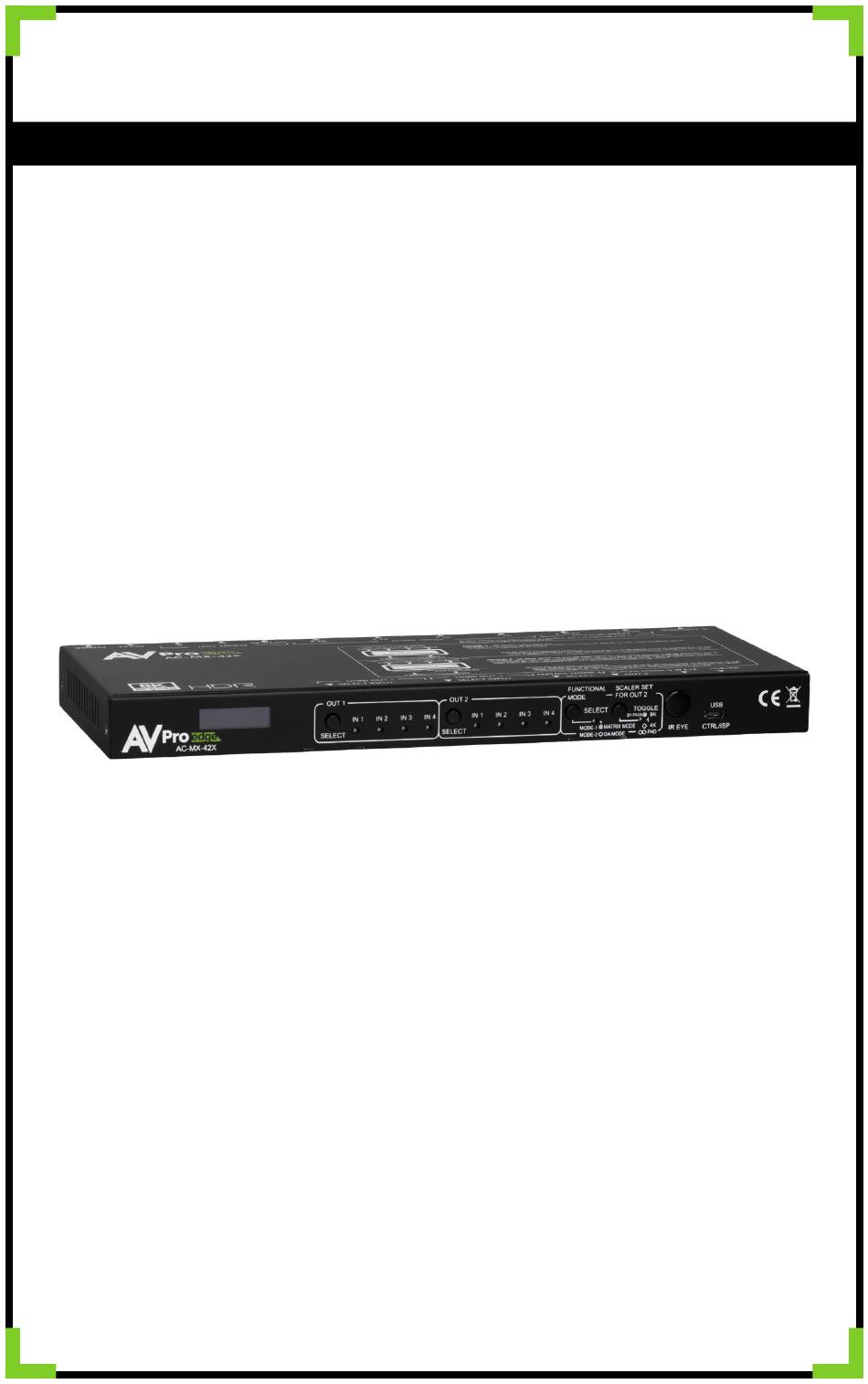

AC-MX-42X
8K60 4:2:0 4 x 2 HDMI Matrix Switcher
