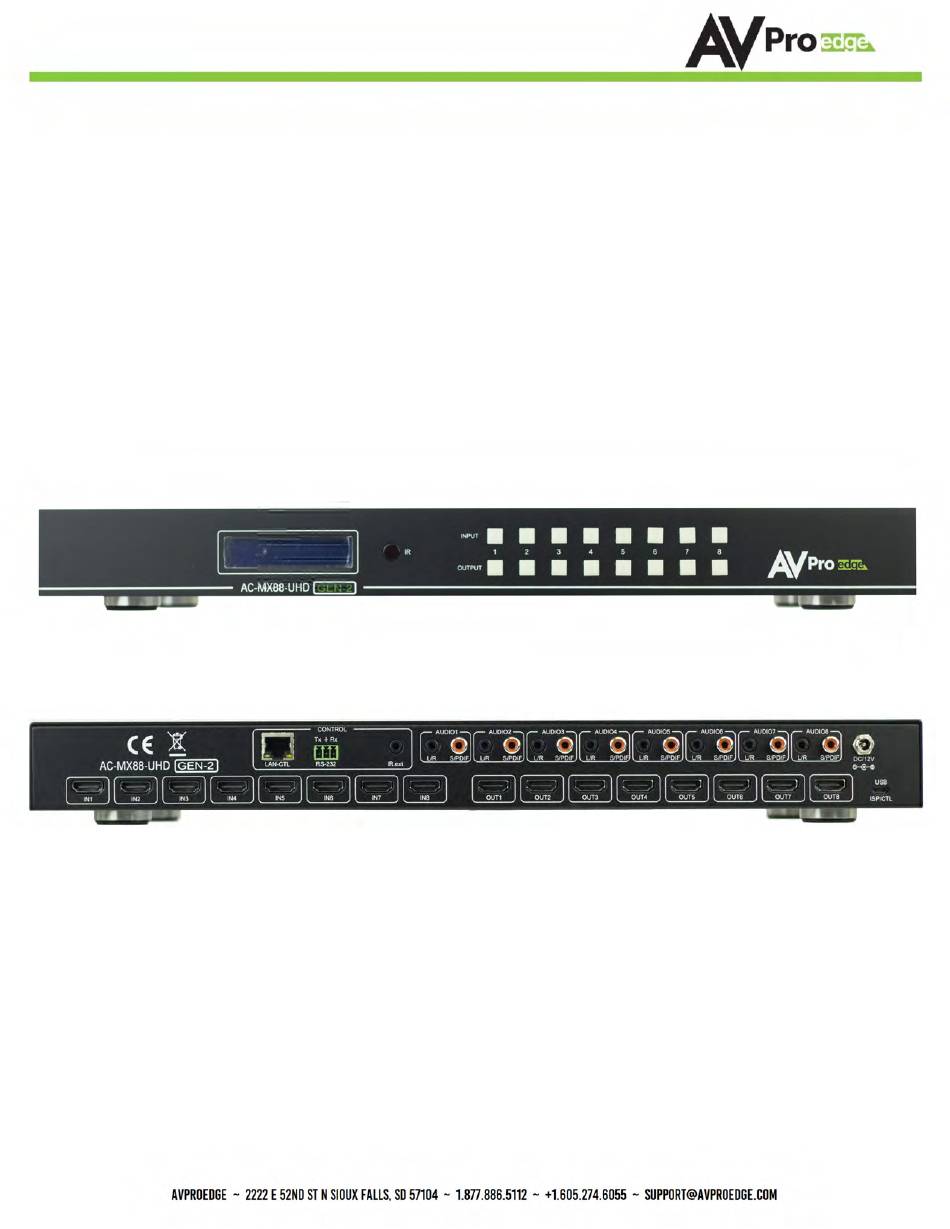

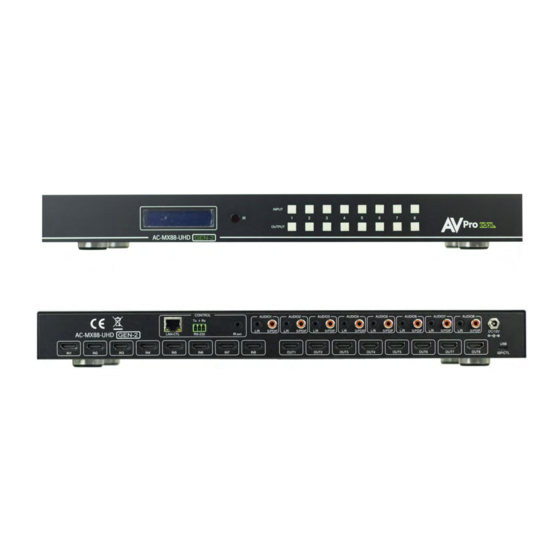

- Page 1 AC-MX88-UHD-GEN2 USER MANUAL AC-MX88-UHD-GEN2 8x8 HDMI Matrix w/ Audio De-Embedding 4K 60Hz, HDMI 2.0 and HDCP 2.2 Compatible Page 1...
-
Page 2: Easy To Use
• 12V/3A Locking Power Supply Quick Installation: 1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-UHD-GEN2 2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX88-UHD-GEN2 3. Power on the sources 4. - Page 3 AC-MX88-UHD-GEN2 Contents Page 3...
-
Page 4: Device Overview
AC-MX88-UHD-GEN2 Device Overview: Definition - Matrix switchers provide the ability to route any input to any output or to multiple outputs at any time. • Depending on the model, a matrix switcher can route HD, UHD or AUHD content in this manner. Additionally, since most venues have audio zones and video zones the requirement to breakout or strip off the audio in often necessary and has become almost a standard feature on matrix switches. - Page 5 AC-MX88-UHD-GEN2 Page 5...
-
Page 6: Front Panel Control
AC-MX88-UHD-GEN2 Full List of Quick Commands From Front Panel: Front Panel Control Switching: The AC-MX88-AUHD-GEN2/AC-MX44-AUHD can be switched from the front panel by selecting the OUTPUT button first and then selecting the INPUT button: Press the button (1 through 8) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send to a source. -
Page 7: Edid Management
AC-MX88-UHD-GEN2 EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232. - Page 8 AC-MX88-UHD-GEN2 EDID Management Cont: The first 29 EDID settings cannot be altered. The three USER EDID settings are programmed using RS-232, web interface, or the free PC Software. However, you can read an EDID from any output and it will automatically store in USER EDID 1.
- Page 9 AC-MX88-UHD-GEN2 Web Interface: Switching Use this page to switch between inputs and outputs from the web interface. Page 9...
- Page 10 AC-MX88-UHD-GEN2 Web Interface: Audio Settings Audio Status: This allows the user to turn ON and OFF the extracted audio output. When this is set to OFF the audio is muted from the extracted port. Audio Matrix: This allows the user to route the audio in a matrix fashion for the extracted audio ports.
- Page 11 AC-MX88-UHD-GEN2 Web Interface: EDID Management Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize sources or to manage infrastructure.
-
Page 12: Web Interface: System Settings
AC-MX88-UHD-GEN2 Web Interface: System Settings IP Settings: Port Alias Settings: Set network settings such Rename inputs and outputs for easy management. Each custom name is limited to eight (8) • Static IP characters. • Subnet Mask • Router IP • TCP Port •... -
Page 13: Ir Remote Control
IR remote supplied with the product. The left arrow button decrements to the Figure 2 ~ AC-MX88-UHD-GEN2 IR Remote next lower input port, and the right arrow increments to the next input port. Additionally, the supplied IR Extension Cable can provide a different receiver position. -
Page 14: Rs-232 And Tcp/Ip Commands
AC-MX88-UHD-GEN2 RS-232 and TCP/IP Commands: The AC-MX88-UHD-GEN2 can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. - Page 15 AC-MX88-UHD-GEN2 RS-232 and TCP/IP Commands: The Matrix can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine.
- Page 16 AC-MX88-UHD-GEN2 RS-232 and TCP/IP Commands: Page 16...
-
Page 17: Specifications
AC-MX88-UHD-GEN2 Specifications: NOTE: HDR (High Dynamic Range) is supported on these matrix switchers. you mus read EDID from and HDR capable display and store it to to the input where the HDR source resides. Page 17... -
Page 18: Safety Instructions
• Damage to the product due to incorrect usage or storage • Damage caused by unauthorised repairs • Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting AVProEdge Page 18... -
Page 19: Application Diagram
AC-MX88-UHD-GEN2 Application Diagram: Audio De-Embedding Diagram Page 19... - Page 20 AC-MX88-UHD-GEN2 PC Software: Switching Page 20...
- Page 21 AC-MX88-UHD-GEN2 PC Software: EDID Management Page 21...
- Page 22 AC-MX88-UHD-GEN2 PC Software: IP Settings Page 22...
-
Page 23: Troubleshooting
AC-MX88-UHD-GEN2 Troubleshooting • Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied. Check that both power supplies are connected to the matrix and powered • Verify Connections - Check that all cables are properly connected •... -
Page 24: Maintenance
AC-MX88-UHD-GEN2 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 25: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with... - Page 26 AC-MX88-UHD-GEN2 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 26...
- Page 27 AC-MX88-UHD-GEN2 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 27...
- Page 28 AC-MX88-UHD-GEN2 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 28...
