AC-MX88-UHD
AC-MX88-UHD
8x8 HDMI Matrix w/ Audio De-Embedding 4K
60Hz, HDMI 2.0 and HDCP 2.2 Compatible
A V P r o E d g e
2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4
1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5
s u p p o r t @ a v p r o e d g e . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-MX88-UHD and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge AC-MX88-UHD

Summary of Contents for AVProEdge AC-MX88-UHD

  • Page 1 AC-MX88-UHD AC-MX88-UHD 8x8 HDMI Matrix w/ Audio De-Embedding 4K 60Hz, HDMI 2.0 and HDCP 2.2 Compatible A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .

  • Page 2: Easy To Use

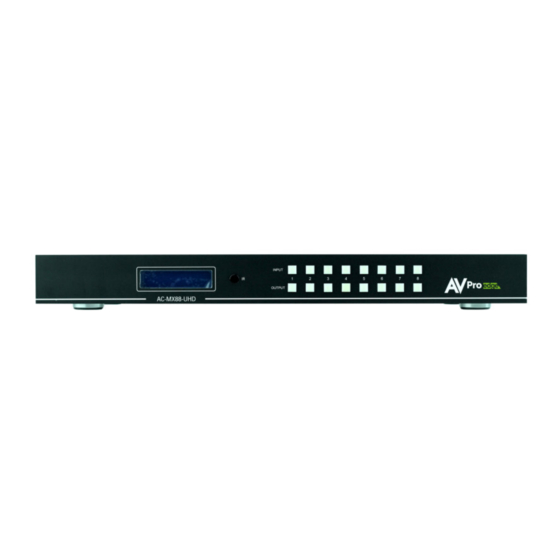

    AC-MX88-UHD The AC-MX88-UHD is a true 8x8 HDMI matrix switch. Supporting HDMI 2.0, HDCP 2.2, up to 4K video resolution, and up to 10.2 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc...) to be shown on any of the connected displays.

  • Page 3: Quick Installation

    • 12V/3A Locking Power Supply • Instruction Manual Quick Installation: 1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-UHD 2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX88-UHD 3. Power on the sources 4.

  • Page 4: Ir Remote Control

    Figure 2 ~ AC-MX88-UHD IR Remote Additionally, the supplied IR Extension Cable can provide a different receiver position. Just plug into the IR Extension Socket on the back of the matrix and place the receiver in a more convenient location.

  • Page 5: Edid Management

    AC-MX88-UHD EDID Management: This matrix has 12 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232.

  • Page 6: Cascade Mode

    AC-MX88-UHD EDID Management Cont: The first 12 EDID settings cannot be altered. The three USER EDID settings are programmed using RS-232 or the free PC Software. However, you can read an EDID from any output and it will automatically store in USER EDID 1.

  • Page 7: Switching Commands

    AC-MX88-UHD RS-232 Commands: AC-MX44-UHD and AC-MX88-UHD The same commands can be sent to the matrix using Ethernet as IP commands Switching Commands: External Audio Commands: EDID Commands: Cascade Mode Commands: NOTE: To see a connection diagram of how connect to the matrix using RS-232, see the connection...
  • Page 8 AC-MX88-UHD IP Set-Up Commands: Get Status Commands: Other Commands:...

  • Page 9: Specifications

    AC-MX88-UHD Specifications: AC-MX88-UHD SPDIF audio Outputs 5.3lbs HDCP 2.2 and earlier HDCP Versions 10.2 Gbps NOTE: HDR (High Dynamic Range) is supported on these matrix switchers. you mus read EDID from and HDR capable display and store it to to the input where the HDR source resides.

  • Page 10: Safety Instructions

    AC-MX88-UHD Safety Instructions: After Sale Service: AVProEdge.
  • Page 11 AC-MX88-UHD Application Diagram:...
  • Page 12 AC-MX88-UHD Audio De-Embedding Diagram...
  • Page 13 AC-MX88-UHD Using the Free PC Software: General Matrix Control...
  • Page 14 AC-MX88-UHD Using the Free PC Software: EDID Management...
  • Page 15 AC-MX88-UHD Using the Free PC Software: IP Settings...
  • Page 16 AC-MX88-UHD Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
