AC-MX82-AUHD/AC-MX82-AUHD-rm
18 G
Quick Start Guide

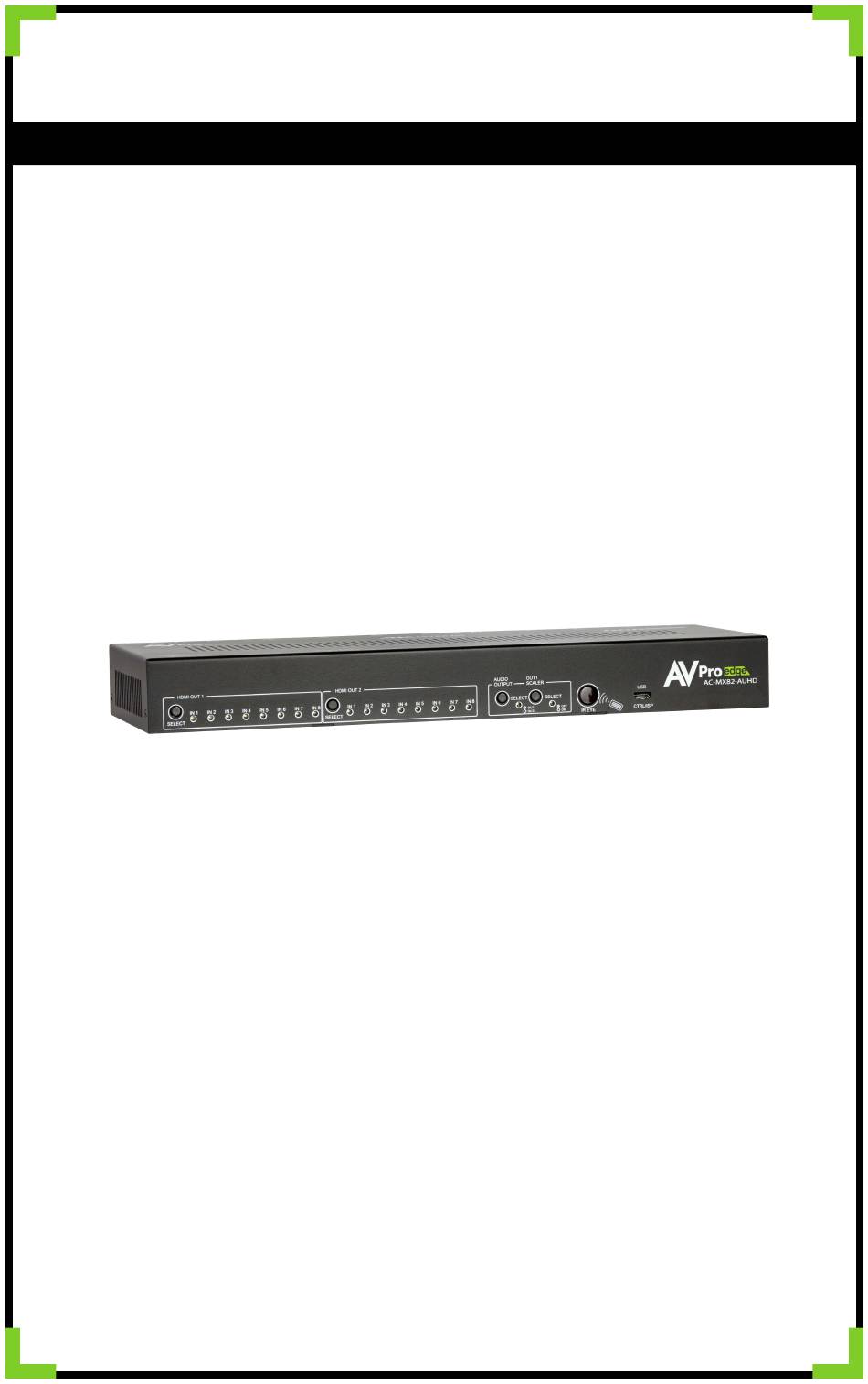

The AC-MX82-AUHD is a 8x2 HDMI matrix switcher. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K video
resolution at 18 Gbps bandwidth. This switch allows any source to be shown on any of the connected
displays. This matrix equalizes and amplifies the output to ensure the HDMI signal can be transmitted
through long HDMI cables without loss of quality. The AC-MX82-AUHD is ideal for bypassing AVR's that
do not support full 18Gbps. You can bypass uncompressed HDMI to the display while running down-
scaled video into a legacy AVR. Only video is reduced, and audio remains untouched, making it an ideal
component for systems where high bit rate audio is critical.
The auto-switching feature makes this unit an ideal, affordable, component for any conference room
system. Ideal for feeding a video signal into a video conferencing codec with very little setup. This is
an ideal solution for digital entertainment centers, HDTV retail, show sites, data centers, schools,
conference and training centers and more!
This quick start guide will be going through:
•
Installation
•
Front/rear Panel Control
•
•
IR & RS-232 Control
•
LAN Control
•
Quick Installation:
1.Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX82-AUHD.
2.Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to
the
AC-MX82-AUHD.
3.Power on the sources.
4.Connect the power supply into the AC-MX82-AUHD.
5.Turn on output devices/displays.
6.Use the front panel controls, supplied IR remote or free LAN (IP: 192.168.001.239) to
control the matrix.
True 4K60 4:4:4 8x2 HDMI Matrixng
bps
