Emerson Fisher 4320 Instruction Manual

Wireless position monitor
Hide thumbs Also See for Fisher 4320:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
D103392X012
Field Trial Release
February 2009
R
Fisher
4320 Wireless Position Monitor
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

Scope of Manual

This instruction manual includes specifications,
installation, initial setup, configuration, operation,
troubleshooting, and maintenance information for the
R
Fisher
4320 wireless position monitor.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . .
4320 Wireless Position Monitor
1
1
1
2
3
3
3
3
3
5
5
6
6
7
7
7
W9524
8

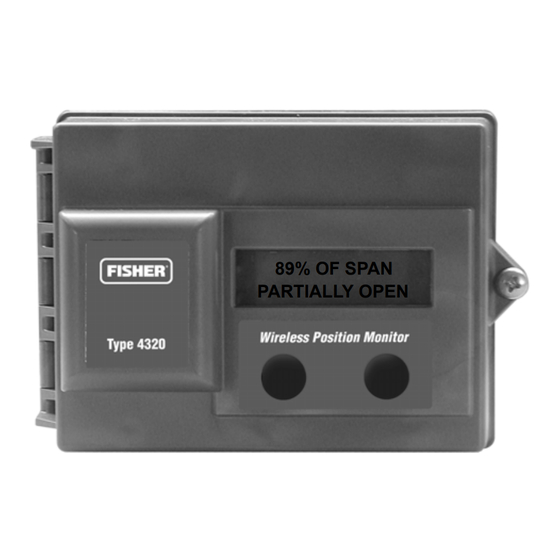

Figure 1. Fisher
8
8
This manual describes using the local interface to
9
setup and calibrate the instrument.
10
10
Do not install, operate, or maintain a 4320 wireless
11
position monitor without being fully trained and
13
qualified in valve, actuator, and accessory
14
installation, operation, and maintenance. To avoid
14
personal injury or property damage, it is important to
15
carefully read, understand, and follow all of the
15
contents of this manual, including all safety cautions
and warnings. If you have any questions regarding
15
these instructions, contact your Emerson Process
15
Management sales office before proceeding.
16
16

Description

The 4320 wireless position monitor is a true
linkage-less non-contacting wireless position
transmitter and limit switch. It is a rugged
measurement device that provides a precise
wireless feedback signal to indicate equipment
position with a percent (%) of span plus on/off
indication. The 4320 can be used to monitor
equipment such as valves, sliding-stem regulators,
89% OF SPAN
PARTIALLY OPEN
R
4320 Position Monitor

Advertisement

Table of Contents
loading

Related Manuals for Emerson Fisher 4320

Summary of Contents for Emerson Fisher 4320

  • Page 1: Table Of Contents

    Feedback Assembly ....these instructions, contact your Emerson Process Replacing the Power Module ....

  • Page 2: Terminology

    3. Due to the combustible nature of the lithium content, the power module has special installation, operation, storage, and/or shipping requirements. Observe all warnings included with the power module before installing, operating, storing, or shipping. Contact your Emerson Process Management sales office if additional information is needed.

  • Page 3: Specifications

    Valve / Actuator Mounting Emerson Process Management Educational Services, Registration If ordered as a part of a control valve assembly, the P.O. Box 190; 301 S. 1st Ave.
  • Page 4 Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 VALID TRAVEL RANGE 25 mm (1 INCH) SHOWN CURVED ARRAY 1-INCH ARRAY ROTARY NOTE: VALID TRAVEL RANGE MAGNET INDICATED BY WHITE ARROWS ASSEMBLY 2- OR 4-INCH ARRAY (ATTACHED TO VALVE STEM) Figure 3.

  • Page 5: Sliding-Stem (Linear) Actuators (E.g. Fisher 667)

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 OPTIONAL MOUNTING HOLES ROTARY MOUNTING BRACKET MOUNTING HOLES FOR ROTARY NAMUR, M10 NOTE: ANY OF THE MOUNTING HOLES MAY BE USED FOR LINEAR ACTUATORS Figure 6. For Rotary Actuators (Typical Mounting Bracket) Figure 5.

  • Page 6: Communications Connections

    LCD is in Basic Setup using the Local User the sleep state. The buttons can be pressed alone or Interface simultaneously. The Emerson logo will display when the LCD is activated from a HART “squawk” command. CAUTION...

  • Page 7: Language Selection

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 SLEEP QUICK POSITION STATUS LOGO LANGUAGE left right squawk both left right right Setup Power Network Calibrate right left right left left right left Voltage Network ID Handheld Exit 0 or 100% right right...

  • Page 8: Power

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 Power detected and the device is attempting to join the network. The power status menu is entered from the STATUS menu by pressing SELECT. Press SELECT to see CONNECTED—the device has detected the the voltage of the power module.

  • Page 9: Setup

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 Once set, use the left button to toggle the recording ERROR SPAN—indicates that a problem with the position to MARKED. MARKED indicates that the amount of travel or rotation was observed. Either the location has been recorded;...

  • Page 10: 375 Field Communicator

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 Field Communicator 1 Offline 2 Online Overview 3 Frequency Device 1 Percent of Span Device Information 4 Utility 1 Manufacturer 2 Switch Status 3 Time Since Reset 2 Model Online 4 Wireless Mode 3 HART Universal Rev.

  • Page 11: Configure

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 Device Identification 2-1-1 1 HART Tag Field Communicator 2 HART Long Tag 1 Offline Manual Setup 3 Descriptor 2 Online 1 Device Identification 4 Message Wireless 2-1-2 3 Frequency Device 2 Wireless 1 Network ID 2-1-3...
  • Page 12 Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 requirements of your application. The tag you assign Burst Command—there are six burst commands; is automatically displayed when the Field Command 1, Command 2, Command 3, Command Communicator establishes contact with the 4320 at 9, Command 48 and Command 178.

  • Page 13: Service Tools

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 Field Communicator 1 Offline 2 Online Variables 3 Frequency Device 1 Percent of Span 4 Utility 2 Switch Status 3 Electronics Temp 4 Power Module Volt... 5 Accumulated Cycles 6 Time Since Reset Online 1 Overview...

  • Page 14: Principle Of Operation

    Instruction Manual Field Trial Release 4320 Wireless Position Monitor February 2009 ELECTRICAL ACTIVE SCREWS POWER (4 TOTAL) MODULES SCREWS (NOT SHOWN) PROVIDE MECHANICAL CONNECTION TO HOUSING (4 TOTAL) Wxxxx WARNING LABEL HANDHELD CONNECTION POINTS NOTE: SEE FIGURE 14 FOR WARNING LABEL INFORMATION Figure 13.

  • Page 15: Replacing The Instrument

    Replacing the Power Modules Note Note Contact you Emerson Process The magnet assembly may remain on Management sales office if the valve stem (or shaft). replacement power modules are required.

  • Page 16: Removal

    Fisher is a mark owned by one of the companies in the Emerson Process Management business division of Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. WirelessHART and HART are marks owned by the HART Communication Foundation.
