Gesamtbedienungsanleitung
Für

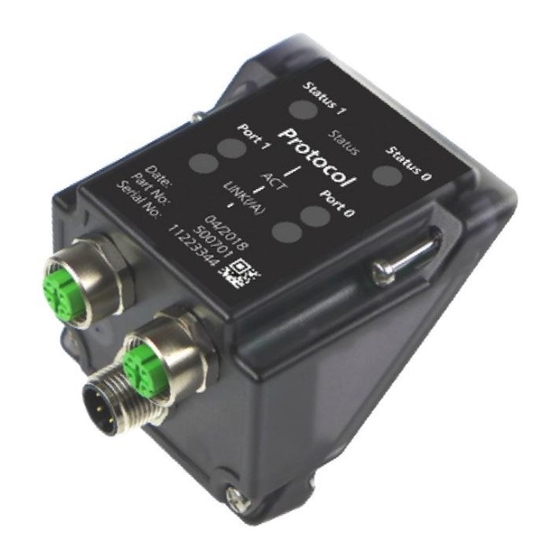

LLB 502 Bushaube EtherCAT
Material Nr.
LLB502-20900
Generiert am
12.07.2023
Enthält Originalbedienungsanleitung
Dokumentationsabschnitte
Betriebsanleitung
de/en LLB502 SSI+Analog, EIP, ETC, EPN
Technische Info
de/en Info, LLB502 - Ethernet Erweiterung
Konformitätserklärung de/en LLB502 Baureihe
Technische Daten
Seite 1/1
TR-ELE-BA-DGB-0028-03.pdf
TR-ELE-TI-DGB-0040-00.pdf
TR-ELE-KE-DGB-0011-01.pdf
Änderungen vorbehalten.
TR-Electronic GmbH
Eglishalde 6
78647 Trossingen
Tel. +49 (0) 7425 228-0
info@tr-electronic.de
www.tr-electronic.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LLB 502 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TR-Electronic LLB 502

Summary of Contents for TR-Electronic LLB 502

  • Page 1 Gesamtbedienungsanleitung Für LLB 502 Bushaube EtherCAT Material Nr. LLB502-20900 Generiert am 12.07.2023 Enthält Originalbedienungsanleitung Dokumentationsabschnitte Betriebsanleitung de/en LLB502 SSI+Analog, EIP, ETC, EPN TR-ELE-BA-DGB-0028-03.pdf Technische Info de/en Info, LLB502 - Ethernet Erweiterung TR-ELE-TI-DGB-0040-00.pdf Konformitätserklärung de/en LLB502 Baureihe TR-ELE-KE-DGB-0011-01.pdf Technische Daten Änderungen vorbehalten.
  • Page 2 RS-232, RS-422/RS-485, Analog, SSI, Optional Ethernet Interfaces Laser Measuring Device LLB-502 Devices: _LLB502-00001 _LLB502-00003 _LLB502-01111 _LLB502-01213 Exchangeable Interface Cover: _Basic safety instructions _LLB502-20700 _Introduction _LLB502-20800 _Technical data _Electrical components _LLB502-20900 _Configuration _Operation _Command set _Industrial Ethernet with exchangeable cover _Accessories User Manual...
  • Page 3  < >  indicates keys on your computer keyboard (such as <RETURN>).  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 102 TR - ELE - BA - DGB - 0028 - 03...

  • Page 4: Table Of Contents

    6.4.2 Wiring ........................28 Digital input ..........................28 Analog output .......................... 28 6.6.1 Specifications ......................29  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 05/28/2020 TR - ELE - BA - DGB - 0028 - 03...
  • Page 5 8.4.4 Inclined, round surfaces ..................53 8.4.5 Multiple reflections ....................53 8.4.6 Influence of other Iaser beams, sun light and others ..........53  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 102...
  • Page 6 9.5.3 Get device type (sNdt, dt) .................. 71 9.5.4 Get device generation and type (dg) ..............72 Error codes ..........................72  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 05/28/2020 TR - ELE - BA - DGB - 0028 - 03...
  • Page 7 10.7.4.3 Software / Tools ........................102 11 Accessories ........................... 102 11.1 Target plates ......................... 102  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 102 TR - ELE - BA - DGB - 0028 - 03...

  • Page 8: Revision Index

    - Warning signs edited 04/06/2020 - General update Chapter 11 Accessories added 05/28/2020  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany 05/28/2020 TR - ELE - BA - DGB - 0028 - 03 Page 7 of 102...

  • Page 9: General Information

     this User Manual  TR-Electronic GmbH 2018, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 102 TR - ELE - BA - DGB - 0028 - 03...
