Summary of Contents for BioLAB BCBL-204

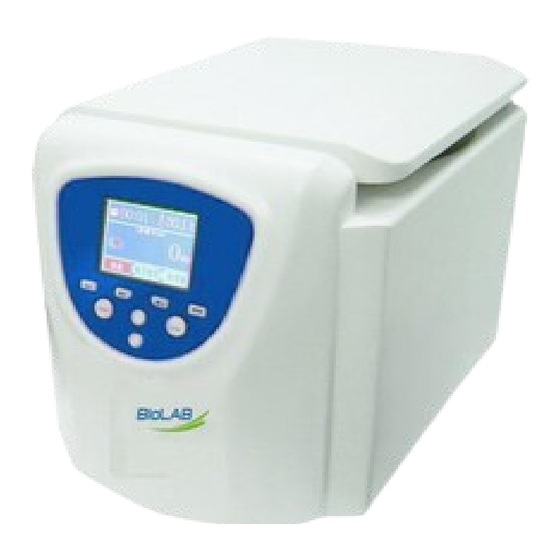

- Page 1 Operation Manual BCBL-204 Benchtop Low Speed Centrifuge www.biolabscientific.com...
-
Page 2: Table Of Contents
Benchtop Low Speed Centrifuge Index ． The name and model of the product ............3 ． Features and applications................3 ． The operation principles................4 ． Technical parameters................4 ． The rotor parameter.................5 ． The operation procedure.................5 ． Safety Notice..................11 ． Warranty Service Instruction..............11 ．... -
Page 3: The Name And Model Of The Product
BCBL-204 Table-type low speed centrifuge 02 Features and applications BCBL-204 Table-type low speed centrifuge （This machine below is short for this centrifuge machine. ） ,The series centrifuge is widely applied in biology, chemistry, medicine, agriculture and forest science, food safety, blood station and clinical test. -
Page 4: The Operation Principles
Benchtop Low Speed Centrifuge 03 The operation principles The centrifuge machine helps to separate, condense or purify the different density compon ents (or particles) of the solutions by the usage of centrifugal sedimentation principal. After placing the centrifuge tubes with equivalent test solutions in the test tubes around the rotors symmetrically and starting the machine, the RCF produced in the high-speed rotary of the rotors, which are driven by the motor, separates the different density components (or particles) in the test solutions. -
Page 5: The Rotor Parameter
Maximum Model Product capacit rotate name speed(r/min) BCBL-204 centrifuge Swing rotor 4×100 4000 06 The operation procedures Step 1: Place the centrifuge machine on the platform and ensure its balance. Shake the machine with hands to check out whether the machine has been placed stably or not. - Page 6 Benchtop Low Speed Centrifuge The diagram of the control panel. 1 ． ：The operation and time setting area. 2 ． ：The display area of the parameter numbers. 3 ． ：The operation icon. 4 ． ：The setting of rotor modes. 5 ． ：The setting of rotating speed. 6 ．...
- Page 7 Benchtop Low Speed Centrifuge 1 ） The display panel of the startup Press the “ UP” or “ DOWN” button to choose the proper parameter set. Attention: There are 20 sets of parameter set ranging from 00 to 19. As it is shown below: 2 ）...
- Page 8 Benchtop Low Speed Centrifuge ② “ Press the “ SET” button to enter the rotating speed adjustment panel. Next, press the or “ “ “ UP” or “ DOWN” button and press the SET” button again to enter the time or “...
- Page 9 Benchtop Low Speed Centrifuge As it is shown below Press the “ UP” or “ DOWN” button to choose the rotor number. Attention: Please take the real objects as the reference, and find the corresponding real rotor pictures and rotor number. ①...
- Page 10 Benchtop Low Speed Centrifuge ② Press the “ UP” button to adjust the acceleration of the rotating speed, or touch the screen and click the icon to do the same operation. There are 10 acceleration levels: 0 is the slowest while 9 is the fastest. As it is shown below: 5 ）...
-
Page 11: Safety Notice
Benchtop Low Speed Centrifuge 07 Safety Notice 1 、 This machine should not be used in the humid places with high temperature and large fugitive dust. 2 、 To ensure the safety and its centrifugal effect, this machine should be placed in the solid, quakeproof and horizontal platform, and all four undercarriages should be given the balanced load. -
Page 12: Comment Malfunctions And Obviating Methods
Benchtop Low Speed Centrifuge 09 Comment Malfunctions and Obviating Methods There is a malfunction display window. When the machine breaks down, the buzzer would make a buzzing sound and the cue words would be displayed on the window. 1. Overheat. 2. -
Page 13: Transportation And Storage Of The Machine
Benchtop Low Speed Centrifuge 10 Transportation and storage of the machine 1. The outer container has been done the rainproof, dampproof and quakeproof treatment when delivery. The centrifuge machine has been fixed in the outer container, and the outer container should not be inverted, flung or collided violently during the transportation, so as to protect the machine and the accessories. - Page 14 Benchtop Low Speed Centrifuge Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
