Patton SmartNode 4520 Series Quick Start Manual page 4

Figure 4.
3. Double-click on Local Area Connection and click on Properties to open the Inter-
net Protocol (TCP/IP) Properties window (see
4. Select Obtain an IP address automatically and Obtain DNS server address auto-
matically options.
5. Click OK to save changes and close the properties windows.
6. Using the included black Ethernet cable, connect the SmartNode RJ-45 Ethernet
LAN port labeled ETH0/1 directly to the Ethernet port on your PC (see figure 2 on
page 3).
4
Figure 3.

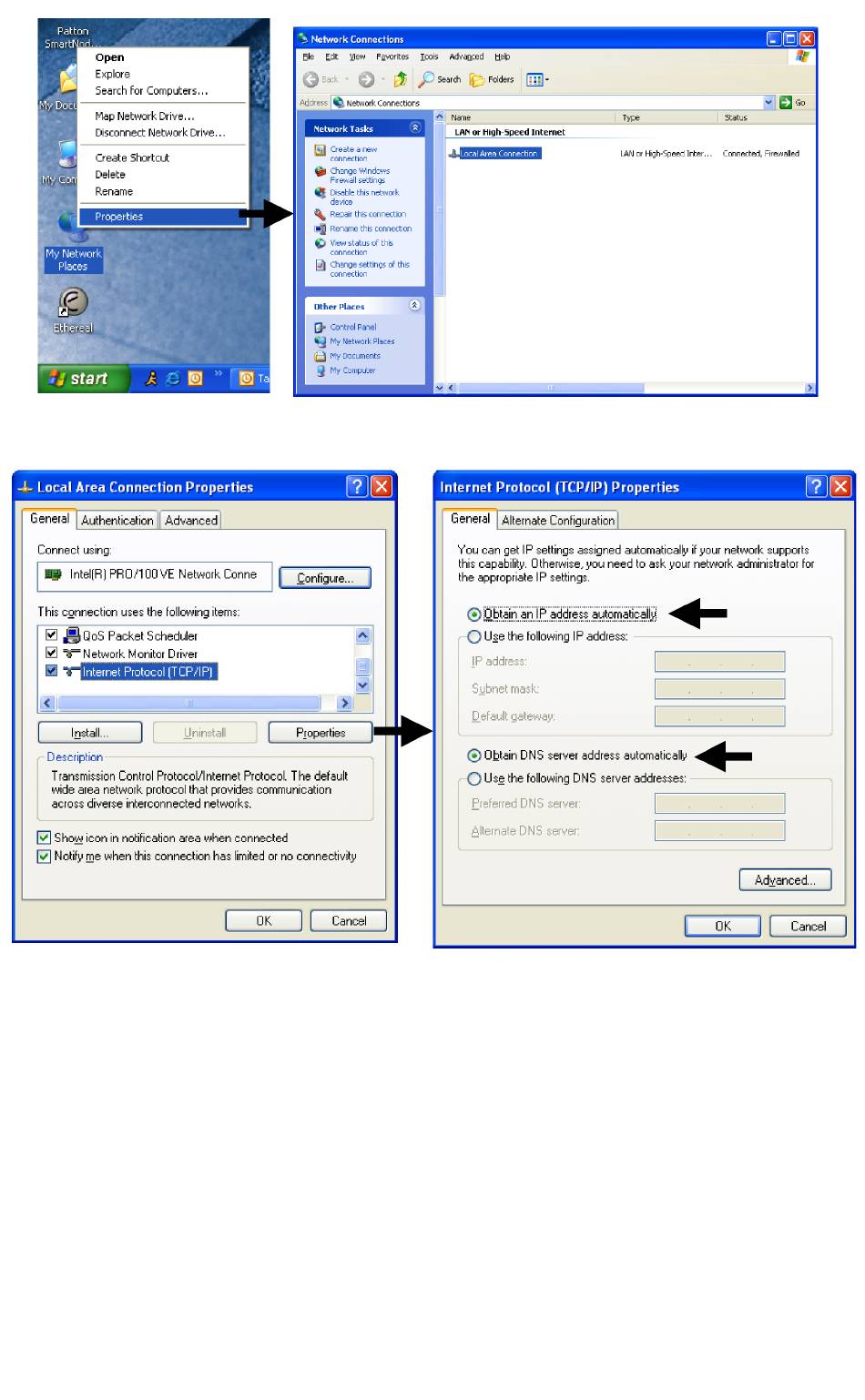

Displaying the Network Connections window
Displaying the Internet Properties (TCP/IP) Properties window
figure 4).
SmartNode 4520 & 4110 Quick Start Guide
