back brackets of the cabinet are at the right locations. If the bracket is too far forward, the front panel of the equipment
may be too close to the front door, so that the front door cannot be closed when the equipment is connected with network
cables and pigtail fibers. Maintain a minimum clearance of 10 mm between the front panel of the equipment and that of
the cabinet after installation. Before mounting into a cabinet, you need to make sure the following conditions are met:
Fasten the cabinet.
Insert various modules in the frame properly.
Remove any obstacle in the frame and the surrounding environment.
Prepare the equipment to be installed and move it to the place near the cabinet where you can handle it easily.
Installing Mounting Brackets
1.
Take out the two L-shaped brackets and eight M4*8FMO countersink screws from the plastic package.
2.
Install the brackets at the side panels of the switch, and fix the brackets with four M4*FMO countersink screws at
each side.
3.4.1 Mounting the Switch to a Rack
The RG-S6910-3C series switches are qualified for EIA standard and can be installed in a 19-inch wiring cabinet. During
the process of installation, keep the front panel of the switch forward. It is recommended use tray to install the RG-
S6910-3C series switches and fix the tray on the bracket, or use the rear bracket pro vided with the switches.
1.
Install the grounding cable.
The grounding cable and the grounding connector are in one piece on the lower left corner of the rear panel. Use a
Phillips screwdriver to tighten the grounding screws to the grounding connectors.

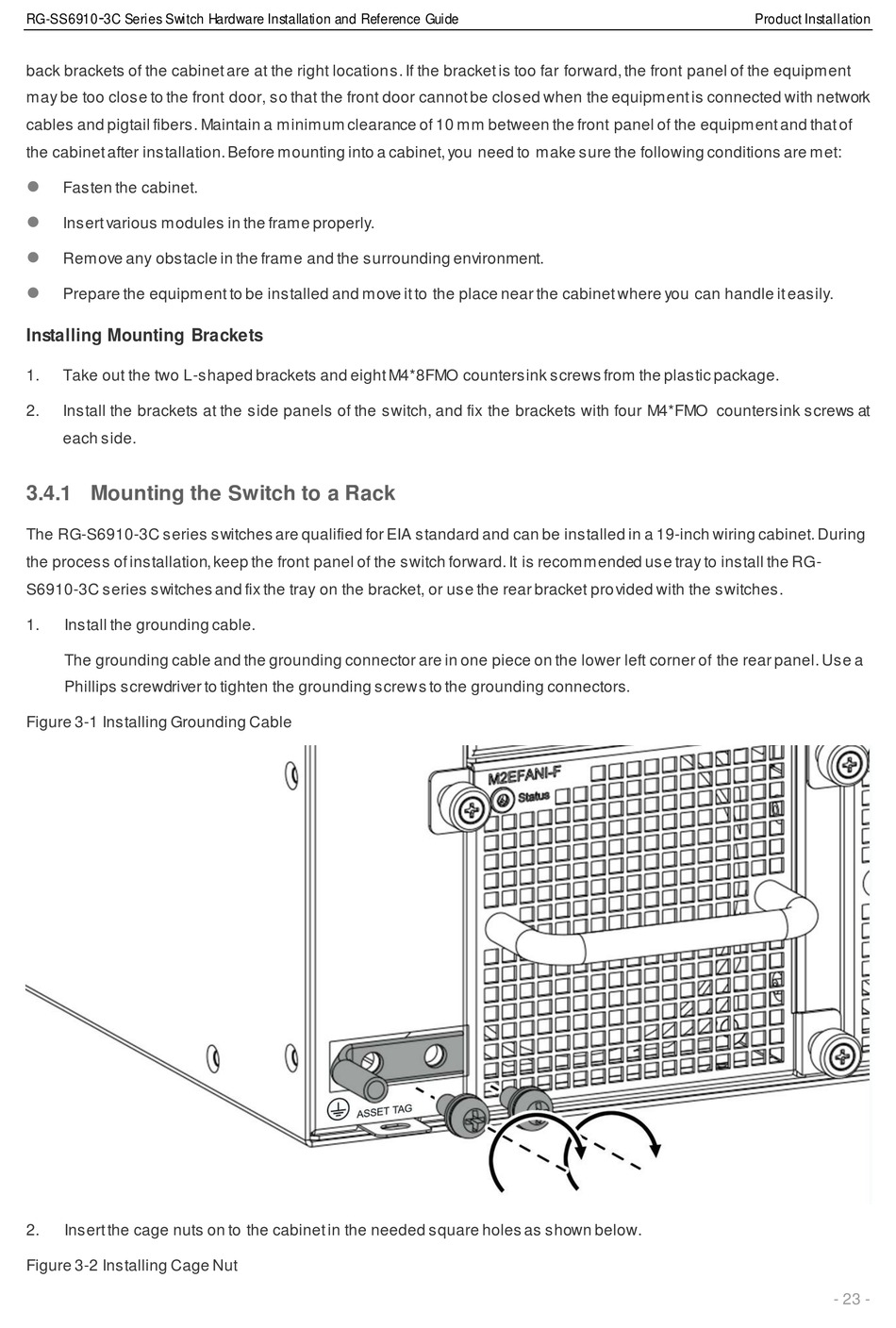

Figure 3-1 Installing Grounding Cable
2.
Insert the cage nuts on to the cabinet in the needed square holes as shown below.
Figure 3-2 Installing Cage Nut
Product Installation
- 23 -
