- Page 1 Wireless outdoor siren ASP-200 Firmware version 1.00 asp-200_en 07/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS Features ........................... 2 Specifications ........................2 Description ........................3 Radio communication ....................... 3 Triggering the signaling ....................4 Energy saving mode (ECO) ....................4 Power supply ........................5 Enclosure base ......................... 5 Installation and start-up ....................5 Battery replacement ......................6... -
Page 4: Features

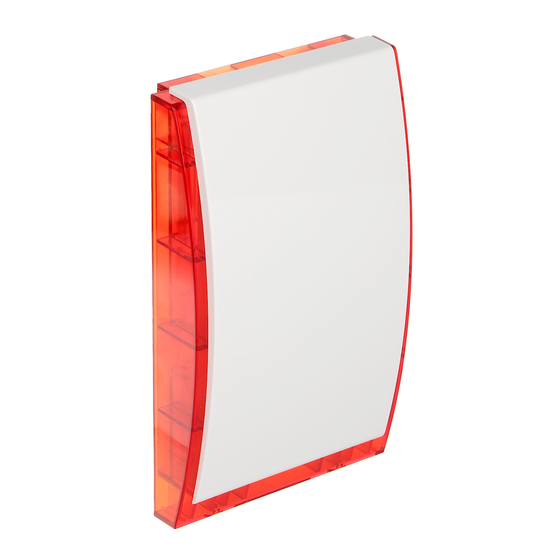

ASP-200 SATEL The ASP-200 siren provides information about alarm situations by means of optical and acoustic signaling. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the siren with firmware version 1.00 (or newer), which is supported by: •... -
Page 5: Description
SATEL ASP-200 Environmental class according to EN50130-5 ..............IIIA Operating temperature range ................-40C …+55C Maximum humidity ......................93±3% Dimensions ....................148 x 254 x 64 mm Weight ..........................762 g 3 Description enclosure cover. enclosure base. battery holder. sounder. -
Page 6: Triggering The Signaling
ASP-200 SATEL • the controller sends a command to the siren (starting / stopping the signaling; blocking / unblocking the tamper signaling). ABAX 2 The siren connects to the controller at intervals defined by the “Communication period” parameter or by using the “ECO” option. -
Page 7: Power Supply
Power supply The siren is powered from a 3.6 V lithium thionyl chloride battery. It is a high-current battery, characterized by high capacity. The battery is offered by SATEL. The siren provides information about battery condition during each transmission. If you want to replace the low battery with a fresh one, follow the procedure described in the “Battery replacement”... -
Page 8: Battery Replacement
ASP-200 SATEL The siren must be installed on the wall, high above the floor, at a hard to access location, so as to minimize the risk of tampering. Make sure that some free space is left above the siren (at least 2.5 cm). Otherwise, it will be impossible to replace the cover. - Page 9 1. Start the service mode in the control panel (if the ABAX 2 / ABAX controller is connected to a SATEL alarm control panel) or the test mode in the ABAX 2 / ABAX system. 2. After the leftmost LED on the siren starts flashing every 3 seconds, you can open the siren enclosure.
