Irideon WLZ
User Manual
Version 1.0.1
Part Number: 7192M1200-1.0.1 Rev I
Released: 2023-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Irideon WLZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETC Irideon WLZ

  • Page 1 Irideon WLZ User Manual Version 1.0.1 Part Number: 7192M1200-1.0.1 Rev I Released: 2023-07...
  • Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. For a complete list of all third-party licenses that are fully incorporated herein to the extent required by each third-party license terms and conditions, please visit etcconnect.com/licenses.
  • Page 3: Table Of Contents

    Install Canopy Luminaire (0–10 V and DALI Variants) Install Portable Luminaire with C-clamp Install Portable Luminaire on Unistrut Track Connect Cables to Portable Luminaire Configuration Set the DMX Address at the Luminaire Adjust the Local Intensity Initial Power Up Status LED Irideon WLZ User Manual...
  • Page 4 RDM Values Focus and Setup Adjust the Tilt Adjust the Field Use the Barn Door Accessory Use the Integrated Media Holder Cleaning Specifications and Reference FCC Compliance Irideon WLZ User Manual...
  • Page 5: Introduction

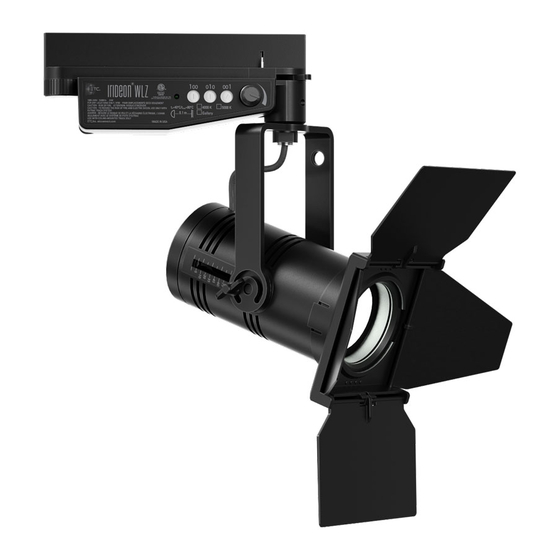

    Introduction The Irideon WLZ is a compact but powerful LED wash light. It incorporates many of the great features of its companion luminaire, the Irideon FPZ, including local and DMX control, adjustable zoom, and sleek design. The Irideon WLZ has three available mounting options: •...
  • Page 6: Safety

    • Ne pas installer le projecteur sur ou à côté d’une surface inflammable. • Vérifiez que le porte-accessoires est verrouillé avant de monter le projecteur. • N’utilisez pas le projecteur sans que la lentille soit installée. Irideon WLZ User Manual...
  • Page 7 Pour éviter le risque d'incendie ou de choc électrique, utiliser le luminaire à adaptateur pour rail uniquement avec son système de rail désigné (OneTrack ou DataTrack par exemple). WARNING: Use the DataTrack track-mount luminaire with ceiling-mounted track only. Irideon WLZ User Manual...
  • Page 8: Installation

    Selecting a dimmable circuit may Align tabs cause luminaire damage to groove Tab locks that will void the ETC into track warranty. 3. Flip the locking tab to the Flip to lock opposite side to lock the adapter, and then rotate the circuit selection knob to select the correct circuit.
  • Page 9: Install Track-Mounted Luminaire (Datatrack)

    Selecting a dimmable circuit may cause luminaire damage that will void the ETC warranty. 3. Use the circuit selection lock to select the circuit. The desired circuit number should point toward the center of the adapter.
  • Page 10 Mounting plate before wiring the luminaire. The cover plate is required when the interior of the canopy enclosure could be exposed after installation with only the mounting plate (the mounting surface is smaller than the canopy enclosure). Irideon WLZ User Manual...
  • Page 11 4. Optionally, terminate DMX/RDM thru to the next device in the DMX data run. Up to 32 DMX/RDM devices can be daisy-chained together per data run. a. Order additional termination kits separately (request ETC part number 4100A1022). Follow the DMX termination kit instructions to terminate the control wiring.    ...
  • Page 12 Hook wiring. 3. If desired, manually set the DMX address on the luminaire using the three addressing Set the DMX dials in the canopy. See Address at the Luminaire on page 15 Irideon WLZ User Manual...
  • Page 13 Canopy before you secure the bolts luminaire. Insert the oval-shaped covers into the canopy enclosure to cover the canopy bolt openings. 9. Restore power at the disconnect device. Oval-shaped covers Irideon WLZ User Manual...
  • Page 14: Install Canopy Luminaire (0-10 V And Dali Variants)

    Cover plate Remove the adhesive tape or (if needed fasteners securing the for surface- mounting plate to the mounting) luminaire to free the mounting Mounting plate from the canopy plate enclosure. Mounting plate bolts Canopy bolts Irideon WLZ User Manual...
  • Page 15 WAGO connectors. • For 120 V luminaires: Connect the black wire to line and the white wire to neutral. • For 230 V luminaires: Connect the brown wire to line and the blue wire to neutral. Irideon WLZ User Manual...
  • Page 16: Install Portable Luminaire With C-Clamp

    Note: The miniature C-clamp for the portable luminaire is available only in North America. In the EU and UK, use an M12 bolt to secure a clamp (provided separately) to the luminaire. Irideon WLZ User Manual...
  • Page 17 4. Loosen the yoke bolt and rotate the yoke as needed. CAUTION: Tighten the C-clamp pipe bolt to about 2 Nm (1.5 ft-lb), which is approximately finger-tight plus up to one-quarter turn. Do not use excessive force. 5. Tighten the bolt to lock the luminaire position. Irideon WLZ User Manual...
  • Page 18: Install Portable Luminaire On Unistrut Track

    • To order RJ45-to-plug XLR adapter, use part number W6539. 2. Connect the luminaire to the power source. Note: • The Irideon WLZ is not self-terminating. You must terminate the last luminaire in line with a 120 Ohm resistor. Please contact your ETC customer service representative to purchase part number N4086.
  • Page 19: Configuration

    DMX addresses must be set between 1 and 512. Each luminaire must be considered a separate DMX device for the purpose of DMX line-loading calculations. The Irideon WLZ only has an intensity channel. Note: When using RDM with track-mounted luminaires, ETC recommends connecting no more than 20 luminaires on a single run.
  • Page 20 Track-mount (OneTrack) Status LED, DMX addressing dials, Track-mount Portable and local intensity (DataTrack) control knob In these addressing examples, the luminaire is addressed to 503. 10'S 100'S 10'S 100'S Canopy (mounting plate removed) Irideon WLZ User Manual...
  • Page 21: Adjust The Local Intensity

    Control and configure the luminaire over a DMX/RDM control network or directly from a connected computer running appropriate software. When controlling the luminaire directly from a PC, a Gadget II interface or DMX/RDM gateway is required. Irideon WLZ User Manual...
  • Page 22: Status Led

    Value Manufacturer ID 0x6574 Electronic Theatre Controls Model ID 0x901 Irideon WLZ DMX Start Address 0x00F0 Range = 1–512 1=DMX Personality ID 0x00E0 2=Local 0 = Standard (1.2 kHz) Output Frequency 0x8123 1 = High (25 kHz) Irideon WLZ User Manual...
  • Page 23: Focus And Setup

    (see image at left). The field angle markers on the side of the luminaire indicate the field angle as you adjust within the range of 16–91 degrees. Field angle markers Irideon WLZ User Manual...
  • Page 24: Use The Barn Door Accessory

    DataTrack adaptor, C-clamp, or canopy. Use the Integrated Media Holder The Irideon WLZ comes equipped with an integrated media holder, which is a metal frame used to hold color media (often referred to as gel) or diffusion in front of the lens. The media holder is equipped with a magnetic retaining clip that prevents the media from falling out.
  • Page 25 2. Place the dichroic glass into the Magnets groove. 3. Replace the media holder by aligning the tab at the top of the media holder with the inset on the front casting. Irideon WLZ User Manual...
  • Page 26: Cleaning

    6. Replace the lens, rubber ring, and glass lens (CE version only). Ensure that the ridged side of the lens is facing out. 7. Replace the front casting and secure it with the bolts. 8. Replace the integrated media holder. Irideon WLZ User Manual...
  • Page 27: Specifications And Reference

    Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. Irideon WLZ User Manual...
  • Page 28 Global Offices n London | Rome | Holzkirchen | Paris | Hong Kong | Dubai | Singapore New York | Orlando | Los Angeles | Austin | © 2023 Electronic Theatre Controls, Inc. etcconnect.com | Support support.etcconnect.com Contact etcconnect.com/contactETC | Trademark and patent info: etcconnect.com/ip Third-party license agreement info: etcconnect.com/licenses | Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7192M1200-1.0.1 Rev I Released 2023-07...
