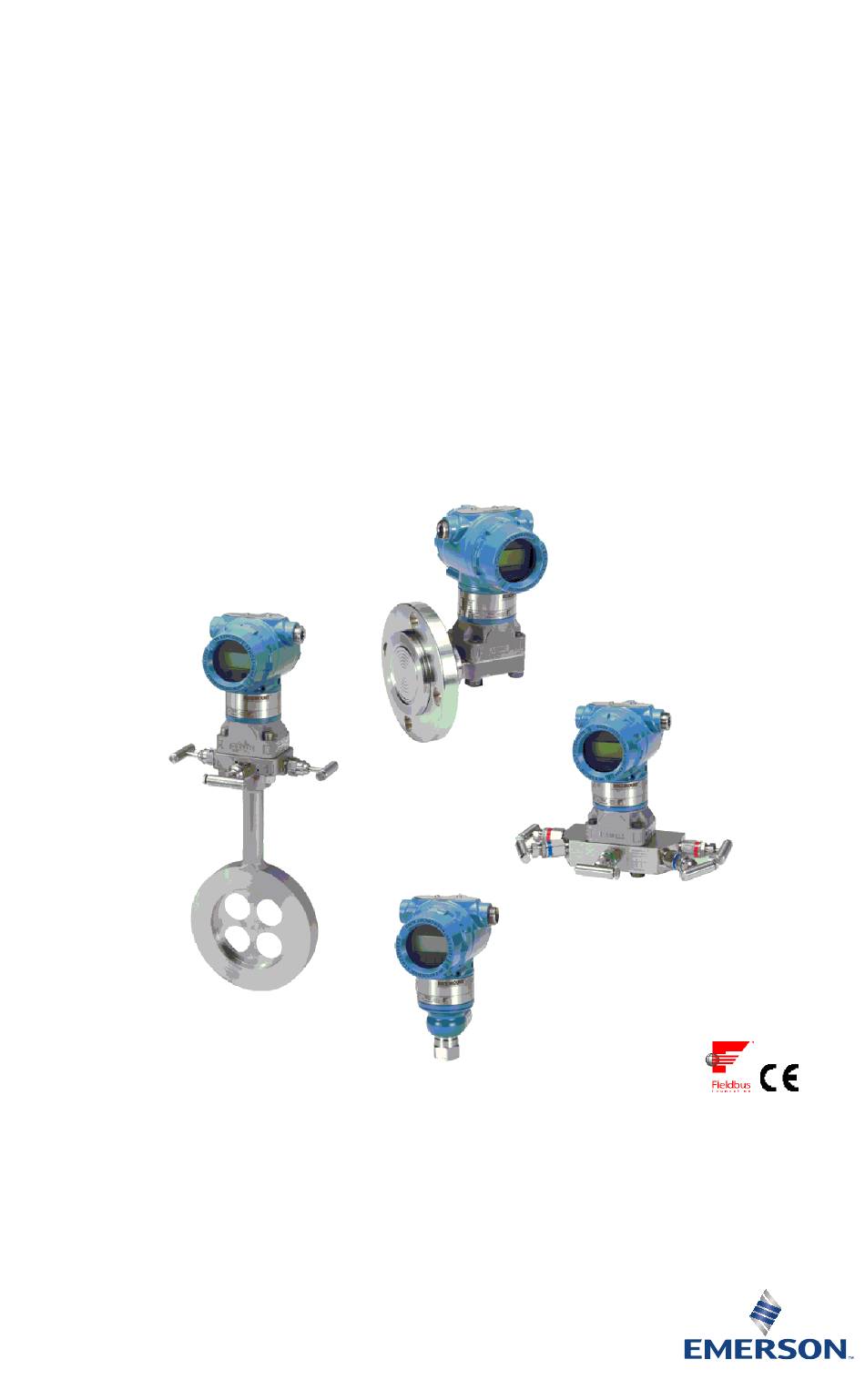

Quick Start Guide
00825-0200-4774, Rev CA
February 2019
™
Rosemount
3051 Pressure Transmitter
and Rosemount 3051CF Series
Flowmeters
™
with F
Fieldbus Protocol
OUNDATION

Advertisement

Table of Contents
loading

Related Manuals for Emerson 3051CF Series

Summary of Contents for Emerson 3051CF Series

  • Page 1 Quick Start Guide 00825-0200-4774, Rev CA February 2019 ™ Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flowmeters ™ with F Fieldbus Protocol OUNDATION...
  • Page 2 (I.S.) installations. Refer to the Rosemount 3051 FOUNDATION Fieldbus Reference Manual for more instruction. This manual is also available electronically on Emerson.com/Rosemount. WARNING Explosions could result in death or serious injury. Installation of the transmitters in a hazardous environment must be in accordance with the appropriate local, national, and international standards, codes, and practices.

  • Page 3: System Readiness

    ) is loaded on your systems to ensure proper communications. • Download the correct device driver at your host vendor download site, Emerson.com/Rosemount or Fieldbus.org. 1.1.1 Rosemount 3051 device revisions and drivers Table 1-1 provides the information necessary to ensure you have the correct device driver and documentation for your device.
  • Page 4 4. Set switches 6. Configuration and software (Section 2.7.1, 2.8) write lock 2. Commissioning (Section 4.4) (Section 3.4) 7. Zero trim the transmitter 5. Grounding, (Section 5.4) wiring and 3. Housing power up rotation (Section 4.6) (Section 3.5.1) Done Emerson.com/Rosemount...

  • Page 5: Transmitter Installation

    February 2019 Quick Start Guide Transmitter installation Mount the transmitter For dimensional drawing information refer to the Dimensional Drawings ™ section of the Rosemount 3051 Product Data Sheet. Figure 2-1: Panel Mount Coplanar Flange 5/16 x 1½ panel bolts are customer supplied. Quick Start Guide...
  • Page 6 Quick Start Guide February 2019 Figure 2-2: Pipe Mount Coplanar Flange Figure 2-3: Panel Mount Traditional Flange Figure 2-4: Pipe Mount Traditional Flange Emerson.com/Rosemount...
  • Page 7 February 2019 Quick Start Guide ™ Figure 2-5: Panel Mount Rosemount 3051T Figure 2-6: Pipe Mount Rosemount 3051T 2.1.1 Mount the transmitter in liquid applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3.
  • Page 8 Figure 2-8: Mounting the Transmitter in Gas Applications Coplanar Inline Flow 2.1.3 Mount the transmitter in steam applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. Emerson.com/Rosemount...

  • Page 9: Bolting Considerations

    Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-10 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 10 February 2019 Table 2-1. If bolt material is not shown in Table 2-1, contact a local Emerson representative for more information. Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation. However, no additional lubricant should be applied when installing either type of bolt.
  • Page 11 February 2019 Quick Start Guide 2.1.5 O-rings with flange adapters WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown below.
  • Page 12 4. Tighten the gland nut to a torque of 25 ft-lb. Note A weep hole has been designed into the transmitter for safety and leak detection. If fluid begins to leak from the weep hole, isolate the process pressure, disconnect the transmitter, and reseal until the leak is resolved. Emerson.com/Rosemount...

  • Page 13: Consider Housing Rotation

    The device description loaded in the host system must be at the same revision as this device. You can download the device description from the host system website or Emerson.com/Rosemount by selecting Device Drivers under Resources. You can also visit Fieldbus.org...

  • Page 14: Set The Switches

    2. Remove the housing cover opposite the field terminal side. Do not remove the instrument cover in explosive atmospheres when the circuit is live. 3. Slide the security and simulate switches into the preferred position. 4. Replace the housing cover. Emerson.com/Rosemount...

  • Page 15: Wire, Ground, And Power Up

    9 Vdc. Power supply voltage can be variable, especially under abnormal conditions, such as when ™ operating on battery backup. Emerson recommends a minimum of 12 Vdc under normal operating conditions and shielded twisted pair Type A cable.
  • Page 16 Note Emerson does not recommend using a pin or ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration.

  • Page 17: Power Supply

    February 2019 Quick Start Guide 2.5.1 Signal wiring grounding Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment. Grounding terminations are provided on the outside of the electronics housing and inside the terminal compartment. These grounds are used when transient protect terminal blocks are installed or to fulfill local regulations.

  • Page 18: Signal Termination

    DeltaV Explorer for the resource and transducer blocks and control studio for the function blocks. 2.6.1 Configure the AI block Navigation instructions for each step are provided below. In addition, the screens used for each step are shown in Figure 2-18. Emerson.com/Rosemount...
  • Page 19 February 2019 Quick Start Guide Figure 2-17: Configuration Flowchart Start 6. Set low cutoff: 1. Verify device tag: Device Configuration LOW_CUT PD_TAG here 7. Set damping: 2. Check switches and PRIMARY_VALUE_ software write lock DAMPING 8. Set up LCD display 3.
  • Page 20 Before beginning configuration, you may need to verify the device tag or deactivate hardware and software write protection on the transmitter. To do this follow Step 1 Step 2 below. Otherwise continue at “AI block configuration”. Procedure 1. To verify the device tag: Emerson.com/Rosemount...

  • Page 21: Ai Block Configuration

    February 2019 Quick Start Guide a) Navigation: from the Overview screen, select Device Information to verify the device tag. 2. To check the switches (see Figure 2-15): a) The write lock switch must be in the unlocked position if the switch has been enabled in software.
  • Page 22 If L_TYPE is “Indirect”, the AI Block may be placed in AUTO mode to return the device to service. Guided setup does this automatically. 4. If L_TYPE is “Indirect Square Root”, a LOW FLOW CUTOFF function is available. a) Enable LOW FLOW CUTOFF. Emerson.com/Rosemount...
  • Page 23 February 2019 Quick Start Guide b) Set the LOW_CUT VALUE in XD_SCALE UNITS. c) The AI block may be placed in AUTO mode to return the device to service. Guided setup does this automatically. 5. Change damping. a) To use guided setup: Navigate to Configure >...
  • Page 24 Use the pressure, DP flow, and DP level examples for guides. Parameters Enter data Channel 1 = Pressure, 2 = Sensor temp, 12 = SPM mean, 13 = SPM standard deviation L-Type Direct, indirect, or square root XD_Scale Scale and engineering units Emerson.com/Rosemount...
  • Page 25 February 2019 Quick Start Guide Parameters Enter data torr at 0 °C ft H O at 4°C O at 4 °C Note Select only the units mbar kg/cm ft H O at 60 mm Hg at 0 that are supported by °F °C the device.

  • Page 26: Zero Trim The Transmitter

    Navigate to Configure > Guided Setup. b) Select Zero Trim. c) The method will execute the zero trim. 2. To use manual setup: a) Navigate to Overview > Calibration > Sensor Trim. b) Select Zero Trim. c) The method will execute the zero trim. Emerson.com/Rosemount...

  • Page 27: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that...
  • Page 28 03031-1019 (–50 °C ≤ T ≤ +60 °C); Type 4x Special Conditions for Safe Use (X): 1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must Emerson.com/Rosemount...
  • Page 29 February 2019 Quick Start Guide be taken into account during installation and use to prevent impact and friction. 2. The Rosemount 3051 Transmitter with the transient terminal block (option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.
  • Page 30 If paint is ordered through a special option code, contact the manufacturer for more information. 4. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking. I1 ATEX Intrinsic Safety and Dust Certificate: BAS97ATEX1089X; Baseefa11ATEX0275X Emerson.com/Rosemount...
  • Page 31 February 2019 Quick Start Guide Standards: EN60079-0:2012 + A11:2013, EN60079-11:2012, EN60079-31:2014 Markings: HART: Ex II 1 G Ex ia IIC T5/T4 Ga, T5(–60 °C ≤ T ≤ +40 °C), T4(– 60 °C ≤ T ≤ +70 °C) Fieldbus/PROFIBUS: Ex II 1 G Ex ia IIC Ga T4(–60 °C ≤...
  • Page 32 ≤ +80 °C); Ex ta IIIC T95 °C T 105 °C Da (–20 °C ≤ T ≤ +85 °C) Table 3-4: Process Temperature Temperature class Process temperature –60 °C to +70 °C –60 °C to +80 °C –60 °C to +80 °C Emerson.com/Rosemount...
  • Page 33 February 2019 Quick Start Guide Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.
  • Page 34 IECEx BAS 09.0076X Standards: IEC60079-0:2011, IEC60079-11:2011 Special Conditions for Safe Use (X): Table 3-7: Input Parameter Parameter Fieldbus/PROFIBUS Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C ≤ 5 nF Inductance L ≤ 10 μH Emerson.com/Rosemount...
  • Page 35 February 2019 Quick Start Guide Special Conditions for Safe Use (X): 1. If the apparatus is fitted with an optional 90V transient suppressor, it is not capable of withstanding the 500V insulation test required by clause 6.3.12 of IEC 60079-11. This must be taken into account when installing the apparatus.
  • Page 36 IB INMETRO FISCO Certificate: UL-BR 13.0584X Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011, ABNT NBR IEC60079-11:2009 Markings: Ex ia IIC T4 Ga (–60 °C ≤ T ≤ +60 °C) Table 3-9: Input Parameter Parameter FISCO Voltage U 17.5 V Emerson.com/Rosemount...
  • Page 37 February 2019 Quick Start Guide Table 3-9: Input Parameter (continued) Parameter FISCO Current I 380 mA Power P 5.32 W Capacitance C ≤ 5 nF Inductance L ≤ 10 μH Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IEC 60079-11.
  • Page 38 30 V 30 V 17.5 V Current I 200 mA 300 mA 380 mA Power P 0.9 W 1.3 W 5.32 W Capacitance C 0.012 μF 0 μF < 5 nF Inductance L 0 mH 0 mH < 10 μH Emerson.com/Rosemount...
  • Page 39 February 2019 Quick Start Guide Note FISCO parameters apply to both Group IIC and IIB. [For Flowmeters] When Rosemount 644 Temperature Transmitter is used, the transmitter should be used with Ex-certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres.

  • Page 40: Republic Of Korea

    Markings: HART: 0Ex ia IIC T4/T5 Ga X, T4(–60 °C ≤ T ≤ +70 °C), T5(–60 °C ≤ T ≤ +40 °C) Fieldbus/PROFIBUS: 0Ex ia IIC T4 Ga X (–60 °C ≤ T ≤ +60 °C) Special Conditions for Safe Use (X): 1. See certificate for special conditions. Emerson.com/Rosemount...

  • Page 41: Conduit Plugs And Adapters

    February 2019 Quick Start Guide 3.11 Combinations K2 Combination of E2 and I2 K5 Combination of E5 and I5 K6 Combination of C6, E8, and I1 K7 Combination of E7, I7, and N7 K8 Combination of E8, I1, and N1 KB Combination of E5, I5, and C6 KD Combination of E8, I1, E5, I5, and C6 KM Combination of EM and IM...

  • Page 42: Additional Certifications

    Class notations: AUT-UMS, AUT-CCS, AUT-PORT and AUT- Application: IMS; Pressure transmitter type 3051 cannot be installed on diesel engines SDN Det Norske Veritas (DNV) Type Approval Certificate: TAA000004F Intended Use: DNV GL Rules for Classification — Ships and offshore units Application: Location classes Temperature Emerson.com/Rosemount...
  • Page 43 February 2019 Quick Start Guide Location classes Humidity Vibration Enclosure SLL Lloyds Register (LR) Type Approval Certificate: 11/60002 Application: Environmental categories ENV1, ENV2, ENV3, and ENV5 C5 Custody Transfer - Measurement Canada Accuracy Approval Certificate: AG-0226; AG-0454; AG-0477 Quick Start Guide...

  • Page 44: Eu Declaration Of Conformity

    Assumption of conformity is based on the application of the harmonized standards and, when applicable or required, a European Union notified body certification, as shown in the attached schedule. Vice President of Global Quality (signature) (function) 1-Feb-19; Shakopee, MN USA Chris LaPoint (name) (date of issue & place) Page 1 of 4 Emerson.com/Rosemount...
  • Page 45 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1017 Rev. AC EMC Directive (2014/30/EU) Harmonized Standards: EN 61326-1:2013, EN 61326-2-3:2013 PED Directive (2014/68/EU) Rosemount 3051CA4; 3051CD2, 3, 4, 5; 3051HD2, 3, 4, 5; (also with P9 option) QS Certificate of Assessment - Certificate No.
  • Page 46 Ex ta IIIC T95°C T 105°C Da Harmonized Standards Used: EN60079-0:2012 + A11:2013, EN60079-31:2014 KEMA00ATEX2013X - Flameproof Equipment Group II Category 1/2 G Ex db IIC T6…T4 Ga/Gb Harmonized Standards Used: EN60079-0:2012 + A11:2013, EN60079-1:2014, EN60079-26:2015 Page 3 of 4 Emerson.com/Rosemount...
  • Page 47 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1017 Rev. AC PED Notified Body DNV GL Business Assurance Italia S.r.l. [Notified Body Number: 0496] Via Energy Park, 14, N-20871 Vimercate (MB), Italy Note – equipment manufactured prior to 20 October 2018 may be marked with the previous PED Notified Body number;...
  • Page 48 Quick Start Guide February 2019 Emerson.com/Rosemount...
  • Page 49 February 2019 Quick Start Guide Quick Start Guide...
  • Page 50 Quick Start Guide February 2019 Emerson.com/Rosemount...
  • Page 51 February 2019 Quick Start Guide Quick Start Guide...
  • Page 52 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
