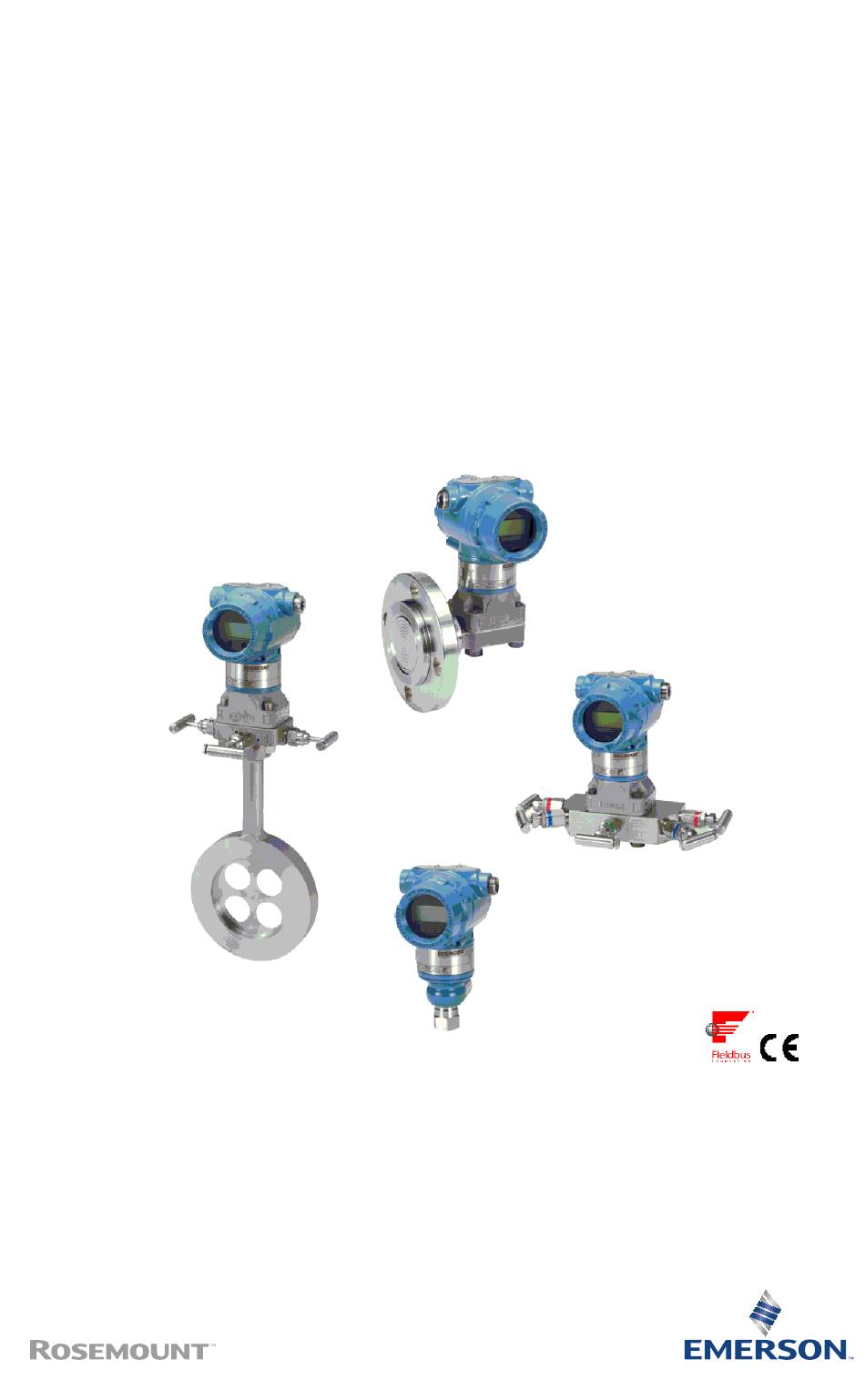

Quick Start Guide
00825-0200-4774, Rev DC
November 2024
™
Rosemount
3051 Pressure
Transmitter and Rosemount 3051CF
Series Flow Meters
with F
Fieldbus Protocol
™
OUNDATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3051 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 3051 Series

Summary of Contents for Emerson Rosemount 3051 Series

  • Page 1 Quick Start Guide 00825-0200-4774, Rev DC November 2024 ™ Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flow Meters with F Fieldbus Protocol ™ OUNDATION...
  • Page 2 November 2024 Quick Start Guide Contents About this guide........................... 3 System readiness......................... 5 Transmitter installation....................... 6 Product certifications........................ 27 www.Emerson.com...

  • Page 3: About This Guide

    (IS) installations. Refer to Rosemount 3051 Pressure Transmitter Reference Manual for more instructions. This guide is also available electronically at Emerson.com/global. 1.1  Safety messages  WARNING Explosions Explosions could result in death or serious injury.
  • Page 4 This is true for all systems used within the facility.  WARNING Refer to the Product certifications section of this Quick Start Guide documentation when using the RFID tag (option code Y3) for required installation conditions. www.Emerson.com...

  • Page 5: System Readiness

    DD4: DD Rev 1 Rosemount 3051 Pressure Transmitter DD5: DD Rev 1 with F OUNDATION Fieldbus Reference Emerson AMS Device Manager V 10.5 Manual or higher: DD Rev 2 Emerson AMS Device Manager V 8 to 10.5: DD Rev 1...

  • Page 6: Transmitter Installation

    3.1.1  Mount the transmitter in liquid applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so the drain/vent valves are oriented upward. Figure 3-1: Mounting the Transmitter in Liquid Applications In-line www.Emerson.com...
  • Page 7 Quick Start Guide November 2024 3.1.2  Mount the transmitter in gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. Figure 3-2: Mounting the Transmitter in Gas Applications In-line www.Emerson.com...
  • Page 8 Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 3-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 9 . If bolt material is not shown in Table 3-2, contact a local Emerson representative for more information. NOTICE Carbon steel bolts do not require lubrication, and the stainless steel bolts are coated with a lubricant to ease installation. Do not apply any additional lubricant when installing either type of bolt.
  • Page 10 The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown in Figure 3-5. Figure 3-5: O-ring location: Rosemount 3051S/3051/2051 A. Flange adapter B. O-ring C. PFTE-based profile (square) D. Elastomer profile (round) www.Emerson.com...
  • Page 11 NEMA Type 4X, IP66, and IP68. Consult factory if ® other ingress protection ratings are required. For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met. www.Emerson.com...
  • Page 12 Insert the tubing into the connection and tighten finger tight. 4. Tighten the gland nut to a torque of 25 ft-lb. Note A weep hole has been designed into the transmitter for safety and leak detection. If fluid begins to leak from the weep hole, www.Emerson.com...
  • Page 13 3.3  Rotate housing To improve visibility of optional LCD display: Procedure 1. Loosen the housing rotation screw. 2. First rotate the housing clockwise to the desired location. If the desired location cannot be achieved due to thread limit, rotate www.Emerson.com...
  • Page 14 • The Security switch can be enabled or disabled in software. To change the switch configuration: Procedure 1. If the transmitter is installed, secure the loop and remove power. 2. Remove the housing cover opposite the field terminal side. www.Emerson.com...

  • Page 15: Connect Wiring And Power Up

    3. Slide the Security and Simulate switches into the preferred position. 4. Replace the housing cover. Note Emerson recommends tightening the cover until there is no gap between the cover and the housing. Figure 3-9: Simulate and Security Switches A. Simulate disabled position B.
  • Page 16 When using a direct wiring method, wrap wire clockwise to ensure it is in place when tightening the terminal block screw. Note Emerson does not recommend using a pin or ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration.
  • Page 17 2. Connect the wiring pair and ground as indicated in Figure 3-10. 3. Replace the housing cover. Emerson recommends tightening the cover until there is no gap between the cover and the housing. 4. Plug and seal unused conduit connections. 3.5.2  Power supply The transmitter requires between 9 and 32 Vdc (9 and 30 Vdc for intrinsic safety and 9 and 17.5 Vdc for FISCO intrinsic safety) to...
  • Page 18 Note Some hosts do not support Locate Device in the device driver (DD). 3.6  Configuration Each F Fieldbus host or configuration tool has a different ™ OUNDATION way of displaying and performing configurations. Some use device www.Emerson.com...
  • Page 19 3-9. The Write Lock switch must be in the unlocked position if the switch has been enabled in software. Emerson ships devices from the factory with the software Write Lock disabled. To disable the software Write Lock, go to Overview → Device Information → Security and Simulation.
  • Page 20 Underlined text – configuration task numbers from configuration flow chart To use guided setup: • Navigate to Configure  → Guided Setup. • Select AI Block Unit Setup. Note Guided setup will automatically go through each step in the proper order. www.Emerson.com...
  • Page 21 2. To set XD_SCALE to the 0% and 100% scale points (the transmitter range): a) Select the XD_SCALE_UNITS from the drop down menu. b) Enter the XD_SCALE 0% point. This may be elevated or suppressed for level applications. c) Enter the XD_SCALE 100% point. www.Emerson.com...
  • Page 22 Guided setup will automatically go through each step in the proper order. — Enter the desired damping value in seconds. The permitted range of values is 0.4 to 60 seconds. • To use manual setup: — Navigate to Configure  → Manual Setup  → Process Variable. www.Emerson.com...
  • Page 23 Step 8. 8. Set switches and software Write Lock. a) Check switches. Note The Write Lock switch can be left in the locked or unlocked position. The Simulate enable/disable switch may be in either position for normal device operation. www.Emerson.com...
  • Page 24 O at 60 °F mm H O at 68 m Hg at 0 °C °C °F g/cm O at 68 °F cm H O at 4 °C   Out_Scale Scale and engineering units Pressure example Parameters Enter data Channel L_Type Direct www.Emerson.com...
  • Page 25 Indirect XD_Scale O at 68 °F 0–300 Note Select only the units that are supported by the device. Out_Scale 0–25 ft. 3.6.4  Display pressure on the LCD display Procedure Select the Pressure check box on the Display Configuration screen. www.Emerson.com...

  • Page 26: Zero Trim The Transmitter

    3.7  Zero trim the transmitter Note Emerson ships transmitters calibrated by either customer request or by the factory default of full scale (span = upper range limit). A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. When performing a zero trim, ensure the equalizing valve is open and all wet legs are filled to the correct level.

  • Page 27: Product Certifications

    European Directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at www.Emerson.com. 4.2  Ordinary location certification...
  • Page 28 Suitable for Class I Zone 2, Group IIC; HART: T4 (-60 °C ≤ T ≤ +70 °C); T5 (-60 °C ≤ T ≤ +40 °C) Fieldbus/ PROFIBUS: T4 (–60 °C ≤ T ≤ +60 °C) Type 4X IE USA FISCO Range 1–5 (HART) www.Emerson.com...
  • Page 29 Rosemount drawing 03031-1024, temperature code T4; suitable for Class I, Zone 0; Class I, Division 2, Groups A, B, C and D, T5 (–50 °C ≤ T ≤ +85 °C); Intrinsically Safe Class I, Division 1, Groups A, www.Emerson.com...
  • Page 30 –60 to +70 °C –60 to +80 °C –60 to +120 °C Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1 mm thick that forms a boundary between Category 1 (process www.Emerson.com...
  • Page 31 ≤ +85 °C) Table 4-2: Input Parameters Parameter HART Fieldbus/PROFIBUS Voltage U 30 V 30 V Current I 200 mA 300 mA Power P 0.9 W 1.3 W Capacitance C 0.012 μF 0 μF Inductance L 0 mH 0 mH www.Emerson.com...
  • Page 32 EN60079-31: 2014 Ex II 3 G Ex nA IIC T5 Gc (-40 °C ≤ T ≤ +70 °C); Ex II 1 D Ex Markings ta IIIC T95 °C T 105 °C Da (-20 °C ≤ T ≤ +85 °C) www.Emerson.com...
  • Page 33 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. www.Emerson.com...
  • Page 34 Ex ia I Ma (–60 °C ≤ T ≤ +70 °C) Markings: Table 4-6: Input Parameter Parameter HART Fieldbus/PROFIBUS FISCO Voltage U 30 V 30 V 17.5 V Current I 200 mA 300 mA 380 mA Power P 0.9 W 1.3 W 5.32 W www.Emerson.com...
  • Page 35 1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of IEC 60079-11. This must be taken into account when installing the apparatus. www.Emerson.com...
  • Page 36 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. www.Emerson.com...
  • Page 37 Certificate: ABNT NBR IEC60079-0:2013, ABNT NBR Standards: IEC60079-11:2013 Ex ia IIC T4 Ga (–60 °C ≤ T ≤ +60 °C) Markings: Table 4-9: Input Parameter Parameter FISCO Voltage U 17.5 V Current I 380 mA Power P 5.32 W www.Emerson.com...
  • Page 38 105 °C Da (-20 °C ≤ Ta ≤ +85 °C) 3051CF Series: Ex d IIC T6~T4 Ga/Gb 一、产品安全使用特殊条件 证书编号后缀“X”表明产品具有安全使用特殊条件：涉及隔爆接合面的维 修须联系产品制造商。 1. 涉及隔爆接合面的维修须联系产品制造商。 2. 产品使用厚度小于 1mm 的隔膜作为 0 区（过程连接）和 1 区（产 品其他部分）的隔离，安装和维护时需严格遵守制造商提供的说明 书，以确保安全性。 3. 产品外部涂层可能产生静电危险，使用时须防止产生静电火花，只 能用湿布清理。 二、产品使用注意事项 1. 用于爆炸性气体环境中，产品温度组别和使用环境温度之间的关系 为：（变送器） www.Emerson.com...
  • Page 39 8. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运 行中出现的故障，以杜绝损坏现象的发生。 9. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、 修复和改造”、GB/T3836.15-2017“爆炸性环境 第 15 部分： 电气装置的设计、选型和安装”、GB/T3836.16-2017“爆炸性环 境 第 16 部分：电气装置的检查与维护”、GB50257-2014“电 气装置安装工程爆炸和火灾危险环境电力装置施工及验收规范”和 GB15577-2007“粉尘防爆安全规程” GB12476.2-2010“可燃性粉 尘环境用电气设备 第 1 部分：用外壳和限制表面温度保护的电气设 备 第 2 节 电气设备的选择、安装和维护”的有关规定。 4.7.2  I3 China Intrinsic Safety GYJ23.1139X; GYJ20.1488X [Flow meters] Certificate www.Emerson.com...
  • Page 40 2. 本安电气参数： Transmi 最高输入 最大输入 最大输入 最大内部等效参数 tter 电压 Ui 电流 Ii 功率 P Ci (nF) Li (µH) output （V） （mA） （W） A, M F, W F, W 17.5 5.32 (FISCO) 注：Transmitter Output 为 F、W（FISCO）时，本安电气参数 符合 GB3836.19-2010 对 FISCO 现场仪表的参数要求。 www.Emerson.com...
  • Page 41 性环境 第 18 部分：本质安全系统”和 GB50257-2014“电气 装置安装工程爆炸和火灾危险环境电力装置施工及验收规范”, GB50527-1996 “电气装置安装工程爆炸和火灾危险环境电气 装置施工验收规范”以及 GB15577-2007 “粉尘防爆安全规 程”、GB12476.2-2006 “可燃性粉尘环境用电气设备 第 1 部 分：用外壳和限制表面温度保护的电气设备 第 2 节：电气设备 的选择、安装和维护”的有关规定。 4.7.3  N3 China Type n GYJ20.1110X Certificate GB/T 3836.1-2021, GB/T 3836.3-2021 Standards Ex ec IIC T5 Gc Markings www.Emerson.com...
  • Page 42 6. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、 检修、修复和改造”、GB3836.15-2000“爆炸性气体环境用电 气设备 第 15 部分：危险场所电气安装（煤矿除外）”、 GB3836.16-2006“爆炸性气体环境用电气设备 第 16 部分：电 气装置的检查和维护（煤矿除外）” 、GB50257-1996“电气装 置安装工程爆炸和火灾危险环境电力装置施工及验收规范”的 有关规定。 4.8  Japan E4 Japan Flameproof TC20577, TC20578, TC20583, TC20584 [HART]; TC20579, Certificate: TC20580, TC20581, TC20582 [Fieldbus] Ex d IIC T5 Markings: www.Emerson.com...
  • Page 43 Special Conditions for Safe Use (X): 1. See certificate for special conditions. 4.11  Combinations Combination of E2 and I2 Combination of E5 and I5 Combination of C6, E8, and I1 Combination of E7, I7, and N7 Combination of E8, I1, and N1 www.Emerson.com...

  • Page 44: Conduit Plugs And Adapters

    M20 x 1.5 ½–14 NPT ½ NPT Table 4-11: Thread Adapter Thread Sizes Male thread Identification mark M20 x1.5–6H ½–14 NPT ½–14 NPT ¾–14 NPT ¾–14 NPT Female thread Identification mark M20 x 1.5–6H ½–14 NPT ½–14 NPT G½ G½ www.Emerson.com...

  • Page 45: Additional Certifications

    AUT-IMS; Pressure transmitter type 3051 cannot be installed on diesel engines SDN  Det Norske Veritas (DNV) Type Approval TAA000004F Certificate: DNV GL Rules for Classification — Ships and offshore Intended Use: units Application: Location classes Temperature Humidity Vibration Enclosure www.Emerson.com...

  • Page 46: Declaration Of Conformity

    November 2024 Quick Start Guide SLL Lloyds Register (LR) Type Approval 11/60002 Certificate: Application: Environmental categories ENV1, ENV2, ENV3, and ENV5 C5 Custody Transfer - Measurement Canada Accuracy Approval AG-0226; AG-0454; AG-0477 Certificate: 4.14  Declaration of Conformity www.Emerson.com...
  • Page 47 Quick Start Guide November 2024 www.Emerson.com...
  • Page 48 November 2024 Quick Start Guide www.Emerson.com...
  • Page 49 Quick Start Guide November 2024 www.Emerson.com...
  • Page 50 Maximum operating temperature: -58 °F (-50 °C) to +158 °F (+70 °C) The RFID tags shall never be exposed to high electromagnetic field strengths according to IEC 60079-14. Electrostatic charges shall be avoided. The tags shall never be used next to strong charge generating processes. www.Emerson.com...
  • Page 51 Quick Start Guide November 2024  WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
  • Page 52 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
