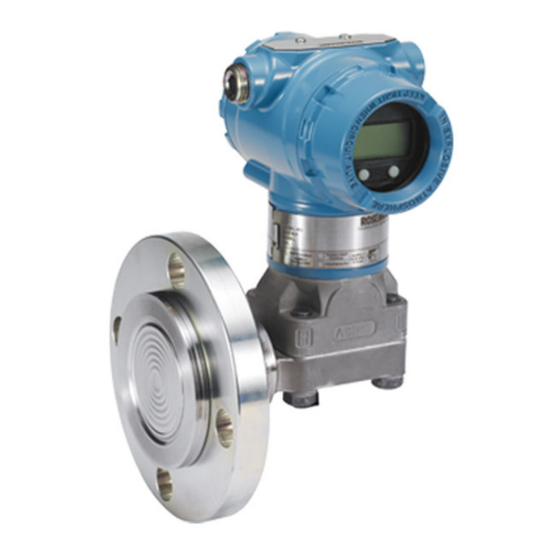

3051 Pressure Transmitter
®
00825-0100-4007, Rev HA
Revision 5 and 7
Quick Start Guide
January 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 3051 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 3051 Series

Summary of Contents for Emerson Rosemount 3051 Series

  • Page 1 Quick Start Guide 00825-0100-4007, Rev HA January 2020 ™ Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flow Meters ® with 4-20 mA HART Revision 5 and 7 Protocol Scan here for product documentation and drawings.
  • Page 2 Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 HART Revision 5 and 7 Reference Manual for more instructions. This manual is also available electronically at Emerson.com/Rosemount. WARNING Explosions Explosions could result in death or serious injury.
  • Page 3 January 2020 Quick Start Guide CAUTION Conduit/cable entries Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries. Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form.
  • Page 4 Quick Start Guide January 2020 Rosemount 3051...

  • Page 5: System Readiness

    Device Driver file names use Device and DD Revision, e.g., 10_01. HART Protocol is designed to enable legacy device driver revisions to continue to communicate with new HART devices. To access new functionality, you must download the new Device Driver. Emerson recommends downloading new Device Driver files to ensure full functionality.

  • Page 6: Transmitter Installation

    Quick Start Guide January 2020 Transmitter installation Mount the transmitter Figure 2-1: Panel Mount Coplanar Flange 5/16 x 1½ panel bolts are customer supplied. Figure 2-2: Pipe Mount Coplanar Flange Rosemount 3051...
  • Page 7 January 2020 Quick Start Guide Figure 2-3: Panel Mount Traditional Flange Figure 2-4: Pipe Mount Traditional Flange Figure 2-5: Panel Mount Rosemount 3051T Quick Start Guide...
  • Page 8 Quick Start Guide January 2020 Figure 2-6: Pipe Mount Rosemount 3051T Rosemount 3051...
  • Page 9 January 2020 Quick Start Guide 2.1.1 Mount the transmitter in liquid applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so the drain/vent valves are oriented upward. Figure 2-7: Mounting the Transmitter in Liquid Applications In-line 2.1.2...
  • Page 10 If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow the assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-10 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 11 2-1. If bolt material is not shown in Table 2-1, contact a local Emerson representative for more information. Carbon steel bolts do not require lubrication, and the stainless steel bolts are coated with a lubricant to ease installation. However, do not apply additional lubricant when installing either type of bolt.
  • Page 12 Quick Start Guide January 2020 Procedure 1. Use the fingers to tighten the bolts. 2. Torque the bolts to the initial torque value using a crossing pattern. Table 2-1 for initial torque value. 3. Torque the bolts to the final torque value using the same crossing pattern.
  • Page 13 January 2020 Quick Start Guide 2.1.6 Environmental seal for housing ® For NEMA 4X, IP66, and IP68 requirements, use thread sealing (PTFE) tape or paste on male threads of conduit to provide a water and dust tight seal. Consult factory if other ingress protection ratings are required. For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met.
  • Page 14 Quick Start Guide January 2020 Note A weep hole has been designed into the transmitter for safety and leak detection. If fluid begins to leak from the weep hole, isolate the process pressure, disconnect the transmitter, and reseal until the leak is resolved.
  • Page 15 3. Slide the Security and Simulate switches into the preferred position. 4. Replace the housing cover. Note Emerson recommends tightening the cover until there is no gap between the cover and the housing. Figure 2-14: Simulate and Security Switches A. Simulate disabled position B.
  • Page 16 Quick Start Guide January 2020 operating on battery backup. Emerson recommends a minimum of 12 Vdc under normal operating conditions and shielded twisted pair Type A cable. Procedure 1. To power the transmitter, connect the power leads to the terminals indicated on the terminal block label.
  • Page 17 January 2020 Quick Start Guide Note Emerson does not recommend using a pin or ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration. 2.4.1 Ground signal wiring Do not run signal wiring in conduit or open trays with power wiring or near heavy electrical equipment.
  • Page 18 Quick Start Guide January 2020 2.4.3 Power conditioner A Fieldbus segment requires a power conditioner to isolate the power supply filter and decouple the segment from other segments attached to the same power supply. 2.4.4 Grounding Signal wiring of the Fieldbus segment cannot be grounded. Grounding out one of the signal wires will shut down the entire Fieldbus segment.
  • Page 19 Table 2-2 shows Fast Key sequences for the latest DD. For Fast Key sequences using legacy DD's, contact your local Emerson representative. Note Emerson recommends installing the latest DD to access the complete functionality. Visit Emerson.com/Field-Communicator for information on updating the DD library.
  • Page 20 Quick Start Guide January 2020 Table 2-2: Device Revision 9 and 10 (HART 7), DD Revision 1 Fast Key Sequence (continued) Function Fast Key sequence HART 7 HART 5 Upper sensor trim 3, 4, 1, 1 3, 4, 1, 1 Digital zero trim 3, 4, 1, 3 3, 4, 1, 3...
  • Page 21 January 2020 Quick Start Guide Note Figure 2-18 to confirm external button functionality. Table 2-3: LOI Button Operation Button Left SCROLL Right ENTER Figure 2-17: LOI Menu Assign PV HART Revision 2.5.3 Switch HART revision mode If the HART configuration tool is not capable of communicating with HART Revision 7, the Rosemount 3051 loads a generic menu with limited capability.
  • Page 22 HART revision when the correct device driver is loaded. Trim the transmitter Emerson calibrates the devices at the factory. Once they are installed, Emerson recommends performing a zero trim on gage and differential pressure transmitters to eliminate error due to mounting position or static pressure effects.
  • Page 23 January 2020 Quick Start Guide Connect wiring and power up for instructions. 2. Follow the HART menu to perform the desired zero trim. Table 2-4: Zero Trim Fast Keys Analog zero (set 4 mA) Digital zero Fast Key Sequence 3, 4, 2 3, 4, 1, 3 2.6.2 Trimming with configuration buttons...
  • Page 24 Quick Start Guide January 2020 Trim with analog Zero and Span (option D4) Procedure 1. Set the transmitter pressure. 2. Press and hold the Zero button for two seconds to perform an analog zero trim. Rosemount 3051...

  • Page 25: Safety Instrumented Systems Installation

    January 2020 Quick Start Guide Safety instrumented systems installation For safety certified installations, refer to the Rosemount 3051 HART Revision 5 and 7 Reference Manual for installation procedure and system requirements. Quick Start Guide...

  • Page 26: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine...
  • Page 27 January 2020 Quick Start Guide Standards FM Class 3600 - 2011, FM Class 3610 - 2010, FM Class 3611 - 2004, FM Class 3810 - 2005, ANSI/NEMA 250 - 2008 Markings IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; DIV 1 when connected per Rosemount drawing 03031-1019;...
  • Page 28 Quick Start Guide January 2020 be taken into account during installation and use to prevent impact and friction. 2. The Rosemount 3051 Transmitter with the transient terminal block (Option code T1) will not pass the 500 Vrms dielectric strength test, and this must be taken into account during installation.
  • Page 29 January 2020 Quick Start Guide Dust-Ignitionproof for Class II and Class III, Division 1, Groups E, F, and G; T5 (–50 °C ≤ Ta ≤ +85 °C); Class I, Division 2, Groups A, B, C, and D; T5; Suitable for Class I Zone 2, Group IIC;...
  • Page 30 Quick Start Guide January 2020 4. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking. 4.4.2 I1 ATEX Intrinsic Safety and Dust Certificate BAS97ATEX1089X; Baseefa11ATEX0275X Standards EN60079-0:2012 + A11:2013, EN60079-11:2012, EN60079-31:2014 Markings HART:...
  • Page 31 January 2020 Quick Start Guide Table 4-3: Input Parameters Parameter Fieldbus/PROFIBUS Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C ≤5 nF Inductance L ≤10 µH Special Conditions for Safe Use (X): 1. The apparatus is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of EN60079-11: 2012.
  • Page 32 Quick Start Guide January 2020 Markings Ex db IIC T6…T4 Ga/Gb T6(–60 °C ≤ T ≤ +70 °C), T4/T5(–60 °C ≤ T ≤ +80 °C); Ex ta IIIC T95 °C T 105 °C Da (-20 °C ≤ T ≤ +85 °C) Table 4-4: Process Temperature Temperature class...
  • Page 33 January 2020 Quick Start Guide Table 4-5: Input Parameters (continued) Parameter HART Fieldbus/PROFIBUS Current I 200 mA 300 mA Power P 0.9 W 1.3 W Capacitance C 0.012 µF 0 µF Inductance L 0 mH 0 mH Special Conditions for Safe Use (X): 1.
  • Page 34 Quick Start Guide January 2020 3. It is a condition of manufacture that only the apparatus fitted with housing, covers, and sensor module housing made out of stainless steel are used in Group 1 applications. 4.5.3 IG IECEx FISCO Certificate IECEx BAS 09.0076X Standards IEC60079-0:2011, IEC60079-11:2011...
  • Page 35 January 2020 Quick Start Guide Brazil 4.6.1 E2 INMETRO Flameproof Certificate UL-BR 13.0643X Standards ABNT NBR IEC 60079-0:2013; ABNT NBR IEC 60079-1:2016; ABNT NBR IEC 60079-26:2016 Markings Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ Ta ≤ +70 °C), T4/T5 (–60 °C ≤...
  • Page 36 Quick Start Guide January 2020 Table 4-8: Input Parameters (continued) Parameter HART Fieldbus/PROFIBUS Inductance L 0 mH 0 mH Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IRC 60079-11.
  • Page 37 January 2020 Quick Start Guide China 4.7.1 E3 China Flameproof Certificate GYJ19.1056X [Transmitters]; GYJ15.1368X [Flow meters] Standards GB3836.1-2010, GB3836.2-2010, GB3836.20-2010, GB12476.1-2013, GB12476.5-2013 Markings 3051 Series: Ex d IIC T6 ~ T4 Ga/Gb, Ex tD A20 IP66 T95 °C T 105 °C (-20 °C ≤ Ta ≤ +85 °C) 3051CF Series: Ex d IIC T5/T6 Ga/Gb 一、产品安全使用特殊条件...
  • Page 38 Quick Start Guide January 2020 4. 安装现场应不存在对产品外壳有腐蚀作用的有害气体。 5. 现场安装时，电缆引入口须选用国家指定的防爆检验机构按检验认 可、具有 Ex dⅡC，Ex tD A20 IP66 防爆等级的电缆引入装置或堵封 件，冗余电缆引入口须用堵封件有效密封。 6. 用于爆炸性气体环境中，现场安装、使用和维护必须严格遵守“断电 后开盖！”的警告语。用于爆炸性粉尘环境中，现场安装、使用和维 护必须严格遵守“爆炸性粉尘场所严禁开盖！”的警告语。 7. 用于爆炸性粉尘环境中，产品外壳表面需保持清洁，以防粉尘堆 积，但严禁用压缩空气吹扫。 8. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运 行中出现的故障，以杜绝损坏现象的发生。 9. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、修 复和改造”、GB/T3836.15-2017“爆炸性环境 第 15 部分：电气装置 的设计、选型和安装”、GB/T3836.16-2017“爆炸性环境 第 16 部 分：电气装置的检查与维护”、GB50257-2014“电气装置安装工程爆...
  • Page 39 January 2020 Quick Start Guide 1. 产品使用环境温度范围： 气体/粉尘 温度组别 环境温度范围 Transmitter output 气体 A, M -60 °C ~ +40 °C 气体 A, M -60 °C ~ +70 °C 气体 F, W -60 °C ~ +60 °C 气体 -40 °C ~ +70 °C 粉尘...
  • Page 40 Quick Start Guide January 2020 8. 对于爆炸性粉尘环境，现场安装、使用和维护必须严格遵守“爆 炸性粉尘场所严禁开盖！”的警告语。 9. 用户不得自行更换该产品的零部件，应会同产品制造商共同解 决运行中出现的故障，以杜绝损坏现象的发生。 10. 安装现场确认无可燃性粉尘存在时方可维修。 11. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013 “爆炸性环境 第 13 部分：设备的修理、检修、 修复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部分：危险场所电气安装（煤矿除外）”、GB3836.16-2006 “爆炸性气体环境用电气设备 第 16 部分：电气装置的检查和维 护（煤矿除外）”、GB3836.18-2010“爆炸性环境 第 18 部分： 本质安全系统”和 GB50257-2014“电气装置安装工程爆炸和火灾 危险环境电力装置施工及验收规范”, GB50527-1996 “电气装置 安装工程爆炸和火灾危险环境电气装置施工验收规范”以及 GB15577-2007 “粉尘防爆安全规程”、GB12476.2-2006 “可燃性 粉尘环境用电气设备...
  • Page 41 January 2020 Quick Start Guide 4. 安装现场确认无可燃性气体存在时方可维修。 5. 用户不得自行更换该产品的零部件，应会同产品制造商共同解 决运行中出现的故障，以杜绝损坏现象的发生。 6. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、 修复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部分：危险场所电气安装（煤矿除外）”、GB3836.16-2006 “爆炸性气体环境用电气设备 第 16 部分：电气装置的检查和维 护（煤矿除外）” 、GB50257-1996“电气装置安装工程爆炸和火 灾危险环境电力装置施工及验收规范”的有关规定。 Japan 4.8.1 E4 Japan Flameproof Certificate TC20577, TC20578, TC20583, TC20584 [HART]; TC20579, TC20580, TC20581, TC20582 [Fieldbus] Markings Ex d IIC T5 Republic of Korea...
  • Page 42 Quick Start Guide January 2020 4.10.2 IM EAC Intrinsically Safe Markings HART: 0Ex ia IIC T4/T5 Ga X, T4(–60 °C ≤ Ta ≤ +70 °C), T5(-60 °C ≤ Ta ≤ +40 °C) Fieldbus/PROFIBUS: 0Ex ia IIC T4 Ga X (–60 °C ≤ Ta ≤ +60 °C) Special Conditions for Safe Use (X) See certificate for special conditions.
  • Page 43 January 2020 Quick Start Guide Table 4-11: Thread Adapter Thread Sizes Male thread Identification mark M20 × 1.5 – 6H ½–14 NPT ½ –14 NPT ¾ –14 NPT ¾ –14 NPT Female thread Identification mark M20 × 1.5 – 6H ½–14 NPT ½–14 NPT G½...
  • Page 44 Quick Start Guide January 2020 Intended DNV GL rules for classification - ships and offshore units Application Table 4-12: Location Classes Temperature Humidity Vibration Enclosure 4.13.4 SLL Lloyds Register (LR) Type Approval Certificate 11/60002 Application Environmental categories ENV1, ENV2, ENV3, and ENV5 4.13.5 C5 Custody Transfer - Measurement Canada Accuracy Approval Certificate AG-0226;...
  • Page 45 January 2020 Quick Start Guide 4.14 EU Declaration of Conformity Quick Start Guide...
  • Page 46 Quick Start Guide January 2020 Rosemount 3051...
  • Page 47 January 2020 Quick Start Guide Quick Start Guide...
  • Page 48 Quick Start Guide January 2020 Rosemount 3051...
  • Page 49 January 2020 Quick Start Guide 4.15 China RoHS table Rosemount 3051 China RoHS List of Rosemount 3051 Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 50 Quick Start Guide January 2020 Rosemount 3051...
  • Page 51 January 2020 Quick Start Guide Quick Start Guide...
