Summary of Contents for Ltech Super Panel 6S
- Page 1 Super Panel 6S Manual www. ltech-led .com...
-
Page 2: Application Diagram
Application Diagram Wi-Fi/2.4G/5G CLOUD Phone user ... Phone user 1 Scene Timing Automation Home appliances & accessories Router Amazon Echo Google HVAC management module Wi-Fi Ethernet Bluetooth Bluetooth 4.2 Mesh Bluetooth speaker SuperPanel6S Mesh Bluetooth Mesh Phone user 1 Intelligent Lighting Constant Voltage Constant Current Smart Switch... -
Page 3: Product Introduction

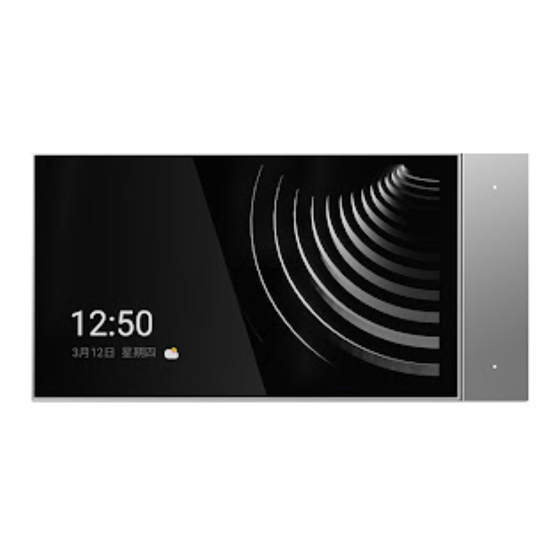

Product Introduction Recommended Applications Super Panel 6S is a central smart home control panel, featuring a 6-inch IPS screen 1.Connect to a lamp and get fast lamp control with 1280 × 720 resolution.It is compatible with Wi-Fi 2.4G + 5G, Ethernet and Bluetooth 5.0 SIG Mesh communication. -
Page 4: Product Overview
Product Overview Installation Steps 1. AC-powered Light sensor IR emitter Proximity sensor 1.1 Turn off the circuit breaker and remove any concrete or corrosion that are inside the 86 type wall box. Trim each wire in the wall box to about 10cm in Speaker length. - Page 5 For the detailed installation method, please refer to the panel mounting frame manual. Panel mounting frame and Super Panel 6S are sold separately. Manual Combine three panel boxes into one...
- Page 6 Scan and download the App 2.Configure the Super Panel 6S Power on the Super Panel 6S and wait for a while to start it up. Follow the page guidelines of the panel to connect it to the Wi-Fi. Once connected successfully, a QR code for the device will be displayed on the interface and you'll be able to complete the configuration.
- Page 7 Please refer to manuals of related products. Follow the prompts to add the In the “Room” interface, click the blank area of the Super Panel 6S card to get devices your want and access the Super Panel 6S interface. Click “Device”...
-
Page 8: Warranty Agreement
3. How to reset the device to factory defaults? Super Panel 6S has one standard user account only. The Super Panel 6S that has been added needs to be deleted with the APP before your login. Attentions The installation location should avoid being close to large-area metal objects against signal interference. -
Page 9: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
