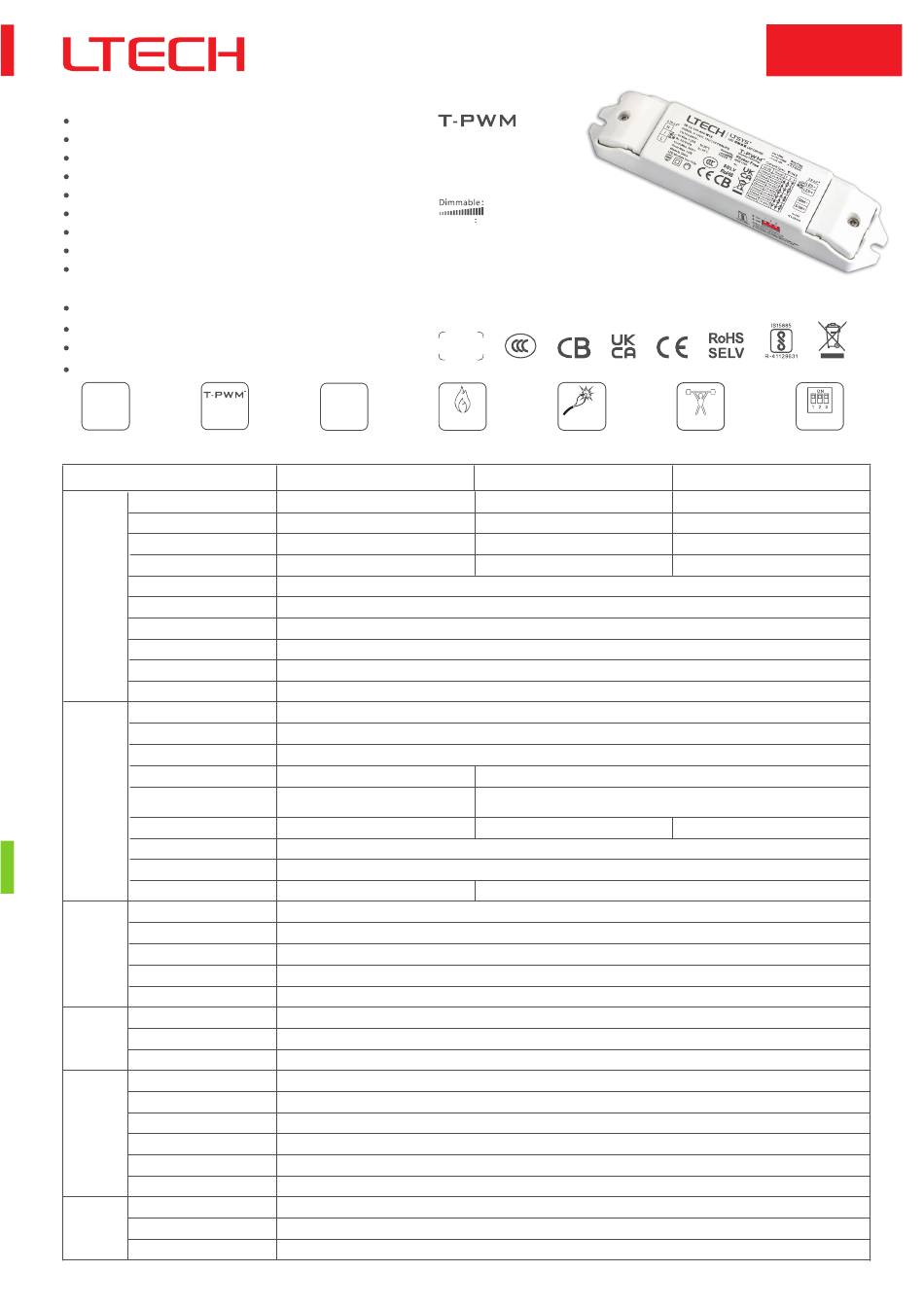

Ltech SE-10-350-700-W1A Quick Start Manual

LED Intelligent Driver
Dimming interface: 0-10V (1-10V/10VPWM/RX).
TM
T- PWM digital dimming,present a perfect visual experience.
With soft-on and fade in function, visual more comfortable.
Automatic recognition of 0-10V, 1-10V input signal.
DIP switch for multiple optional currents' quick selection.
Dimming range: 0~100%, LED start at 0.01% possible.
High frequency exemption level.
0-100% flicker-free,
Ultra-low consumption of 0-10V ports: < 0.05mA.
Innovative thermal management technology, intelligent power
life protection.
Over-heat / Over load / Short circuit protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).
0-10V
Super depth
dimming
technology
Specification
Model
Output Voltage
Max Output Voltage
Output Current
Output Power Range
Strobe Level
OUTPUT
Dimming Range
LF current ripple(<120Hz)
Current Accuracy
Ripple & Noise
PWM Dimming Frequency
Dimming Interface
Input Voltage
Frequency
Input Current
INPUT
Power Factor
Efficiency
Inrush Current(typ.)
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temp., Humidity
Temp. Coefficient
Vibration
Over-heat Protection
PROTECTION
Over Load Protection
Short Circuit Protection
Withstand Voltage
Isolation Resistance
SAFETY &
Safety Standards
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Dimension
OTHERS
Packing
Weight(G.W.)
Super depth dimming technology
Flicker-free
IEEE 1789
10000 1
TUV
CB
RCM
CE
CCC
5
years
warranty
Flicker-free
IEEE 1789
Over-heat
Protection
SE-10-350-700-W1A
2-12Vdc
20Vdc
350-700mA
0.7W~8.4W
No video flicker / High frequency exemption assessment level.
0~100%, 0.01% dimming depth.
<1%
±5%
≤2V
≤3600Hz
0-10V Interface consumption: <0.05mA
0-10V (1-10V/10VPWM/RX)
100-240Vac
50/60Hz
0.15A@115Vac, 0.1A@230Vac
PF>0.95/115Vac , PF>0.8/230Vac,
at full load
75%
Cold start 5A at 230Vac
L-N: 1kV
<0.35mA/230Vac
ta: -30°C ~ 50°C tc: 75°C
20 ~ 95%RH, non-condensing
-40°C ~ 80°C, 10~95%RH
±0.03%/°C (0-50°C)
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Shut down the output when current load≥102%, auto recovers.
Shut down automatically if short circuit occurs, auto recovers.
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
IEC/EN61347-1, IEC/EN61347-2-13
EN55015, EN61000-3-2 Class C, IEC61000-3-3
EN61000-4-2,3,4,5,6,8,11 EN61547
IEEE 1789
135×30×20mm(L×W×H)
140×34×23mm(L×W×H)
80g±10g
1
SE-10-350-700-W1A
SE-12-100-400-W1A
SE-12-350-700-W1A
Certificate No. B 001119 0007 Rev. 00
Certificate No. SG PSB-LE-01925
Certificate No. RCMP19279 001
EMC Certificate No. BSTXD190412501201EC
LVD Certificate No. BST190412501201SC
Certificate No. 2019011002209509
Short Circuit
Protection
SE-12-100-400-W1A
10-42Vdc
50Vdc
100-400mA
1W~12W
0.25A@115Vac, 0.15A@230Vac
PF>0.97/115Vac , PF>0.85/230Vac, at full load
82%
<0.5mA/230Vac
0-10V
4 in 1 dimming
0-10V
1-10V
PWM
RX
Over Multiple
Load
Protection
Current
SE-12-350-700-W1A
10-24Vdc
35Vdc
350-700mA
3.5W~12W
81%
