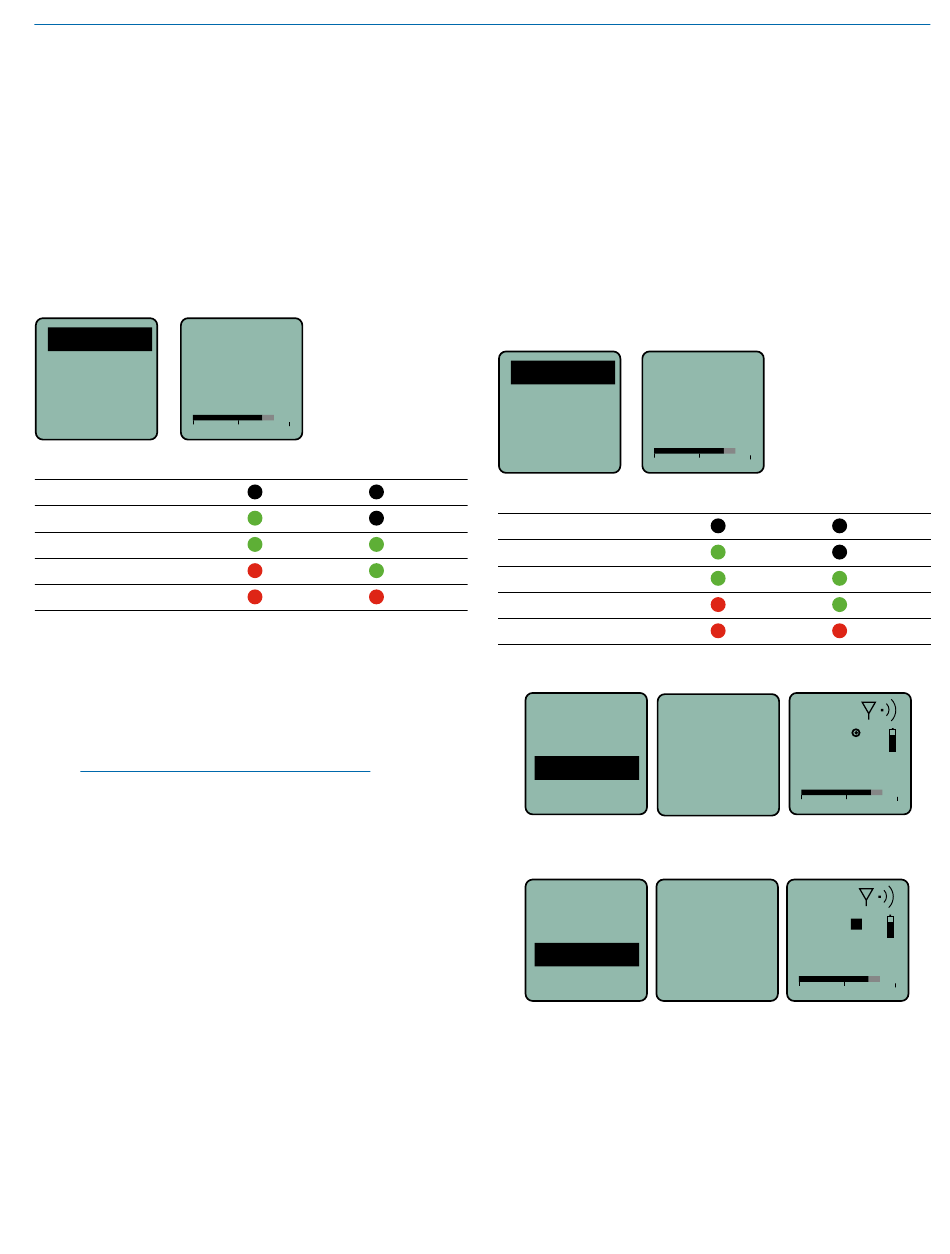

Transmitter Operating
Instructions
• Install battery(s)
• Turn power on in the Standby mode (see previous
section)
• Connect microphone and place it in the position
where it will be used.
• Have user talk or sing at the same level that will be
used in the production, and adjust the input gain so
that the -20 LED blinks red on louder peaks.
Gain
Gain
Freq
Rolloff
Compat
-40
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
• Set the frequency and compatibility mode to match
the receiver.
• Turn the RF output on with the Rf On? item in the
power menu, or by turning the power off and then
back on while holding the power button in and wait-
ing for the counter to reach 3.
NOTE: The translucent "bubble" next to the
antenna connector is an IR port that can be
used to transfer settings from an IR enabled
Lectrosonics receiver. Refer to the receiver manual
for details.
Rio Rancho, NM
Use the UP and DOWN
arrow buttons to adjust
25
the gain until the -20
LED blinks red on
louder peaks
-20 0
-20 LED -10 LED
Off Off
Green Off
Green Green
Red Green
Red Red
Digital Hybrid Wireless Belt-Pack Transmitters
Recorder Operating
Instructions
• Install battery(s)
• Insert microSDHC memory card
• Turn power on
• Format memory card
• Connect microphone and place it in the position
where it will be used.
• Have user talk or sing at the same level that will be
used in the production, and adjust the input gain so
that the -20 LED blinks red on louder peaks
Gain
Gain
Freq.
Rolloff
Compat
-40
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
• Press MENU/SEL and choose Record from the
menu
Files
Format
RECORD-
Record
Gain
• To stop recording, press MENU/SEL and choose
Stop; the word SAVED appears on the screen
Files
Format
Stop
Gain
To play back the recordings, remove the memory card
and copy the files onto a computer with video or audio
editing software installed.
Use the UP and DOWN
arrow buttons to adjust
25
the gain until the -20
LED blinks red on
louder peaks
-20
0
-20 LED -10 LED
Off Off
Green Off
Green Green
Red Green
Red Red
b 19
A E
REC
503.800
ING
-40 -20
b 19
A E
SAVED
503.800
-40 -20
0
0
7
