Lectrosonics DHu Instruction Manual
Digital handheld transmitter
Hide thumbs
Also See for DHu:
- Instruction manual (20 pages) ,
- Quick start manual (17 pages) ,
- Quick start manual (17 pages)
Related Manuals for Lectrosonics DHu
Summary of Contents for Lectrosonics DHu

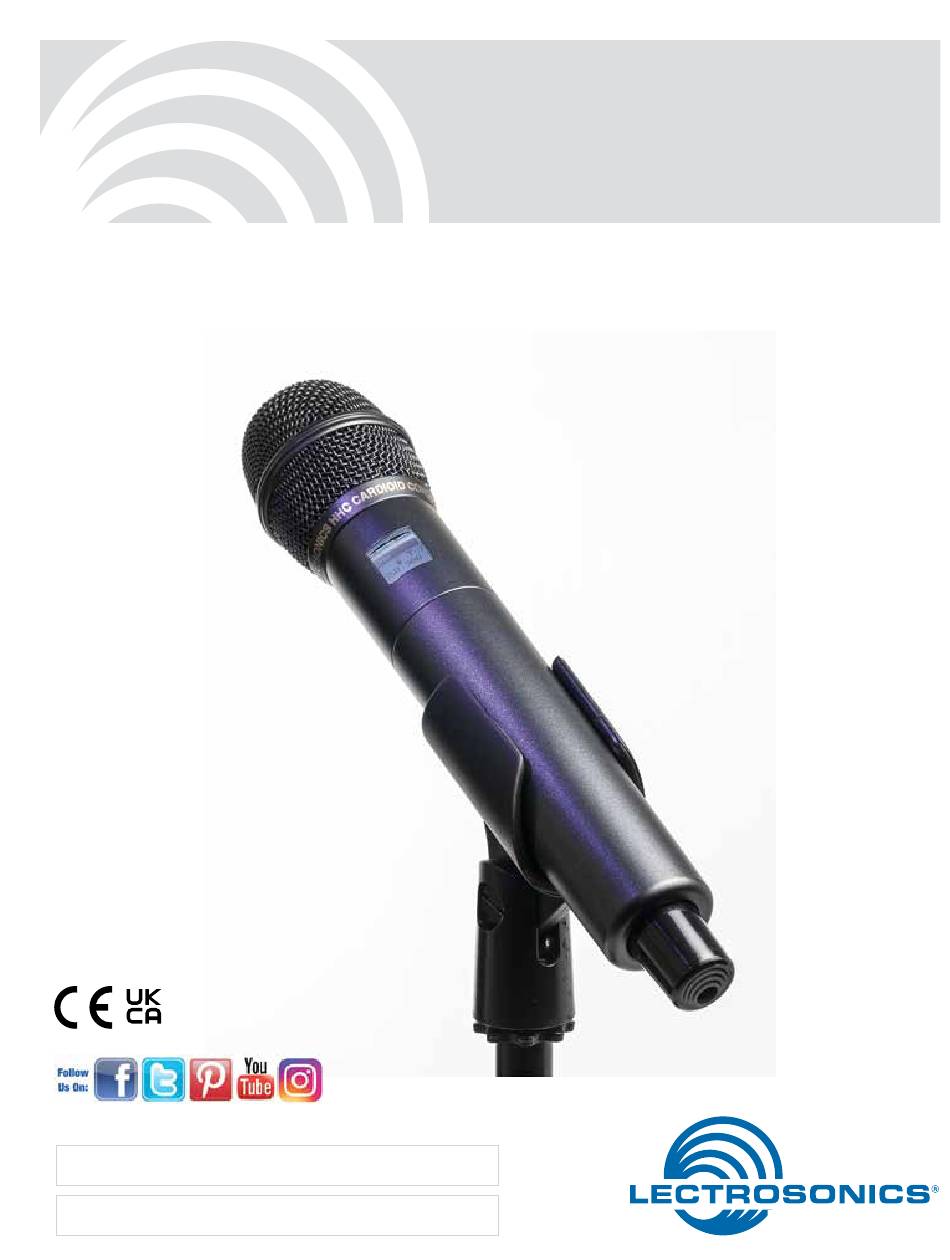

- Page 1 INSTRUCTION MANUAL Digital Handheld Transmitter DHu, DHu/E01, DHu/E01-B1C1 Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Table Of Contents
, DHu/E01, DHu/E01-B1C1 Table of Contents General Technical Description .......... 3 Microphone Capsules: ............4 Mechanical Assembly ............4 Battery Installation ............. 5 Control Panel ..............5 Setup and Adjustments............6 Powering On ..............6 Powering Off ..............6 Standby Mode ..............6 Battery Condition ............. -
Page 3: General Technical Description
DSQD Receiver. The key is then synced Introduction with the DHu, DHu/E01 via the IR port. The audio will be encrypted and can only be listened to if both DHu, DHu/ The transmitter benefits from a fourth generation design E01 and receiver have the matching encryption key. -
Page 4: Microphone Capsules
Align flats on the wrench with flats on the capsule. lectrosonics.com listed the DHu, DHu/E01 product page. * Capsule sold separately. *All product names are trademarks of their respective owners, which are in no way affiliated with Lectrosonics. LECTROSONICS, INC. -
Page 5: Battery Installation
Digital Hand Held Transmitter Battery Installation Control Panel To insert batteries, close the eject lever and insert the Six membrane switches on the control panel are used upper contacts first (closest to the mic capsule). Polar- to set up the transmitter by navigating the menus on the ity is marked on the label in the bottom of the battery LCD and selecting the desired values. -
Page 6: Setup And Adjustments
, DHu/E01, DHu/E01-B1C1 Setup and Adjustments A notice will appear briefly confirming that the RF output Powering On of the transmitter is turned off, followed by the Main Window. The antenna symbol will blink as a reminder Press and hold the Power Button until a status bar on that the RF output is turned off. -
Page 7: Menu Map
Digital Hand Held Transmitter LCD Menu Map Main Menu Tree Select level with arrow buttons G a i n I n p u t G a i n to select. | - 4 0 | - 2 0 + 0 | Select option with arrow buttons R o l l o f f to select. -
Page 8: Navigating Menus And Screens
, DHu/E01, DHu/E01-B1C1 Navigating Menus and Screens Programmable Switch Functions The Main Window displays the following information: A special button on the outside of the housing can be configured to provide several different functions, or to be inoperative by selecting (none). -
Page 9: Menu Item Descriptions
Digital Hand Held Transmitter Menu Item Descriptions ProgSw Mute is a “push on/push” off function that toggles on and off each time the button on the housing is pressed. The Input Mute mute function defeats the audio in the transmitter, so it works in all compat- ibility modes and with all receivers. -
Page 10: Rolloff
GetAll Frequency Sync to receive (get) all available settings from another Group Gr p x device via the IR port, including the performer’s name, (or whatever name the user chooses for the DHu), fre- quency, and talkback state. LECTROSONICS, INC. -
Page 11: Key Type
Lectrosonics transmitters and receivers contain the Universal key. The key does not have to be SendKey generated in the Dhu. Simply set the Lectrosonics encryption-capable transmitters and receivers to Universal key type, and the encryption is in place. This allows for convenient encryption amongst... -
Page 12: Backlit
This is used to restore the factory settings. About This shows version and firmware information. #P1298 Anti Roll Sleeve Screw on mic clip for standard mic stands with 5/8”-27 thread. 40096 Alkaline Batteries DHu is shipped with two (2) batteries. LECTROSONICS, INC. -
Page 13: Optional Accessories
Adapts Neumann KK104 and KK105 and Sennheiser capsules for the 5000 Series wireless with Gain Shure style threads to the DHu, DHu/E01 transmitter HHA Adapter is available from Ambient Recording dealers Gain set to minimum (0) on Visit: www.ambient.de... -
Page 14: Specifications
Firmware updates are made with a file downloaded from 40 Hz to 20 kHz (+/- 1dB) Frequency response the web site and the DHu connected via USB. -3 dB @35, 50 and 70 Hz; selectable; 36 dB/ Low frequency roll-off:... -
Page 15: Troubleshooting
4) Interference may be present. Turn transmitter off and observe the RF level indicator on the receiver. Change frequency if necessary. 5) With Lectrosonics HHC or HHVMC: return attenuator control back to default setting of “F”, then readjust audio gain per instructions in the Gain section. - Page 16 , DHu/E01, DHu/E01-B1C1 FCC Compliance: ISEDC Notices: Per RSS-210 This device complies with FCC radiation exposure limits as set forth for an uncontrolled environment. This device This device operates on a no-protection no-interference should be installed and operated so that its antenna(s) basis.
-
Page 17: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. -
Page 18: Declaration Of Conformity
, DHu/E01, DHu/E01-B1C1 LECTROSONICS, INC. - Page 19 Digital Hand Held Transmitter Rio Rancho, NM...
- Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
