Features; Battery Status Led Indicator - Lectrosonics SMWB/E07 Series Instruction Manual

Features

Antenna
Port

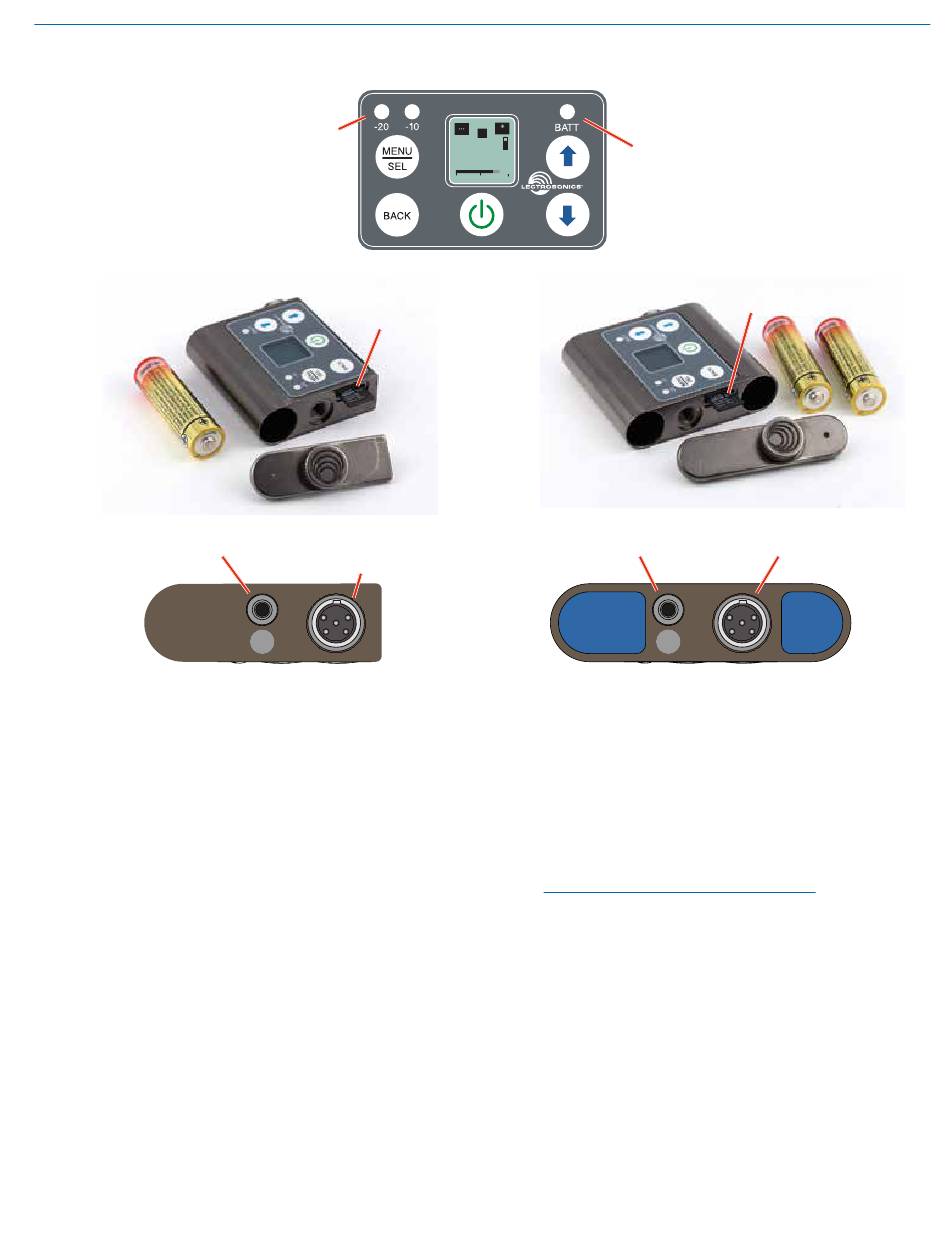

Battery Status LED Indicator

AA batteries can be used to power the transmitter.
The LED labeled BATT on the keypad glows green
when the batteries are good. The color changes to red
when the battery voltage drops down and stays red
through most of the battery life. When the LED begins
to blink red, there will be only a few minutes remaining.
The exact point at which the LEDs turn red will vary
with battery brand and condition, temperature and
power consumption. The LEDs are intended to simply
catch your attention, not to be an exact indicator of
remaining time.
A weak battery will sometimes cause the LED to glow
green immediately after the transmitter is turned on, but
it will soon discharge to the point where the LED will
turn red or the unit will turn off completely.
Rio Rancho, NM
Modulation
Indicators
microSDHC
memory card
port
Audio
Input
Jack
Digital Hybrid Wireless Belt-Pack Transmitters
REC
Status LED
-40 -20 0
Antenna
Port
Some batteries give little or no warning when they
are depleted. If you wish to use these batteries in the
transmitter, you will need to manually keep track of the
operating time to prevent interruptions caused by dead
batteries.
Start with a fully charged battery, then measure the time
it takes for the Power LED to go out completely.
NOTE: The battery timer feature in many
Lectrosonics receivers is very helpful in measuring
battery runtime. Refer to the receiver instructions
for details on using the timer.
Battery
microSDHC
memory card
port
Audio
Input
Jack
