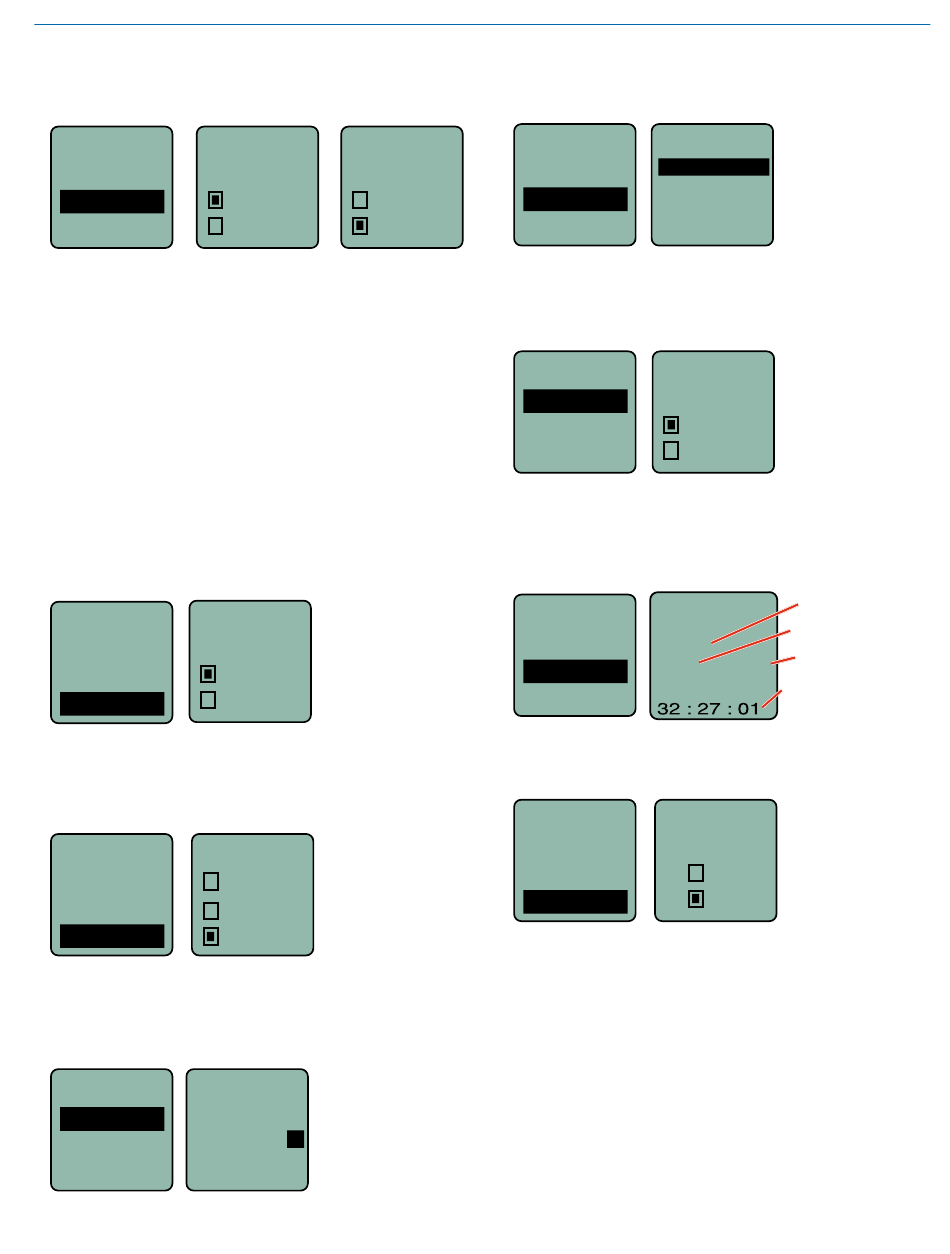

Selecting Step Size

This menu item allows frequencies to be selected in
either 100 kHz or 25 kHz increments.
Rolloff StepSiz
Compat
StepSiz
Phase
If the desired frequency ends in .025, .050 or .075 MHz,
the 25 kHz step size must be selected.
Normally, the receiver is used to find a clear operat-
ing frequency. All Lectrosonics Digital Hybrid Wireless
receivers provide a scanning function to quickly and
easily find prospective frequencies with little or no RF
interference. In other cases, a frequency may be speci-
fied by officials at a large event such as the Olympics
or a major league ball game. Once the frequency is
determined, set the transmitter to match the associated
receiver.

Selecting Audio Polarity (Phase)

Audio polarity can be inverted at the transmitter so the
audio can be mixed with other microphones without
comb filtering. The polarity can also be inverted at the
receiver outputs.
Phase
Rolloff
Compat
StepSiz
Phase

Setting Transmitter Output Power

The output power can be set to 25 mW, 50 mW or
100 mW.
Compat TxPower
StepSiz
Phase
TxPower

Setting Scene and Take Number

Use UP and DOWN arrows to advance Scene and Take
and MENU/SEL to toggle. Press the BACK button to
return to menu.
Sc&Take
TxPower
Sc&Take
Scene
Takes
Take
Naming
Rio Rancho, NM
StepSiz
100 kHz 100 kHz
25 kHz 25 kHz
Pos.
Neg.
25 mW
50 mW
100 mW
1
5
Digital Hybrid Wireless Belt-Pack Transmitters

Choosing Takes for Replay

Use UP and DOWN arrows to toggle and MENU/SEL to
play back.
TxPower
Sc&Take
Takes
Naming

Recorded File Naming

Choose to name the recorded files by the sequence
number or by the clock time.
®
TxPower
Naming

SD Info

Default
SD Info
Information regarding the microSDHC memory card
including space remaining on card.
TxPower
Naming
SD Info
Default

Restoring Default Settings

This is used to restore the factory settings.
TxPower
Naming
SD Info
Default
Takes
S01 T001
S01 T002
S02 T001
S03 T001
Naming
Seq #
Clock
Fuel gauge
[SMWB ]
Storage used
E.........................F
Storage capacity
0/ 14G
Available recording
Max Rec
time (H : M : S)
Default
settings
No
Yes
