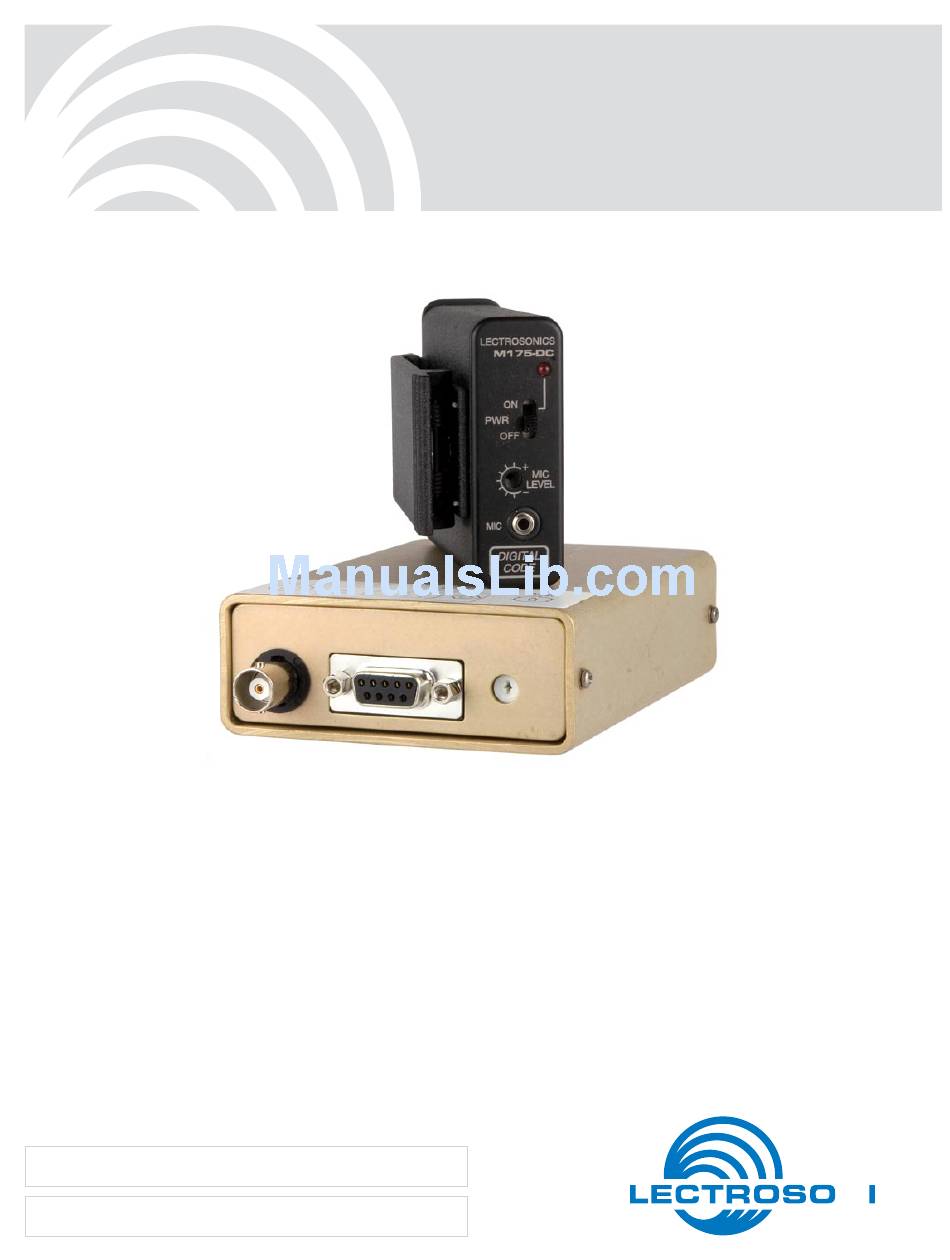

- Page 1 INSTRUCTION MANUAL LE Series Wireless Microphone System Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Specifications
+5 VDC when valid code is received, otherwise 0 VDC (10k Ohm load) Max Current: 103 mA, All LEDs on RF Sensitivity: -109 dBm for 20 dB SINAD Max Audio Out: 1 V RMS no load; 0.7 V RMS 1 k Ohm load LECTROSONICS, INC. - Page 3 MIC LEVEL Adjustment Microphone Jack M119RA The M175DC transmitter features a wide range input limiter to guard against overload distortion and allow maximum signal to noise ratio. The following procedure will adjust the wireless system to take full advantage of the limiter action to prevent excessive output level from the receiver from overloading the recorder.
-
Page 4: Service And Repair
This warranty does not apply to used or demonstrator equipment. Rio Rancho, NM 87174 Rio Rancho, NM 87124 Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot USA correct the defect in your equipment, it will be replaced at no charge with a similar new item.
