Setup Screen Details

Locking/Unlocking Changes to Settings

Changes to the settings can be locked in the Power
Button Menu.
Clock
Locked?
Locked
LED Off
About
When changes are locked, several controls and actions
can still be used:
• Settings can still be unlocked
• Menus can still be browsed
• Power can still be turned off by using the power
menu or removing the batteries.

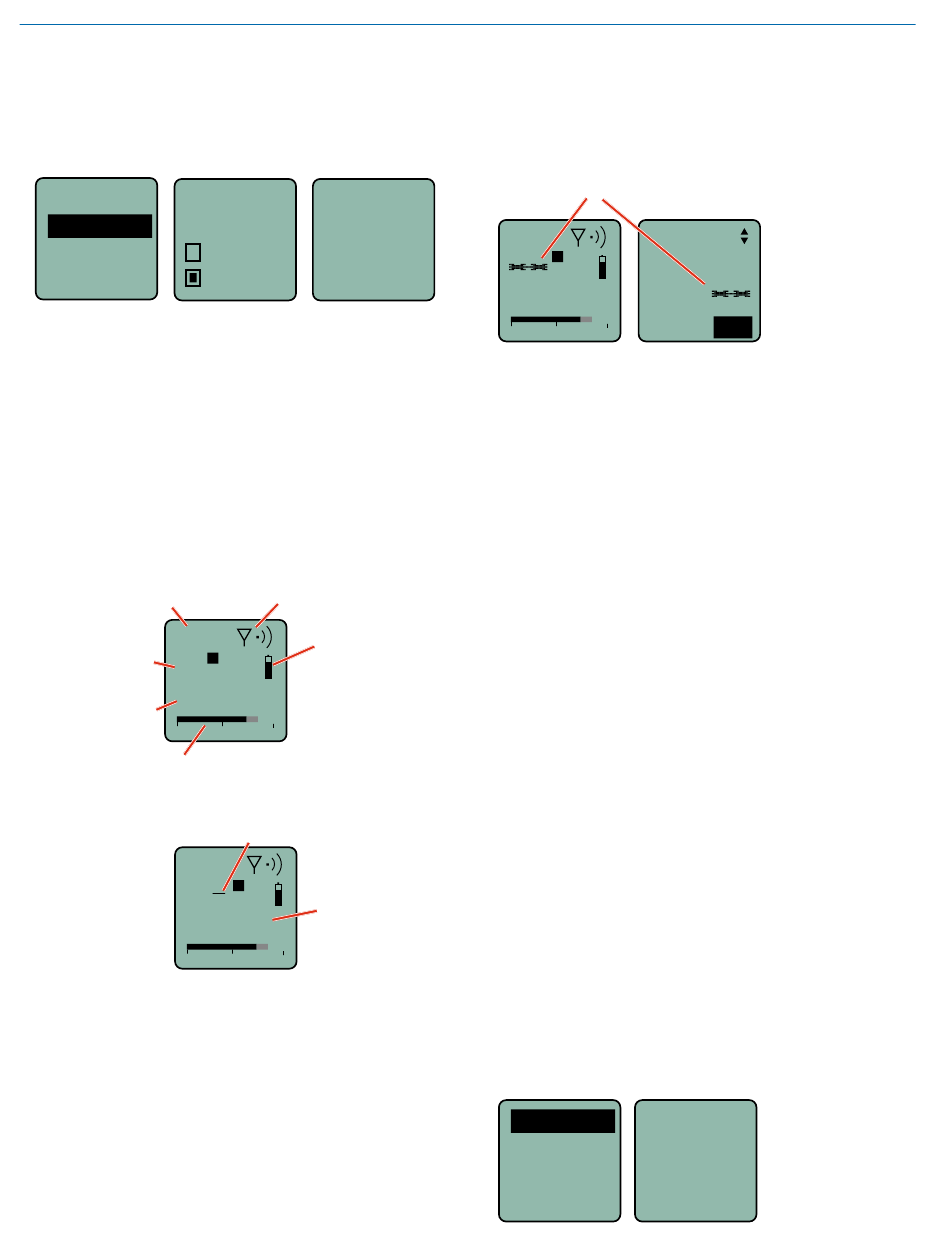

Main Window Indicators

The Main Window displays the band number, Standby
or Operating mode, operating frequency, audio level,
battery status and programmable switch function. When
the frequency step size is set at 100 kHz, the LCD will
look like the following.
Block number
b 470
Frequency
2C
(hex number)
474.500
Frequency (MHz)
-40
Audio level
When the frequency step size is set to 25 kHz, the hex
number will appear smaller and may include a fraction.
b 470
1/4 = .025 MHz
2C
1/2 = .050 MHz
474.525
3/4 = .075 MHz
-40
10
LOCKED
No
(menu to
Yes
unlock)
Operating mode
Battery status
-20 0
Fraction
Note that the
1
frequency has
4
increased by 25
kHz from the upper
example.
-20 0
Changing the step size never changes the frequency.
It only changes the way the user interface works. If the
frequency is set to a fractional increment between even
100 kHz steps and the step size is changed to 100 kHz,
the hex code will be replaced by two asterisks on the
main screen and the frequency screen.
Frequency set to fractional 25 kHz step,
but step size changed to 100 kHz.
b 19
Freq.
494.525
-40 -20 0

Connecting the Signal Source

Microphones, line level audio sources and instruments
can be used with the transmitter. Refer to the section
entitled Input Jack Wiring for Different Sources for
details on the correct wiring for line level sources and
microphones to take full advantage of the Servo Bias
circuitry.

Using Line Level and Instrument Inputs

Line level signals can be sent to the input with the
proper wiring. Refer to the section on Input Jack Wir-
ing for Different Sources for details.

Turning Control Panel LEDs ON/OFF

From the main menu screen, a quick press of the UP
arrow button turns the control panel LEDs on. A quick
press of the DOWN arrow button turns them off. The
buttons will be disabled if the LOCKED option is select-
ed in the Power Button menu.
The control panel LEDs can also be turned on and off
with the LED Off option in the Power Button menu.

Helpful Features on Receivers

To aid in finding clear frequencies, several Lectrosonics
receivers offer a SmartTune feature that scans the tun-
ing range of the receiver and displays a graphical report
that shows where RF signals are present at different
levels, and areas where there is little or no RF energy
present. The software then automatically selects the
best channel for operation.
Lectrosonics receivers equipped with an IR Sync func-
tion allow the receiver to set frequency, step size and
compatibility modes on the transmitter via an infrared
link between the two units.

Files

Files Files
0007A000
Format
0006A000
0005A000
Record
0004A000
0003A000
Gain
0002A000
b 19
494.525
Select recorded
files on
microSDHC
memory card.
