SMWB/E07 Series

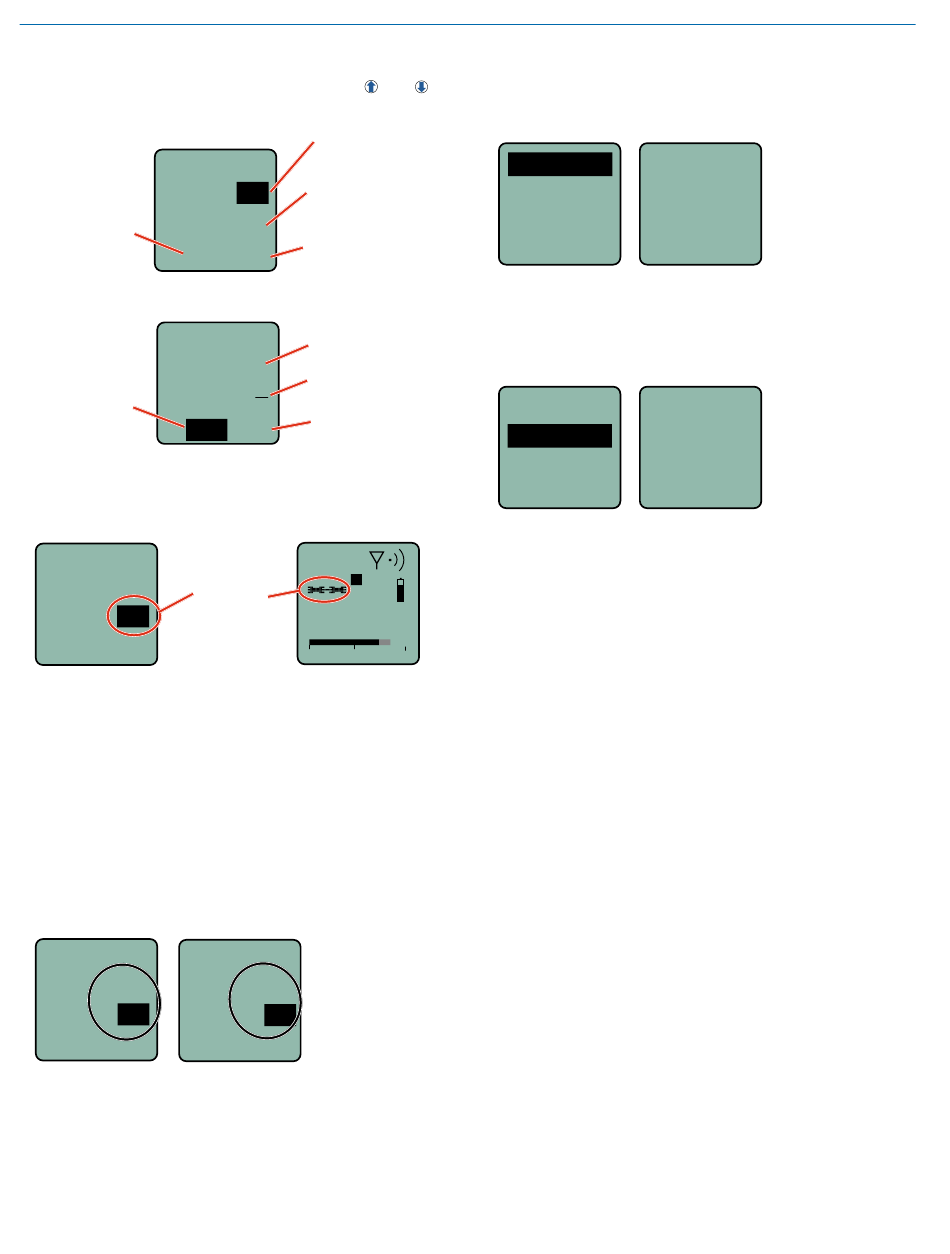

Selecting Frequency Using Two Buttons

Hold the MENU/SEL button in, then use the
arrow buttons for alternate increments.
100 kHz Mode
Freq.
10 MHz steps
494.500
25 kHz Mode
Freq.
10 MHz steps
494.525
If the Step Size is 25 kHz with the frequency set be-
tween even 100 kHz steps and the Step Size is then
changed to 100 kHz, the mismatch will cause the hex
code to display as two asterisks.
Freq.
Step Size and
b 19
Frequency
mismatch
**
494.500

About Overlapping Frequency Bands

When two frequency bands overlap, it is possible to
select the same frequency at the upper end of one and
the lower end of the other. While the frequency will be
the same, the pilot tones will be different, as indicated
by the hex codes that appear.
In the following examples, the frequency is set to
494.500 MHz, but one is in band 470 and the other in
band 19. This is done intentionally to maintain compat-
ibility with receivers that tune across a single band. The
band number and hex code must match the receiver to
enable the correct pilot tone.
Freq.
Freq.
b 19
51
494.500
12
and
1 block steps
1.6 MHz steps to
b 19
nearest 100 kHz
channel
51
100 kHz steps
to next 100 kHz
channel
1 block steps
b 19
1.6 MHz steps
51 1
4
25 kHz steps
b 19
494.525
-40 -20
Make sure the
b470
band number and
hex code match
F4
the receiver setting
494.500

Selecting the Low Frequency Roll-off

Low frequency audio content may be desirable or
distracting, so the point at which the roll-off takes place
can be set to 35, 50, 70, 100, 120 and 150 Hz.
Rolloff
Compat
StepSiz
Phase

Selecting the Compatibility (Compat) Mode

When used with a Lectrosonics Digital Hybrid Wireless
receiver, the best audio quality will be achieved with the
system set to the Hybrid compatibility mode.
Rolloff
Compat
StepSiz
Phase
Use the UP and DOWN arrows to select the desired
mode, then press the BACK button twice to return to the
Main Window.
Compatibility modes are as follows:
Receiver Models
• Digital Hybrid Wireless
0
• Mode 3:*
• IFB Series:
Modes 3 works with certain non-Lectrosonics models.
Contact the factory for details.
Rolloff
70 Hz
Compat
NU Hybr
LCD menu item
: NU Hybr
®
Mode 3
IFB Mode
